WAW-2000W Micro-computer Servo Univesal Testing Machine

WAW-2000W Micro-computer Servo Univesal Testing Machine thumbnail-1
WAW-2000W Micro-computer Servo Univesal Testing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
jingyuan
Model Number:
WAW-2000W
Contact Supplier Request Quote Chat Now
Jinhua East Instrument International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name jingyuan
Model Number WAW-2000W
Power Hydraulic
Usage Universal Testing Machine

Specifications

Tensile compression
flexure shear peel tear
and other tests of nonmetallic
materials with servo valve control

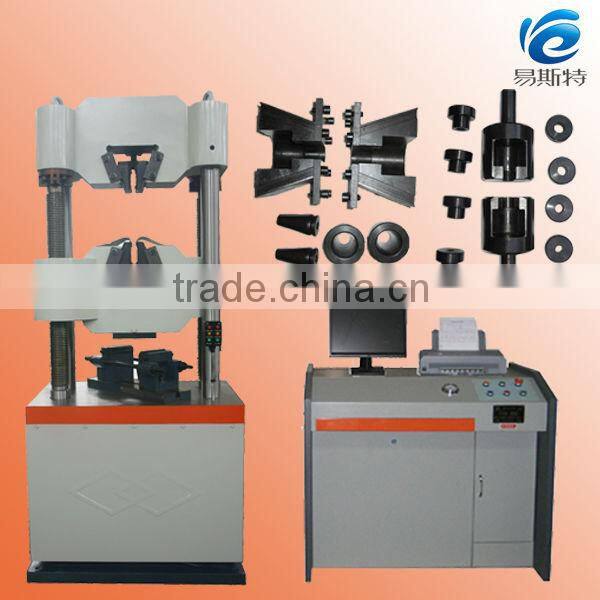

WAW-2000W Micro-computer servo univesal testing machine


Product Description





Capacity:     500kN-2000kN. Application: Tensile, compression, flexure, shear, peel, tear and other tests of nonmetallic materials with servo valve control. Features and use: 1. Dual test space, half-open grip, dual test space provides compression in lower space and tensile test in upper space. 2. Half-open hydraulic grips are easy to place specimens and have high rigidity. 3. Lower crosshead is driven by worm wheel with high stability. 4. Spoke shape load cell is connected with piston, which ensures high precision measurement. Technical Specification:

Mode
WAW-500W
WAW-600W
WAW-1000W
WAW-2000W
Max capacity
500
600
1000
2000
Accuracy
Class 0.5/1
Load range
1%-100% FS
Extension measurement range
1%-100% FS
Extension measurement accuracy
Within ±1%/±0.5%
Extension measurement resolution
1/300000 of Max. extension
Loading speed range
0.02%-2%FS/s
Space between columns(mm)
450
450
450
640
Max tensile space(mm)
760
760
800
950
Max compression space(mm)
700
700
700
780
Round specimen diameter(mm)
Φ10-Φ40
Φ10-Φ40
Φ15-Φ60
Φ15-Φ70
Optional flat specimen thickness(mm)
2-30
2-30
2-40
10-70
Compression platen(mm)
Φ150
Φ150
200X200
Φ240
Piston stroke speed
0-140mm/min
0-140mm/min
0-90mm/min
0-70mm/min
Piston travel(mm)
200
200
250
250
Main frame dimension(mm)
110X780x2500
1100X780X2500
1250X950X2800
1420X980X2800
Oil station dimension(mm)
1250X650X900
Power supply(kW)
6(AC380V 50Hz)
8(AC380V 50Hz)
11(AC380V 50Hz)
Weight(Kg)
2500
3000
4000
7800





WAW-2000W Micro-computer servo univesal testing machineWAW-2000W Micro-computer servo univesal testing machineWAW-2000W Micro-computer servo univesal testing machineWAW-2000W Micro-computer servo univesal testing machine
