Specifications
1 Direct SP motor 12000/15000Rpm2 Cutting feed :48m/min
3 THK linner guideway FAG/NSK bearing

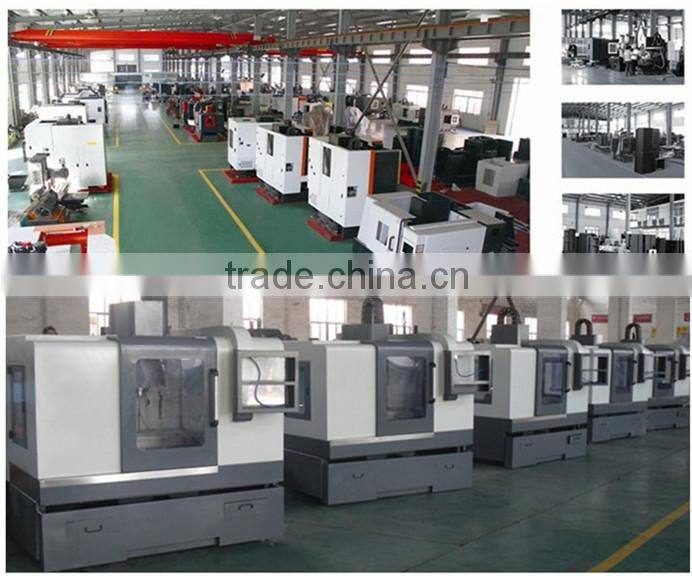

We, Tengzhou City Good CNC Machine Co., Ltd. are professional supplier and experienced manufacturer CNC mill machine in China, especially specialize in developing and manufacturing CNC milling machines.
Products: Mini CNC Milling Machine, Machining Centers, Machining Tools DIY CNC Low Cost CNC Small CNC Desktop CNC Milling CNC Benctop CNC CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine.
1. Able to mill steel, copper, aluminum, wood and plastic.
2. Taiwan spindle, Taiwan linear guide ways.
3. Complete machine: standard with external hand wheel tri color lights lubrication, coolant system.
4. Complete machine standard with RS232 interface.

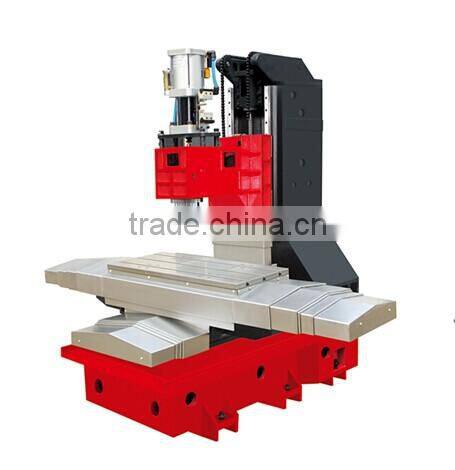

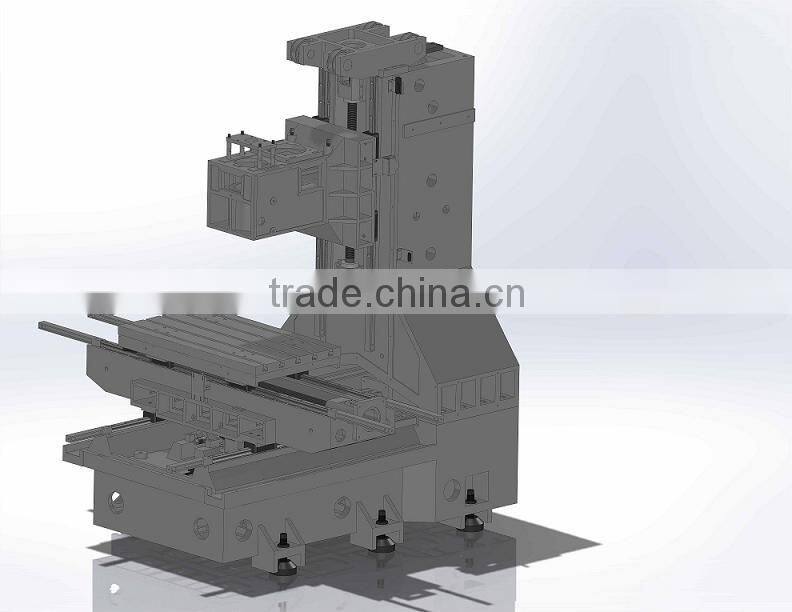

5. Frame is with lubrication, without controller, without any electrical parts.
Travel | ||
X-axis |
900mm |
|
Y-axis |
500mm |
|
Z-axis |
500mm |
|
Spindle nose to table |
120-620mm |
|
Spindle center to column |
576mm |
|
Feed | ||
X Rapid feed |
48m/min |
|
Y Rapid feed |
48m/min |
|
Z Rapid feed |
48m/min |
|
Cutting speed |
1-10m/min |
|
Suggest motor |
X:20N.m Y:20 N.m Z:20 N.m |
|
Work table | ||
Work table size |
1000×520mm |
|
Max. Load |
500Kg |
|
Work table to ground |
About950mm |
|
T-slot |
5×18×100mm |
|
Spindle | ||
|
Belt |
belt |
Max spindle speed |
8000 rpm |
10000 rpm |
Spindle nose |
BT40 |
BT40 |
Suggest motor |
11KW |
11KW |
Accuracy | ||
Positioning accuracy |
±0.005/300mm |
|
Repeating accuracy |
±0.003mm |
|
others | ||
Weight |
About 4000Kg |
|
Machine size |
About2700×2300×2700mm |
|
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
We will provide GOOD After-sellingService for our clients after shipment. It's basis of establishing long-term cooperation with our foreign clients.
