Specifications
1 able to mill steel, copper,aluminum, wood , and plastic2 TaiWan spindle
3 XYZ servo motor
4 able to heavy cutting

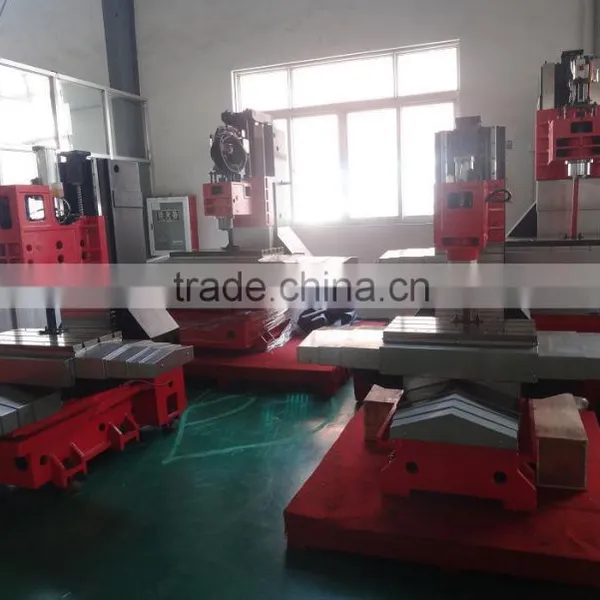

The product V4 use the spindle made in TaiWan which can ensure the high precision and high strength,the superior quality casting and herringbone column can ensure the high stability.V4 is mainly applicable to processing board,plate,shell mold and small complex parts.The specification as follows:
TRAVEL | ||
X-AXIS |
460mm |
|
Y-AXIS |
360mm |
|
Z-AXIS |
460mm |
|
Spindle nose to table |
80-540mm |
|
Spindle axis to column |
442mm |
|
FEED | ||
X rapid feed speed |
48m/min |
|
Y rapid feed speed |
48m/min |
|
Z rapid feed speed |
48m/min |
|
Cutting feed |
1-10m/min |
|
XYZ servo motor torque |
X:6N.m Y:6 N.m Z:10 N.m |
|
Work table | ||
Work table size |
700×360mm |
|
Max.load |
200Kg |
|
Working from the ground surface height |
Around 750mm |
|
T-slot |
3×14×105mm |
|
spindle | ||
optional |
Belt type |
Direct type |
speed |
8000 rpm |
12000 rpm |
Spindle taper |
BT30 |
BT30 |
Motor power |
3.7/5.5KW |
3.7/5.5KW |
accuracy | ||
Positioning accuracy (JIS standard ) |
±0.005/300mm |
|
Repeat positioning accuracy(JIS standard) |
±0.003mm |
|
other | ||
Frame weight |
around1800Kg |
|
Machine overall dimension |
around1800×1700×2200mm |
|
1.superior quality resin sand casting ,after aging treatment,never deform.
2.Taiwan spindle,Taiwan linear guide way.C3 class ball screw.
3.Taiwan pneumatic cylinder.
4.Taiwan precision nut.
5.stainless steel inner cover
6.automatic lubrication system
7.leveling bolts and blocks
8.12months warranty
FAQ:
A) What's your minmun order quantity?
Just one set.
B) Could you please tell me your payment terms of your company?
T/T ,30% as down payment,70% should pay before delivery.
c) Could you please tell me the warranty?
one year.
d) Do you have CE or any other certificate?
We have ISO9001
E) Could your company send the technical person to our company and direct our workers?
Yes,of course.
F) Are you a trader or manufacturer?
We are one of the most famous manufactures in China.

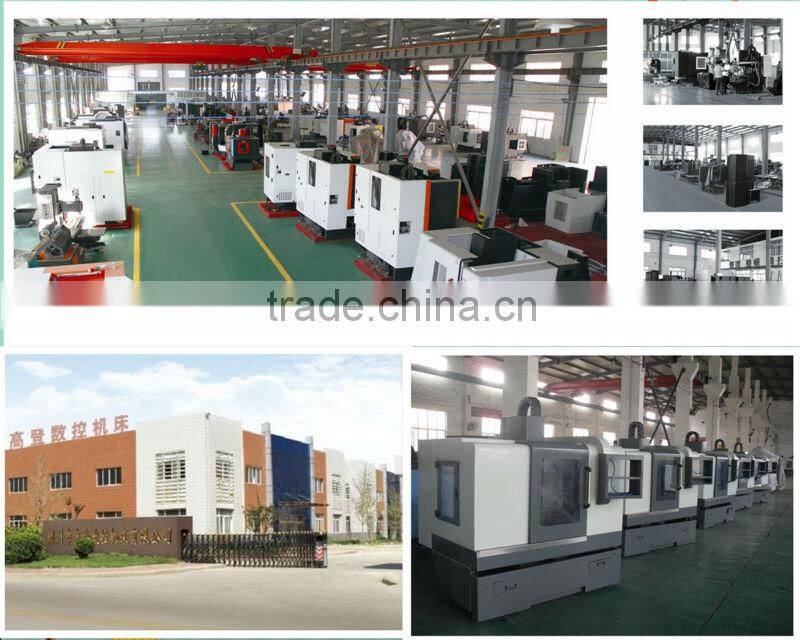

Company profiles:
We Good CNC machine company is a professional supplier and experienced manufacture of CNC machine in China,our company has the ISO9000 authorization,has the right to import and export,it's a provincial-level high-tech enterprise owing 18patented technology in terms of machine's external appearance design,utility models and so on.
We Good CNC take great importace into innovation ,with talent team in research and technology,we are confident to offer you best service and best CNC products,and we are proud of providing you best technique support in CNC machinery.we think the quality is the soul of an enterprise,therefore we always put the quality as the first.all products have to pass strict inspection.
