Specifications

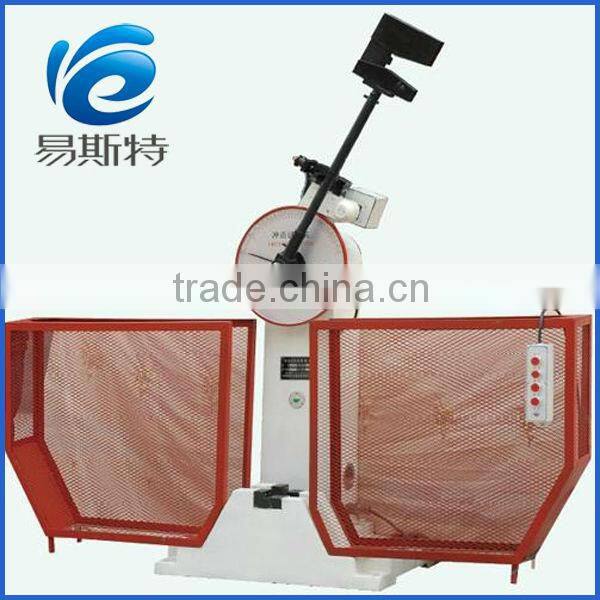

JBS-300B impact testing machine
JBS-500/300B
specailfications : 1,impact energy :250J/500J
2,pendulum bob rise degree before impact :150°
3,the distance between sample center and pendulum shaft center:800mm;
4,impact speed:
5.4m/s; 5,the span of specimen supports:40mm;
6, radius of specimen support:1-1.5mm;
7,impact blade radius of rounded angle:2.25mm;
8,jaw supporting surface obliquity:0°;
9,impact angular :30°;
10,thickness:16mm;
11,impact constant :250J 133.9746N.m 500J267 .9492N.m
12,photoelectric encoder:1 pc
13,resolution:0.1°
14,calibrate sample :01 pc(V type)
15,protective screen
16,net weight :600kg;
17,packing dimension :(L×W×H) 2224×600×1450
18,power supply:380V±10%50Hz.
,accessories:
1,main body:1 set
2,pendulum:250J,500J
3,photoelectric encoder:1 set
4,control system:01 set
5,protective screen:01 set
