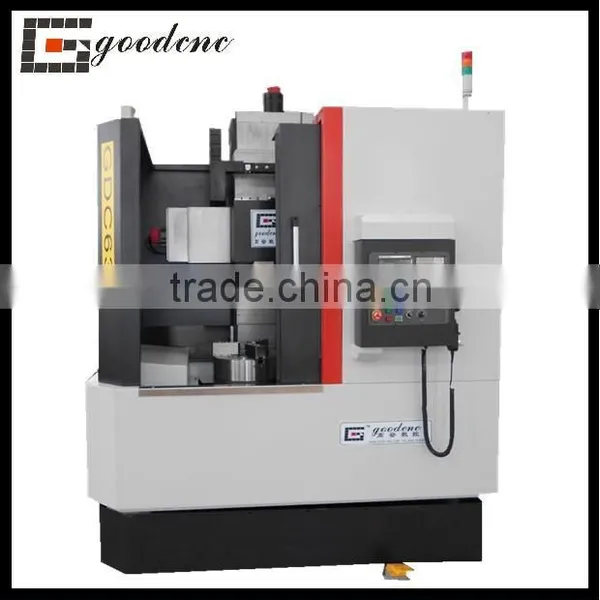

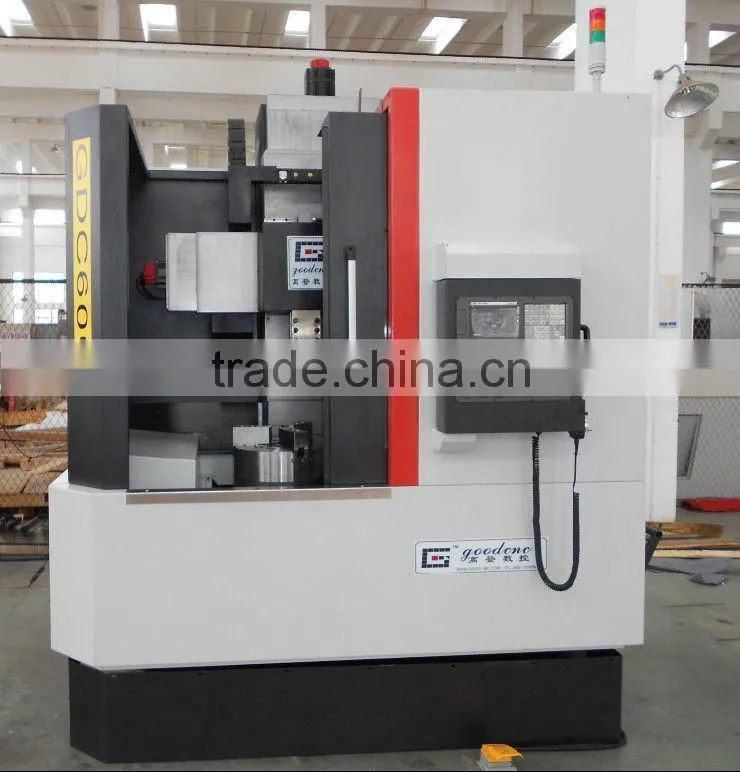

CNC Vertical Lathe Machine(GDC600/900)

Name: CNC Vertical Lathe Machine(GDC600/900)
Brand: GOOD
SKU: 111604345

US$ 10,000 - 12,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Tengzhou City Good CNC Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 660/990

Place of Origin Shandong, China

Brand Name GOOD

Model Number GDC600

Voltage 380V

Power(W) KW

Dimension(L*W*H) 2150x1950x2850

Weight 5T

Certification ISO9001

After-sales Service Provided Overseas service center available

Specifications

1.CNC Vertical Lathe Machine
2.Max. Turning Diameter: 660mm
3.Gang Type or Turret
4.Manual chunk or Hydraulic Chunk

Product Description

CNC Vertical Lathe

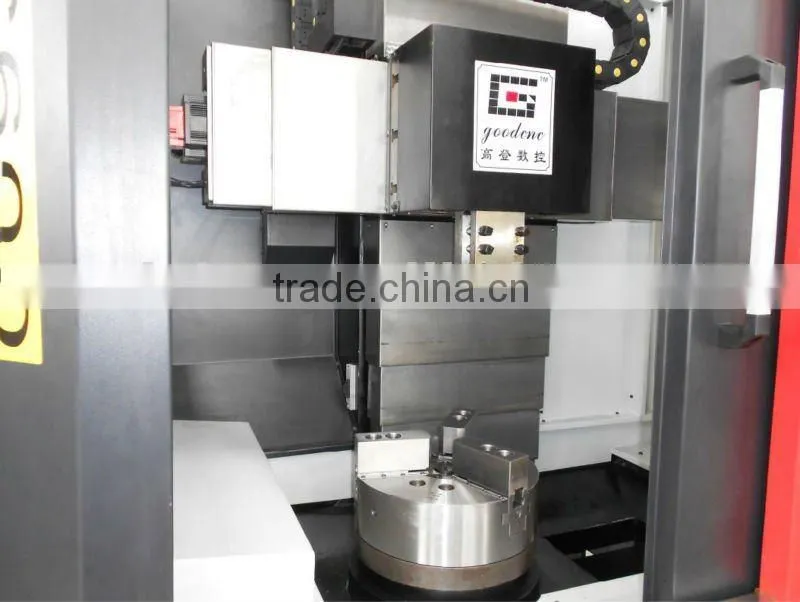

Electric Turret or Gang type

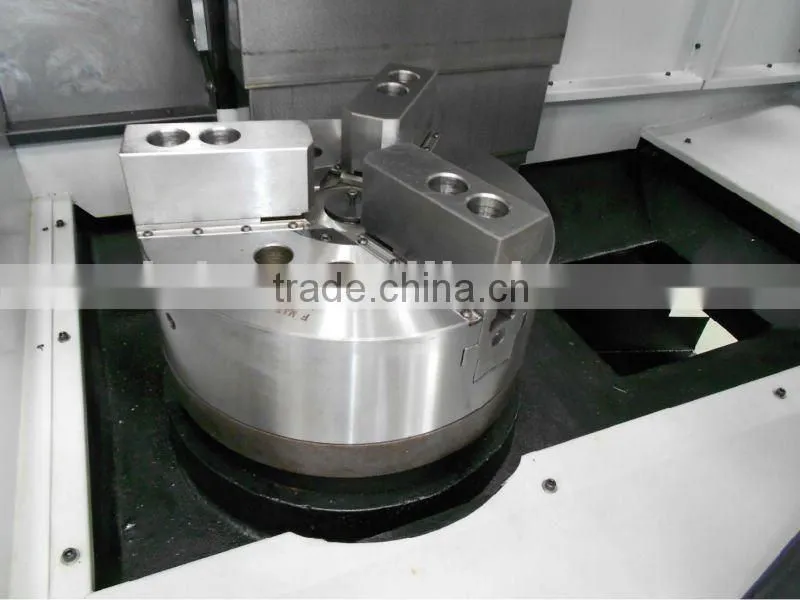

Manual or Hydraulic Chunk

Cooler Pump

Chips conveyor

*CNC Vertical Lathe*	*Model*
SPECIFICATION	GDC600	GDC900
Max.Turning Diameter(mm)	660	900
Worktable Diameter(mm)	500	600
Spindle Speed	100-650	100-650
Cutting Feed Rate(mm/min)	0.1-1000	0.1-1000
Turret Vertical Moving Distance(mm)	600	600
Turret Horizontal Moving Distance(mm)	420	520
Longitudinal Fast Moving Speed(mm/min)	4000	4000
Horizontal Fast Moving Speed(mm/min)	6000	6000
Type of Turret	Gang Type	Gang Type
Arbor Section(mm)	30x30	30x30
Positioning Accuracy(mm)	X/Z0.015/0.02	X/Z0.015/0.02
Repeatability Positioning Accuracy(mm)	0.012	0.012
Main Motor(kw)	11/15	11/15
Dimension(mm)	2150x1950x2850	2450X2150X2850
CNC Controller	GSK;KND
