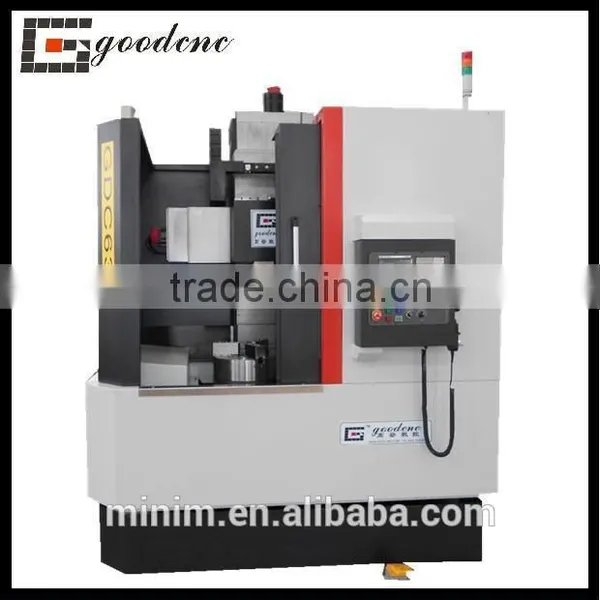

directly factory exporting competitive price GDC900 cnc machine center
| SPECIFICATIONS | UNIT | GDC630 | GDC900 |
| max. turning diameter of the machine | mm | 660 | 900 |
| max. cutting diameter | mm | 650 | 900 |
| diameter of the worktable | mm | 500 | 600 |
| number of spindle speeds | step | 80-500 | 80-350 |
| cutting feedrate | mm/min | 0.1-1000 | 0.1-1000 |
| turret vertical moving distance | mm | 650 | 650 |
| turret level of mobile distance | mm | 420 | 520 |
| verrtical fast shift speed | mm/min | 4000 | 4000 |
| horizontal fast shift speed | mm/min | 6000 | 6000 |
| turret in the form | electric | ||
| arbor section | mmxmm | 25x25 | 32x32 |
| positioning repeatability | mm | 0.012 | 0.012 |
| positioning accuracy | mm | x/z0.012/0.02 | x/z0.015/0.02 |
| power of main motor | kw | 15 | 17 |
| overall dimensions of machine | mm | 2150x1950x2850 | 2450x2150x2950 |
| machine weight | T | 5 | 5.7 |

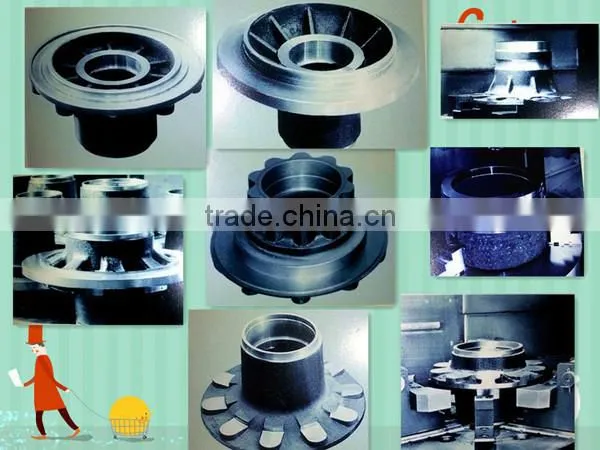

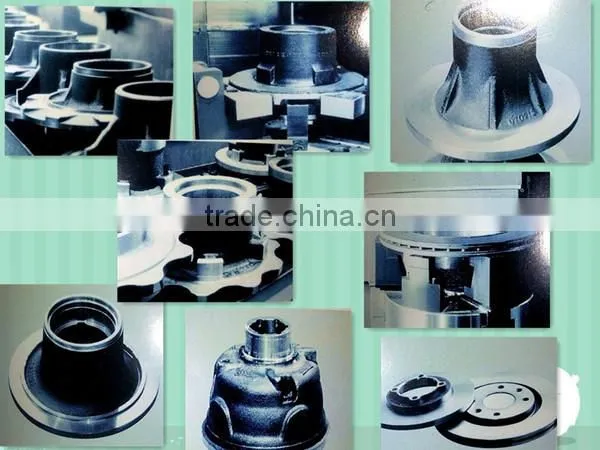

This machine can be used for processing following workpiece
1. Standard export package : the machine is put in wooden case then be loaded on pallet .
2. Size :2150x1950x2850mm
GOOD CNC CO.,LTD is licensed manufacture by MIM TECHNOLOGY CO.,LTD in Taiwan. We have obtained ISO9001 certificate and we are professional CNC machine manufacture who owns GOOD CNC and Lonpon brands . Also we are cooperator with Taizheng Unin , Taizheng 4S shop and strategic partners .

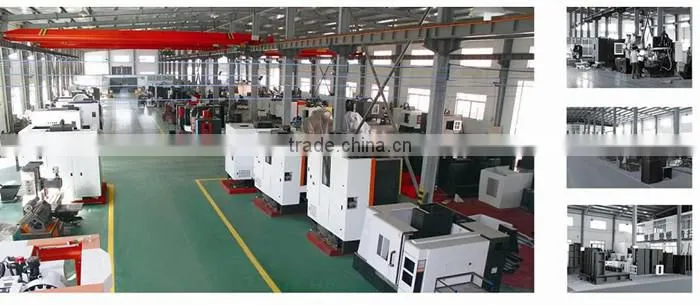

GOOD cnc company owns 10000 square meters of high tech product development base , with professional and high tech strength , professional production of high precision cnc machines , the company brought together a group of machine design,process,assembly professional workers . Through absorption the essence of making CNC machines from Taiwan and Japan , with many years experience , and mechanical processing equipments are all made by advanced CNC machine tools , and all of key precision parts are original import products from Taiwan or other countries . All machines made by GOOD CNC Machine are with high performance and competitive price , and we have export machines to all over the world more than 15 years .
Main product :
2216, 3222, 3227, 4227 Gantry machine, LV850, LV1060,HV950,HV1160,V5,V4 vertical machining center and frames . Economic VMC series , VMC1050L,850L,650L,550L,460L,420L,330L,650,550. Integrated GDC vertical lathe series,GD630,900,1200 . Our machines are widely used in scientific research institutes, teaching instruments , production and auto parts production .
Good cnc machine co.,ltd will keep the theme of “high quality machines , high perfect services” , promote marketing concept“recommend suitable machines , not expensive machines” . Insist on quality policy “honesty , long term business , earnest , excellence ” . Sincerely develop with our clients and win success together .
Our company has obtained ISO9001 certification
We sincerely welcome you to visit our factory!
Any further information,please feel free to contact us!
Your inquiry are sure to get our best and prompt attention
