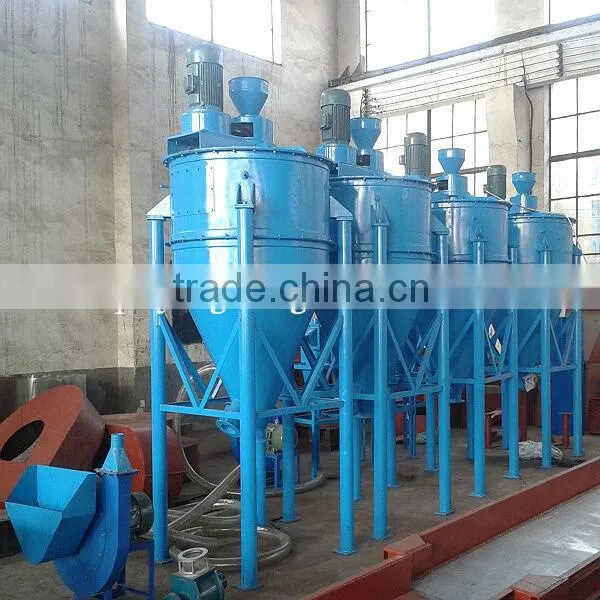

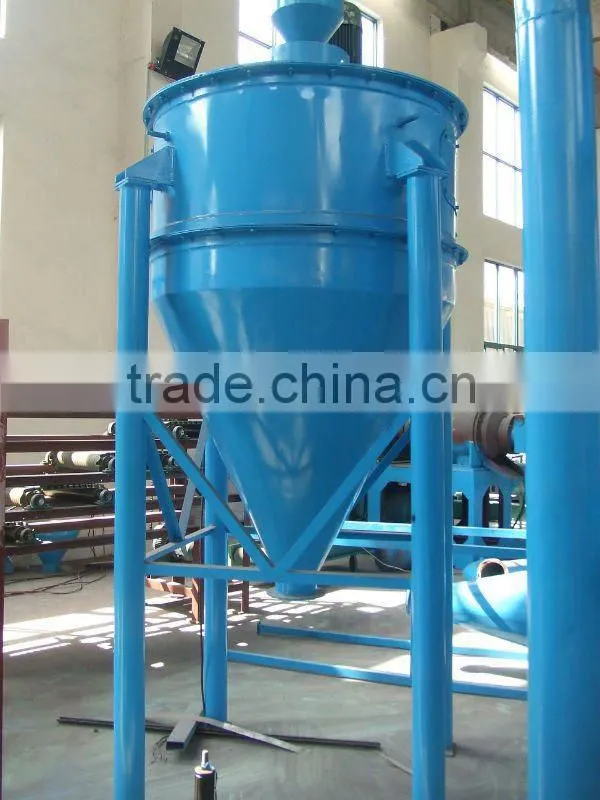

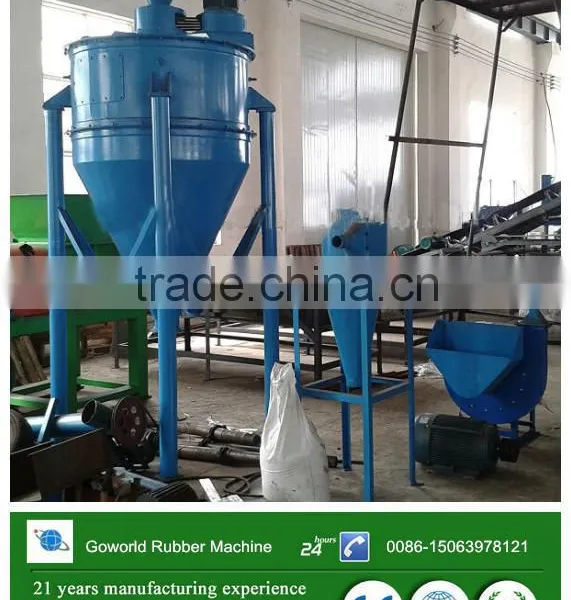

Tire fiber separator machine / waste tyre recycling machine
Introduction:
FLQ Fiber & Rubber Granule Separator uses high-speed main shaft to drive selector disk for scattering material. The negative pressure ,which reated by exhaustor in sealed separator body, separates material into light and heavy parts. That is separating the fiber and rubber granule. Its main components:motor,V-belt,V-belt wheel,hopper, bearing housing, rotor, main shaft, selector disk, adjustment ring, separator body, bearing etc.
Features:
1.High separation efficiency, low energy consumption, wide application.
2.Using the air cycle automatic system, mixed with both separation and collection.
3.Long service life and easy maintenance.
4.No pollution, no dust, low noise, operating in the condition of seal and negative pressure
Technology parameter:
Model |
XFJ-1100 |
capacity |
200-500kg/h |
Diameter of impeller |
1100mm |
Number of lamina |
8 pieces |
Rotate speed of main axis |
400r/min |
Motor power |
5.5 kw |
Dimension |
1.5x1.5x6.5m (L*W*H |
Following is tire ring cutter , it is used to cut the tire debead off for next step
Following is tire strip cutter , it is widely used to cut the tire sidewall into long strips
Following is tire block cutter , it is used to cut the tire strips into blocks with 40*40mm
Following is bead wire separator , it is used to separate the steel from the tire crown
Following is rubber crusher , it is used to make 5-28 mesh rubber powder

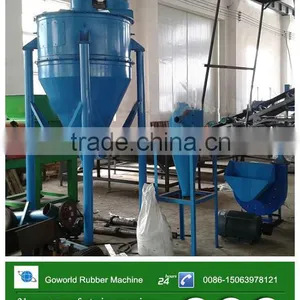

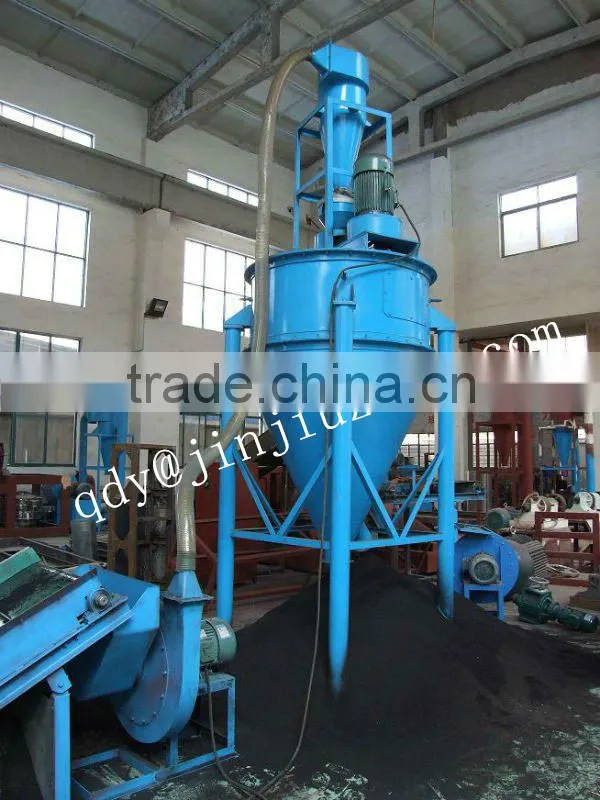

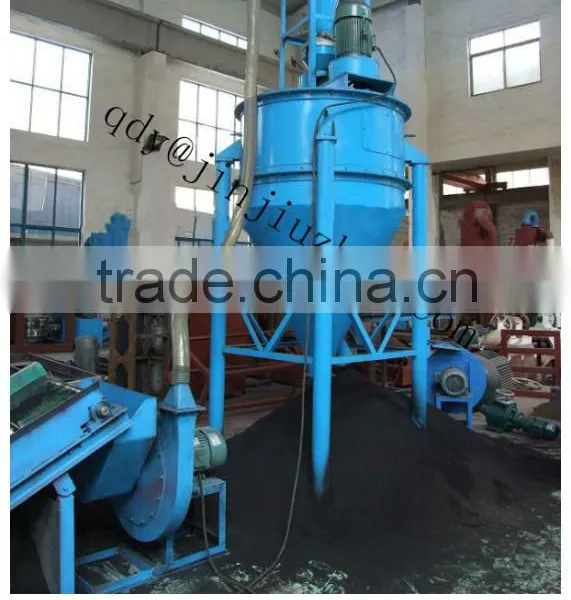

Following is fiber separator , it is used to separate the fiber from rubber powder
Following is rubber grinder , it is used to make 30-120 mesh rubber powder
1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer
2.supplier should send professional if required by customer
3.we will offer service for whole life of machine
Factory Brand---Qingdao Goworld Rubber Machine Co .,Ltd
Following is customer visiting showing
Following is certificate show
Following is contact information
