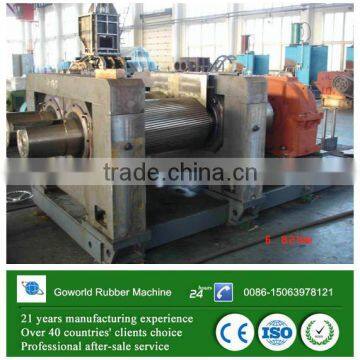

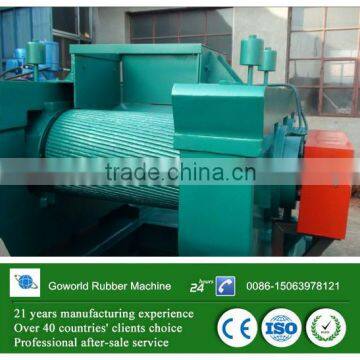

Tyre cracker machine / waste tire recycling system
It is mainly used for cracking crude rubber, used tyre scrap, fine breaking rubber black and waste collection. The rolls are made of chilled alloy cast iron with wear-resistant hard surface. The rear roll is grooved. The bored rolls can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload.
Following are machine features
Rolls :: Alloy Chilled Cast Iron rolls with grooved teeth with hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling.
Roll Clearance Adjusting Unit :NIP adjustment at two roller ends is done manually using two separate screws attached to the bearing housing body
Journal Bearing Housing : Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
Lubrication: Manual / Motorized Grease pump for lubrication of Anti Friction Roller Bearings fitted in dust sealed housing.
Stand Frame & Apron (Cap) : Heavy Duty Steel Casting / Steel Fabricated.
Base Frame : Common base frame, heavy duty Steel fabricated of Double Channel and MS plate accurately machined for fitment of auxiliary equipment.
Gearbox : Helical Reduction Gearbox Greaves/ Shanti make direct coupled with Motor and Pinion Drive Shaft
Electric Control Panel : Star Delta Electric operating panel with Voltmeter, Ampere meter Overload protection relay, 3 Phase Indicator and Emergency Stop Switch
Following is technical parameter for reference
Following is tire ring cutter , it is used to cut the tire debead off for next step
Following is tire strip cutter , it is widely used to cut the tire sidewall into long strips
Following is tire block cutter , it is used to cut the tire strips into blocks with 40*40mm
Following is bead wire separator , it is used to separate the steel from the tire crown
Following is rubber crusher , it is used to make 5-28 mesh rubber powder
Following is fiber separator , it is used to separate the fiber from rubber powder
Following is rubber grinder , it is used to make 30-120 mesh rubber powder
