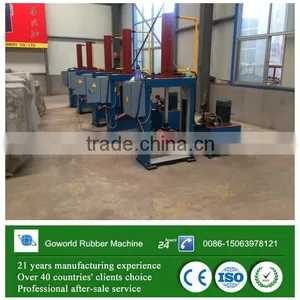

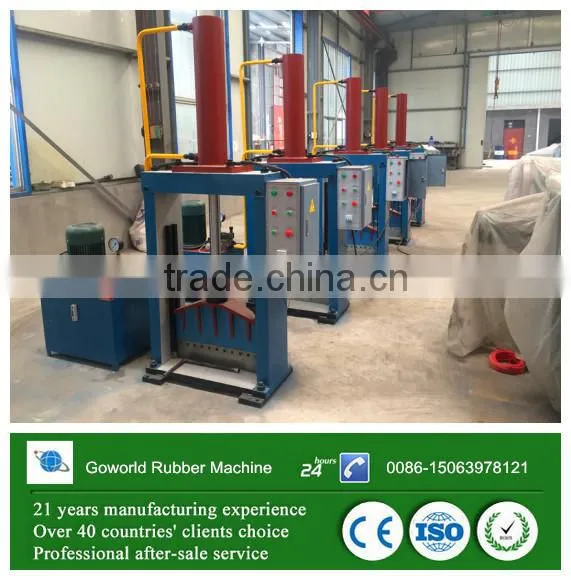

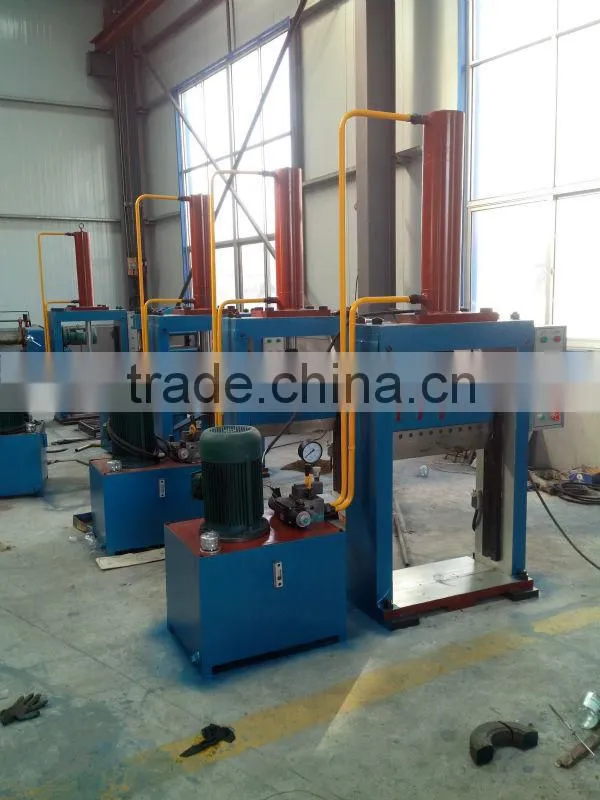

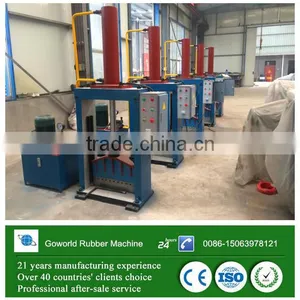

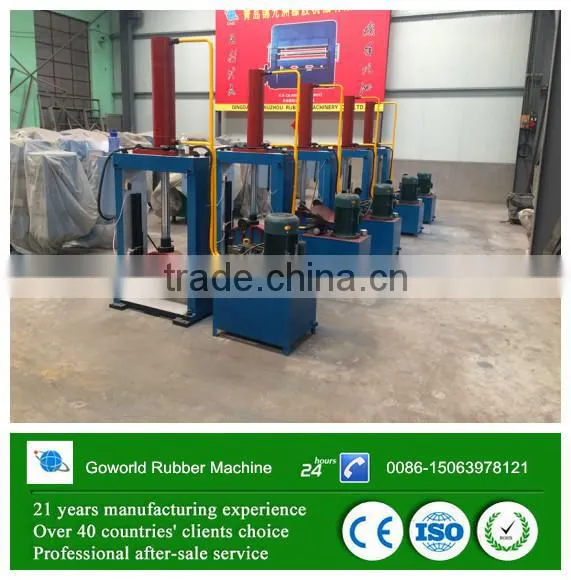

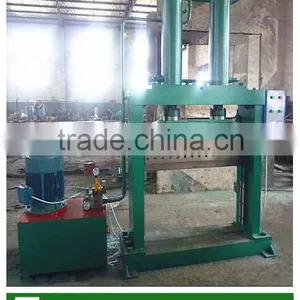

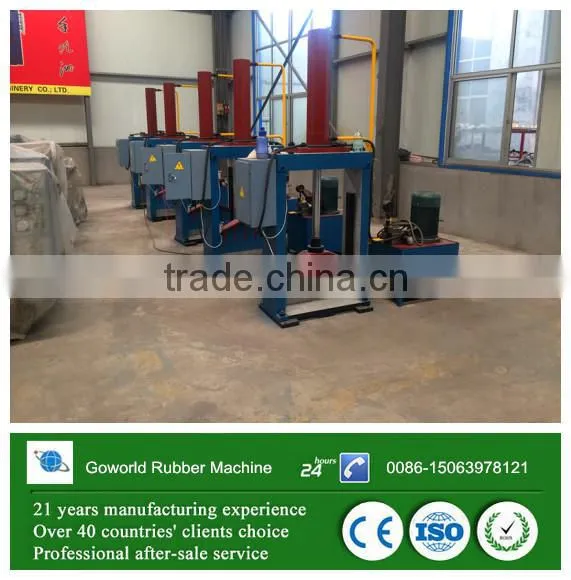

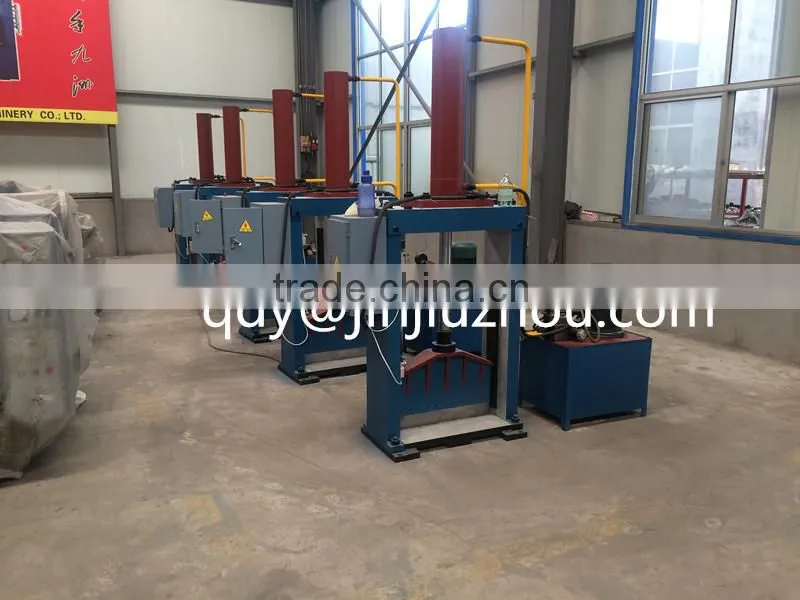

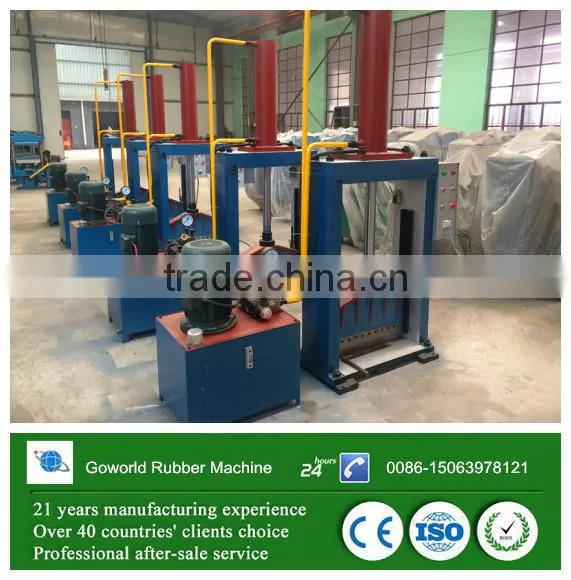

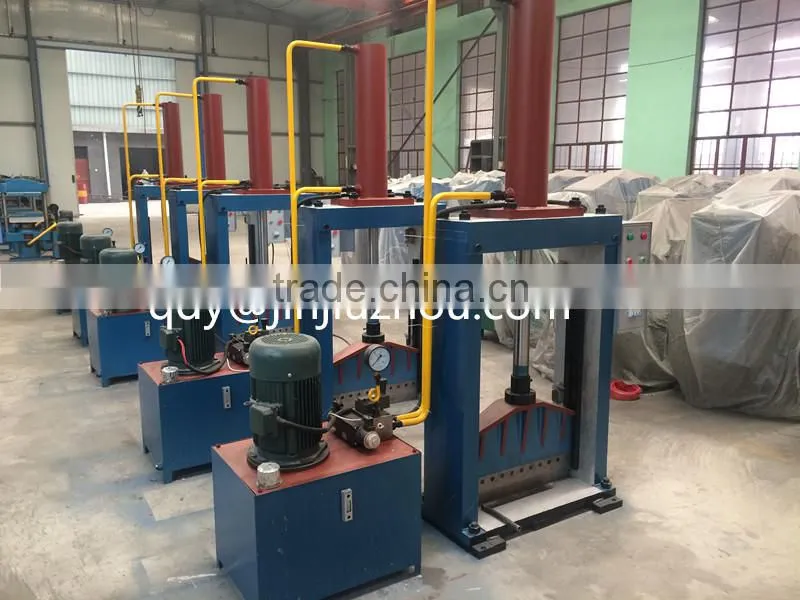

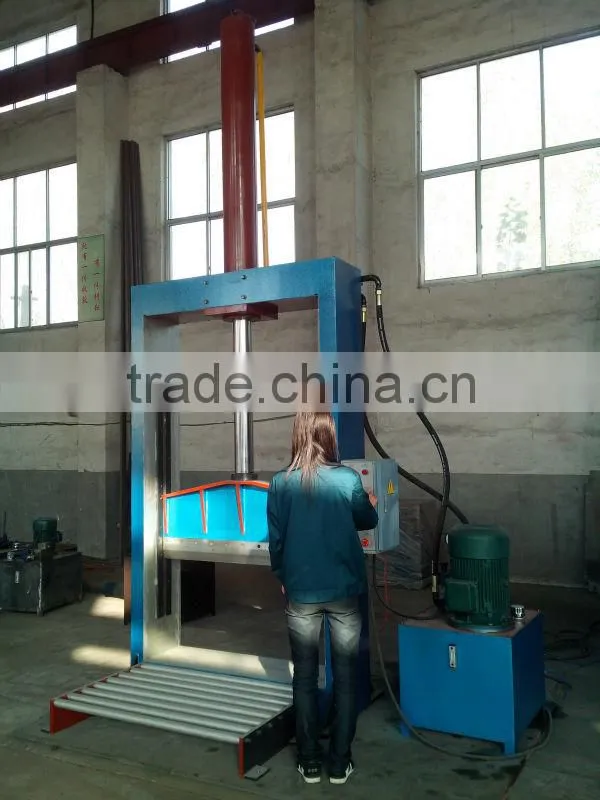

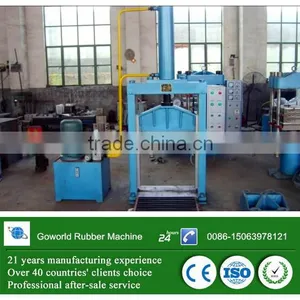

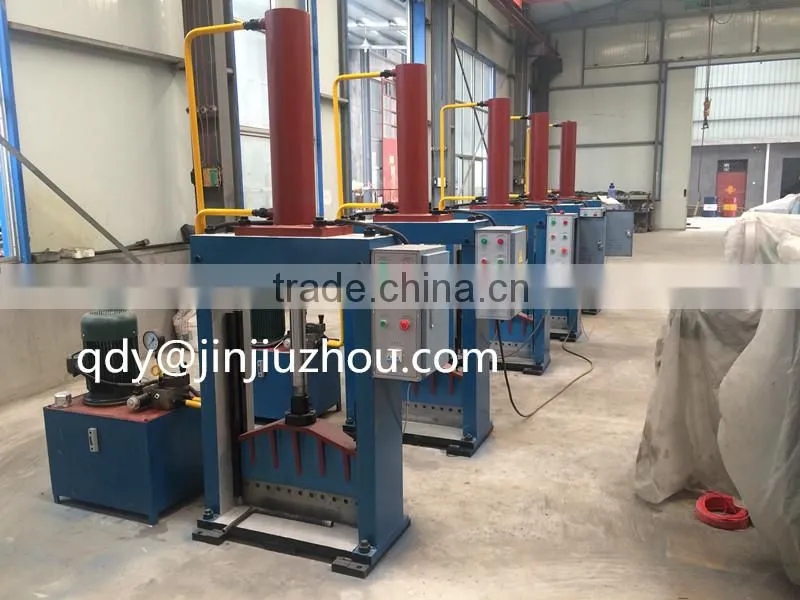

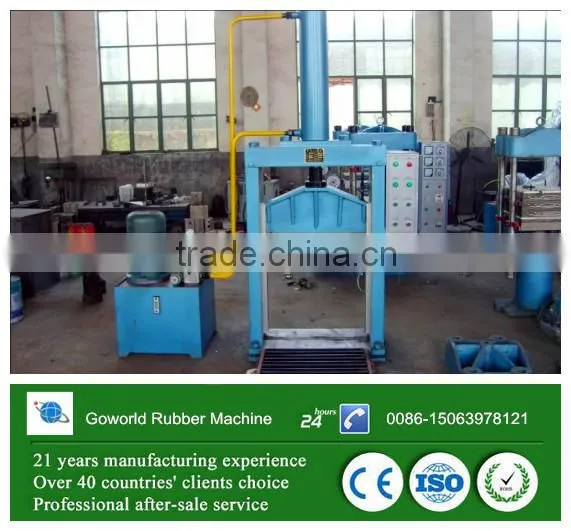

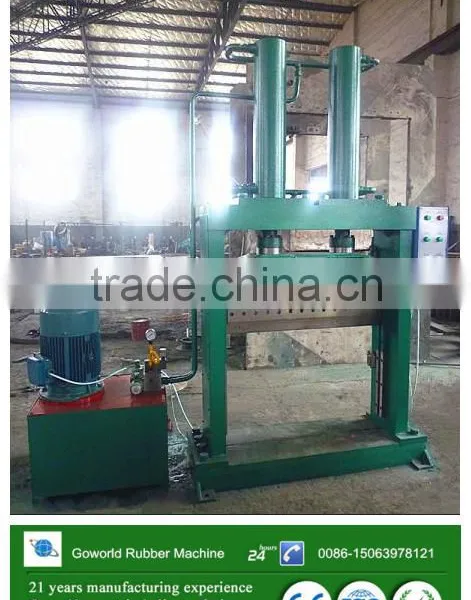

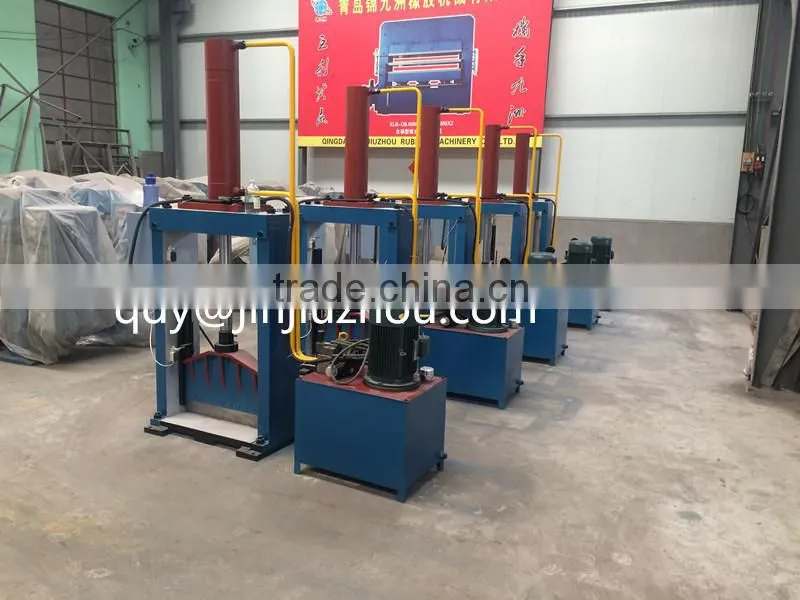

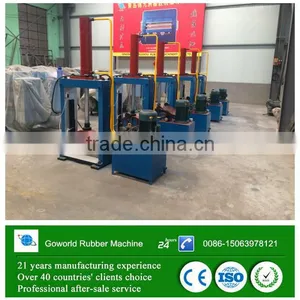

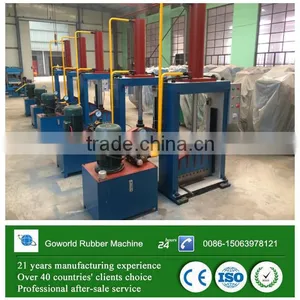

rubber guillotine cutter / hydraulic rubber cutting machine
Following is machine application
This guillotine rubber cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber
Following are features of rubber cutting machine

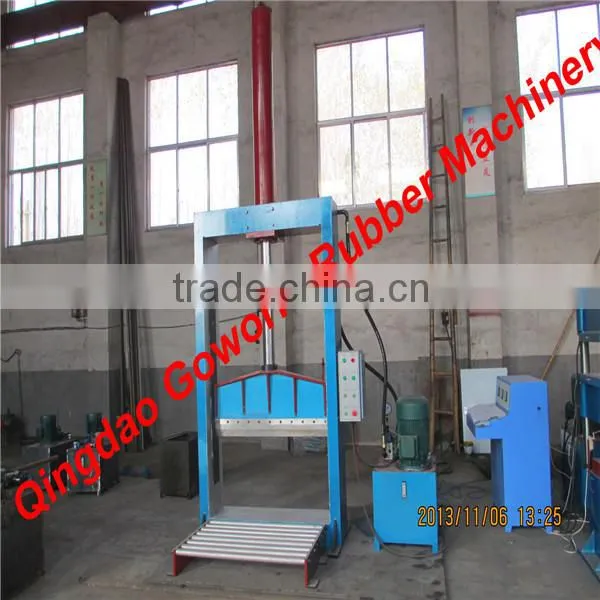

This guillotine rubber cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Following is Parameters for reference
Type |
XQL-8 |
XQL-16 |
Width(mm) |
660 |
1000 |
Stroke(mm) |
680 |
680 |
Diameter of the piston(mm) |
150 |
150 |
Time taken by stroke |
16-25 |
10-16 |
Power(KW) |
5.5 |
5.5 |
Overall dimension(LxWxH) |
1900x720x2580 |
2240x720x2580 |
Weight(kg) |
about 1500 |
about 2000 |
1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer
2.supplier should send professional if required by customer
3.we will offer service for whole life of machine
Factory Brand---Qingdao Go world Rubber Machine Co ., Ltd
