Specifications
Profesdsional manufacturer table/CNC router cutting OP1325S1.good rigidity,low inertia
2.dual motors
3.1300*2500mm
China CNC router machine for metal sheet engraving and cutting
1:The whole welding thick square steel tube
2:Reasonable working table design
3:Reasonable slope design
4:Japanese Panasonic motor servo driver
5:Taiwan made high-precision servo gear, rack and pinion
6:US made control system with Germany auto-layout software
7:Be applied to many kinds of materials
8:HYPERMAX power max series cutter machine and US original torch
9:Easy to operate
10:OEM is available
Machine parameter:
Processing range |
1300*2500mm |
Processing material |
Iron, Aluminum, Zinc Plating Board , white steel Board, Titanium |
Processing thickness |
(40A) 0.5-10mm (100A) 3-20mm (200A) 3-25mm |
Cutting speed |
0-8000mm/Min |
Power |
0.8KW-10.5KW |
Input voltage |
3-Phase 380V 50Hz |
File transfer mode |
USB interface |
Idling speed |
0-50M/Min |
ARC Mode |
non-contact ARC |
Color |
Optional |
QS |
ISO2000 |
OEM |
Available |
Software |
Wentai, Beihang Haier, ARTCAM, Type3 |
China CNC router machine for metal sheet engraving and cutting
1:The whole welding thick square steel tube with artificial aging processing frame can ensure the machine strong, rigidity without any distortion.

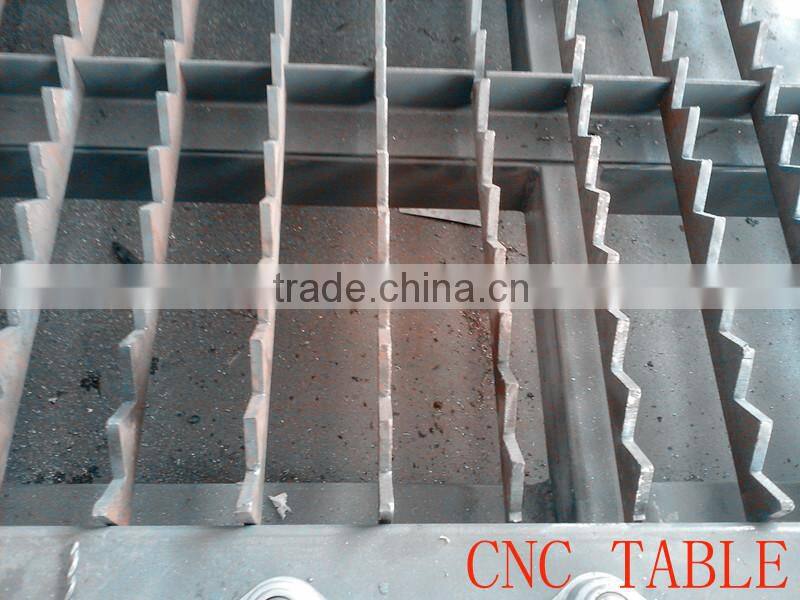

2:With reasonable working table design , vertical finishing steel plate working table covered with finishing catering iron mask, the machine can protect the vertical steel plate.
3:Reasonable slope design to ensure the processed work piece and debris to slide to side of the slops, it is very safety and convenience.
4:Adopted with Japanese Panasonic motor servo driver and Taiwan made high-precision servo gear, rack and pinion, the machine can ensure low noise, steady and precision performance.
5:Adopted with US made control system with Germany auto-layout software.
6:Equipped with HYPERMAX power max series cutter machine and US original torch.
7:Applications : metal parts cutting, thick abnormal metal plate cutting and welding processing

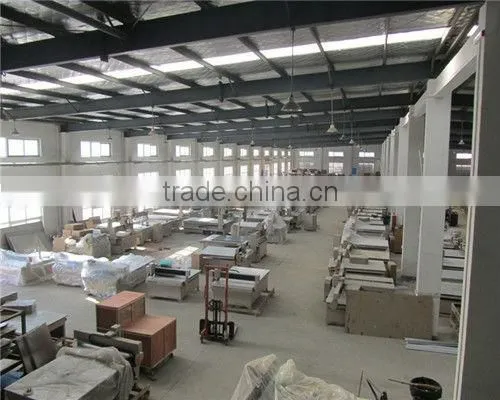

Company and workshop
Passinate teamwork:

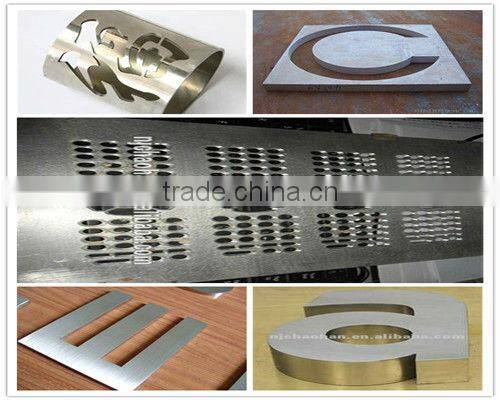

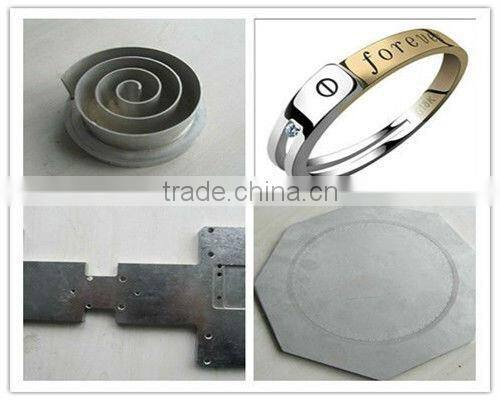

Sample shows:

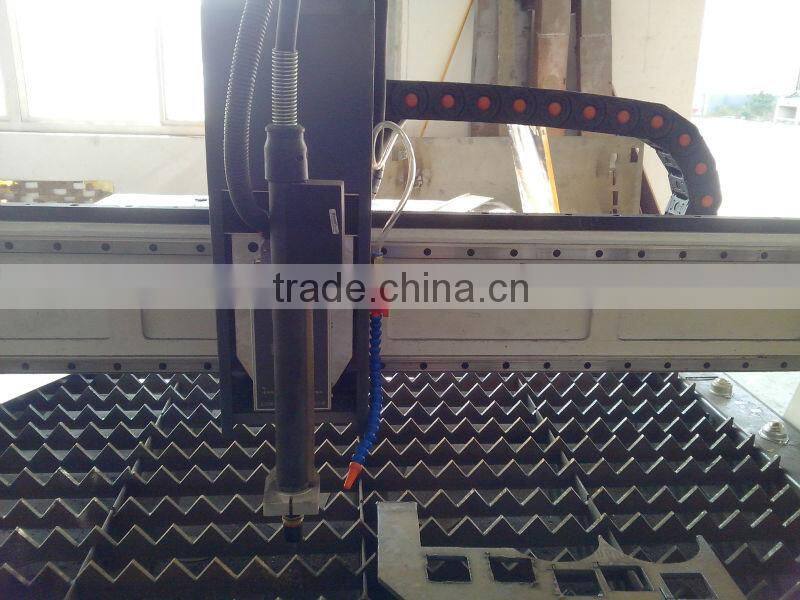

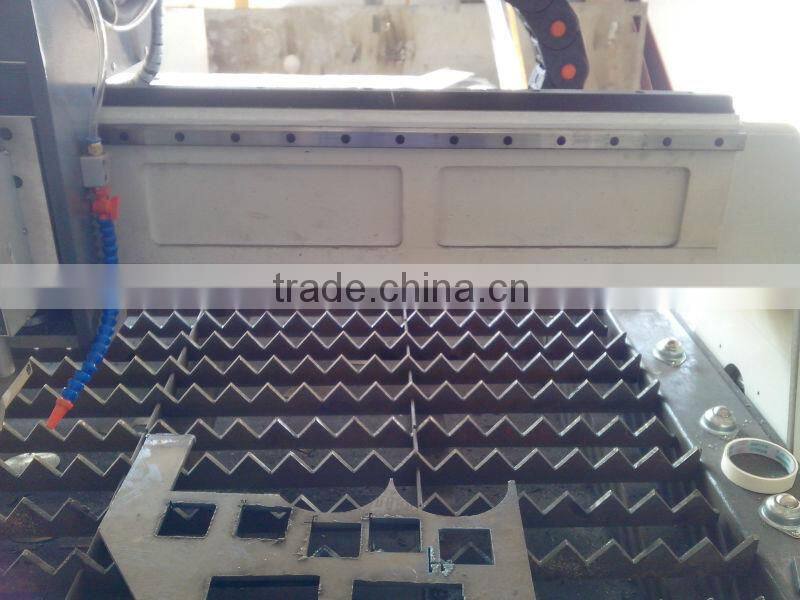

Detail components:

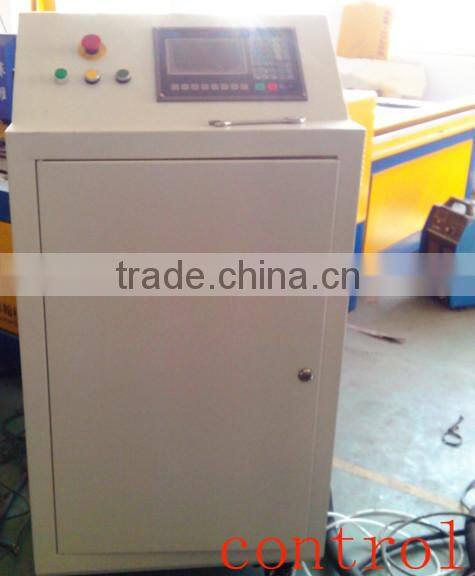

Controlling system |
We use Ncstudio, Multech, syntec, and DSP controlling system, you can choose it according to your demand |
Driving system |
There are two kinds, step and servo, servo has low noise, strong power, and high precision from Japan Panasonnic |
Frequency converter |
It is an equipment to control the AC motor by adjusting the frequency of the motor power |
Main spindle |
There are two kinds of spindle: Water cooling and Air cooling spindles. And with different power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/6KW/7.5KW |
Rail and gear |
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling frictionis small and positioning accuracy is much higher than sliding friction |
Dual screw-nut anti-gap rod |
The ball screw is an element to change the movements of the bearing from sliding to rolling. So the positioning accuracy is much higher. |
Packages:
Why you choose Nanjing Chaohan CNC machine?
1. Our Company is specialized in manufacturing and exporting CNC router and laser machine.
We have much export experience and provide the high quality machines with competitive prices.
2. Our machines are widely used in almost all the materials and industries.
3. we provide you one-stop services, including Online Negotiation, Order Confirmation,
Delivery and Transport, Installation Guidance, and After Sales Service
4. We can manufacture the machines in shorter time according to your requirements.
