Specifications
CNC Plasma Cutter1.apply to metalic sheet
2. CE ISO9001 certification
3.OEM available

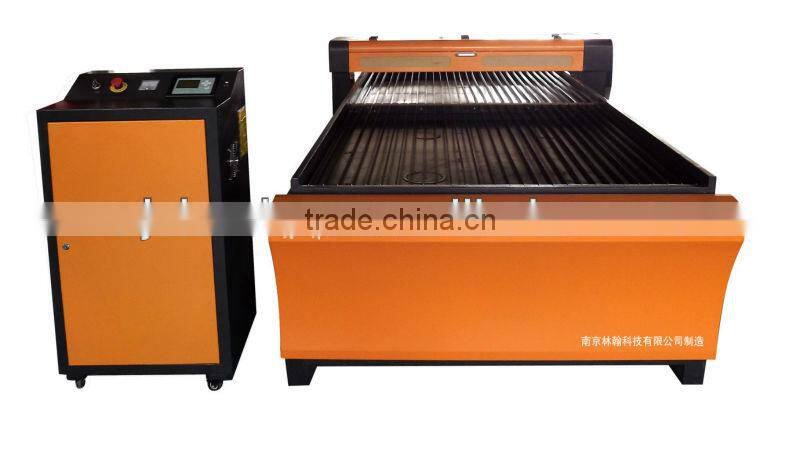

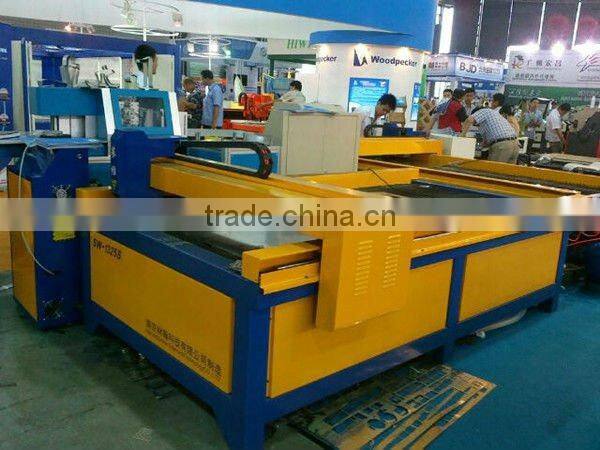

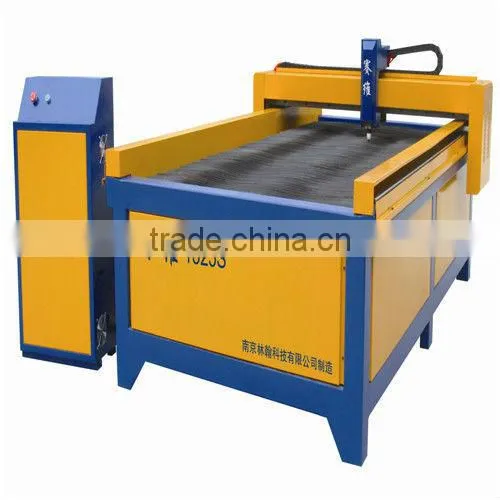

SW-1325 Plasma Cutting Machine
CNC Plasma Cutter Details
1: apply for metal parting cuts
2: thick abnormal metal plate cutting.
3: welding processing
4: match with USB interface, touching-screen control.
CNC Plasma Cutter’s advantages
1: The light structure beam
2: Dual synchronous motors and dual drives and circle guide for XYZ axis (optional 3: Squeal linear guide) in Y axis
4: Groove metal panels and the metal bottom panel
5: High-NC System configuration, automatic ARC
6: Be applied to many kinds of materials
7: Easy to operate
8: OEM is available

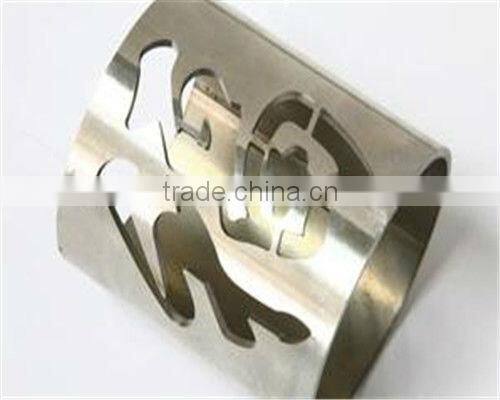

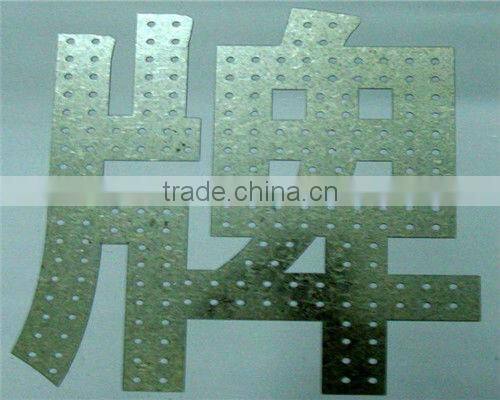

Samples:
Machine parameter:
Processing range |
1300*2500mm |
Processing material |
Iron, Aluminum, Zinc Plating Board , white steel Board, Titanium |
Processing thickness |
0.0-15mm |
Cutting speed |
0-8000mm/Min |
Power |
8500W |
Input voltage |
3-Phase 380V/220V 50Hz |
File transfer mode |
USB interface |
Plasma current |
60 or 100A |
ARC Mode |
non-contact ARC |
Color |
Optional |
QS |
ISO2000 |
OEM |
Available |
Software |
Wentai, Beihang Haier, ARTCAM, Type3 |

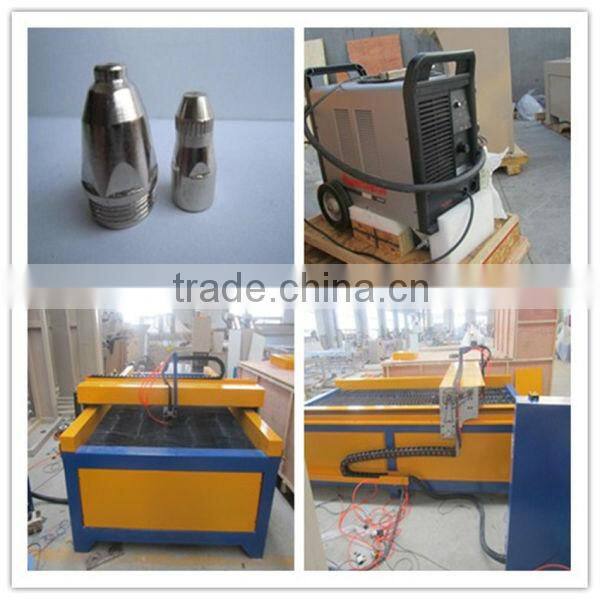

Component
CNC Plasma Cutter Functions And Applications.
1: The light structure beam to ensure the good rigidity, light weight and low inertia.
2: Gantry type structure, Y axis adopts dual synchronous motors and dual drives and circle guide for XYZ axis (optional squeal linear guide) in CNC Plasma Cutting Machine to ensure steady transmission, high precision.
3: For advertising solid light, groove metal panels and the metal bottom panel for cutting, accuracy cutting and good indicator. If equipped with the U.S Treasure plasma power can achieve lower limitation of the laser cutting machine.
4: CNC Plasma Cutter has small cutting incision, clear, no dregs, avoiding the secondary finishing process.
5: CNC Plasma Cutter is suitable for iron and aluminum plates, Zinc plating, white iron plates, titanium plates and other metal plates processing.
6: High-NC System configuration, automatic ARC, stable, performance in CNC Plasma Cutting Machine
7: CNC Plasma Cutter Support Wentai, Beihang Haier, ARTCAM, Type3, software such as the standard G code path files also could be read by software conversion software such as AUTOCAD, DXF format. U disk exchange control system processing files, easy to operate.
8: CNC Plasma Cutter’s Plasma power and the cutting torch are supply by domestic well-known brands manufacturer.
9: OEM is available as the customer’s requirements for CNC Plasma Cutter’s size and system.
Packing |
Length |
Width |
Height |
Unit |
Size |
Up:0.67 Down:3.2 |
1.86 |
0.99 |
M |
Service:
Warranty |
One year (Consumption goods are not included). |
Technical Support |
All Life ( If machine is blocked, please contact us immediately and we will arrange for technical engineer to solve freely). |
Trading Terms:
Payment Terms |
TT / , L/C |
Delivery Terms |
FOB Shanghai or Nanjing (Only Domestic). |
Payment Condition |
Payment 70%in advance before shipping to the port (domestic) pay off the balance. |
Packing |
Wooden case with inner plastic proof |
Supply Capacity |
200Sets / Month |

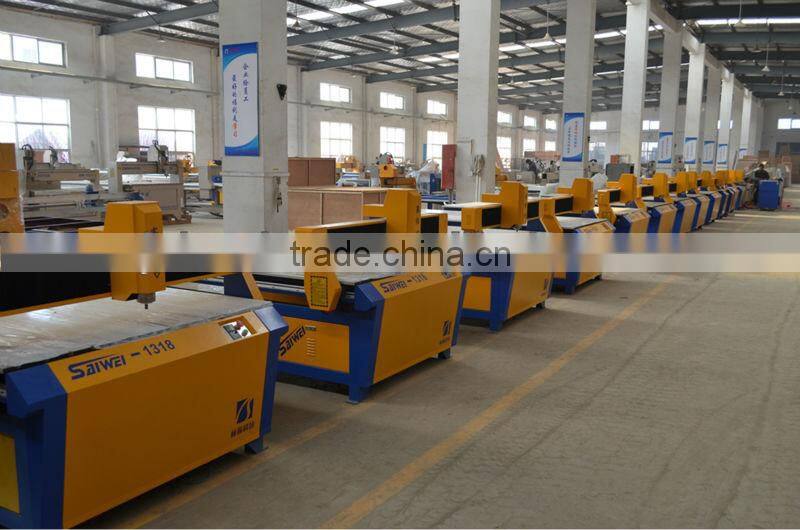

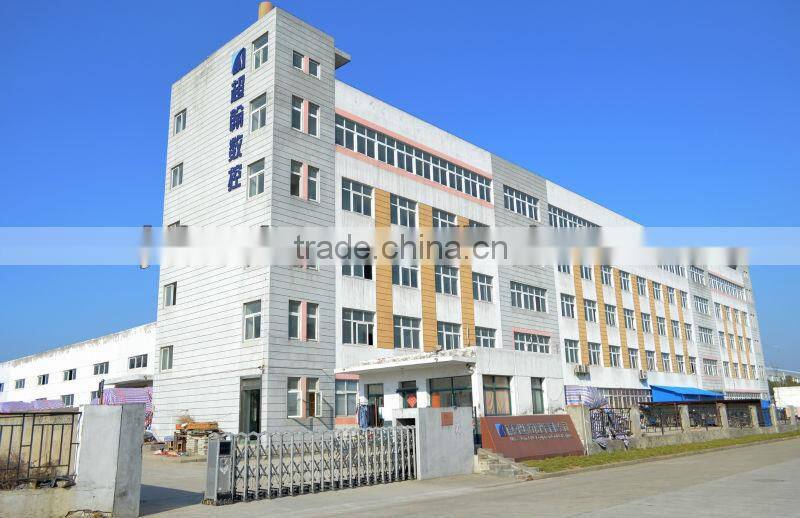

Company And Workshop:
Packing:

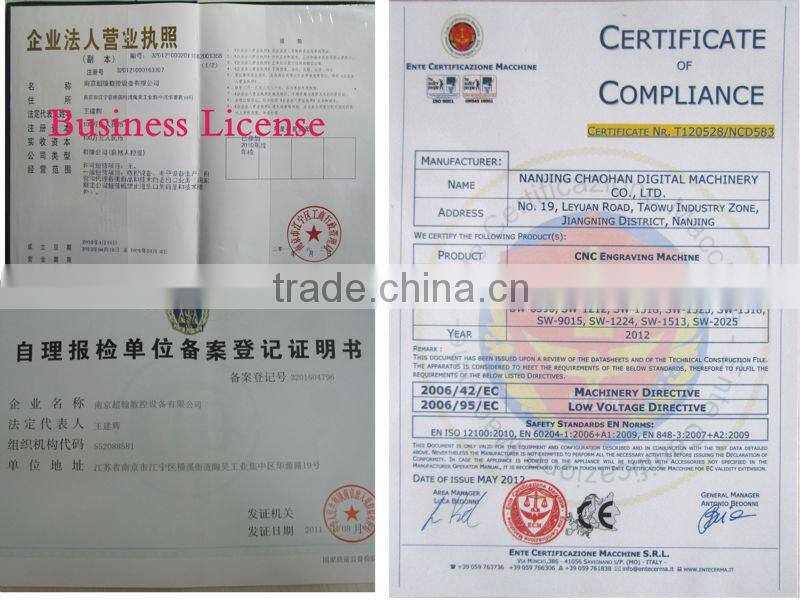

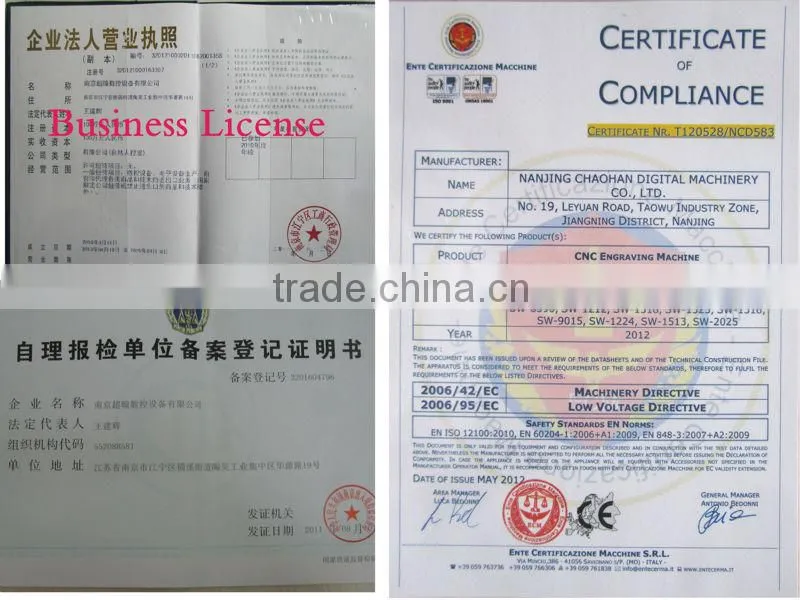

Factory and certification :
Packing:Stardand Wooden Box
