Help CenterCopper Clad Steel Ground Electrode
Related Products
Specifications
1. Good conductivity;2. Enough thick of copper thinkness;
3. Strong anti-corrosive;
4. Long using life;
5. Lowest price;
Product Description

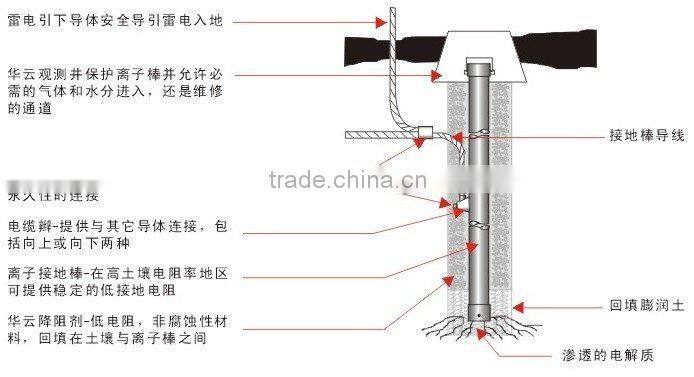

Ground rod of QXHY is a new grounding rods product, which using international advanced manufacturing technology and independent research and production, to reach international standards such as UL467 and BS7430.
It is made from high quality low carbon steel, bonding 99.9% electrolytic copper molecular on the steel core, made copper and steel core absolute conjugation as molecular form.
Features & advantage
- Our ground rods have thick copper layer, the averaged thickness is more than 0.25mm;
- They are strong anti-corrosion, the usage lif is more than 50 years;
- The conductivity is very good, becuase it is made from 99.9% electrolytic molecular bonding steel core which is conjugation completely;
- The ground rods are good plasticity, it can be bended trough a 30 or 90 or 135 degree angle. then do not have any crack and spalling evidence on the steel or the copper cladding.
- The usage range is widely, the copper ground rod can be use in soil with different dampness, temperature and PH range.
- The copper ground rods was lower cost, so they are now widely using on power plant, communication system, airport, railway, high building, petroleum chemicals plant and so on;
- Our factory operate are safe and high speed, because we have all accessories and professional operator.
Products specification
Our ground rod have some shapes: two ends are threaded; one end is pointed another end is threaded; one end is pointed another end is flat;
The ground rods of two ends threaded can be connected by the connector,drill and drive. The lenght is 1.5m, 18m, 2.43m, 2.5m, 3.0m and 3.05m, the diameter is 12mm, 14.2mm, 16mm, 17.20mm, 18mm, 20mm, 22mm, 25mm; they are all can be custermized as per customer's requirement.
