Specifications
Red light can automatically rapid check the welding point ,observing directly through the CCD or alter microscope.

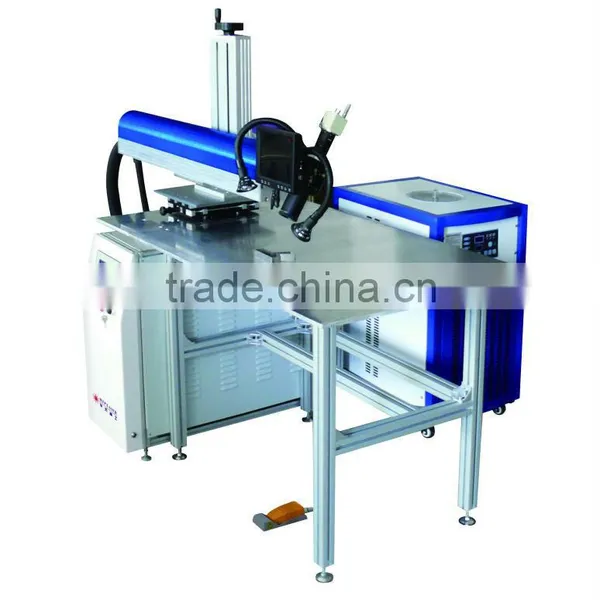

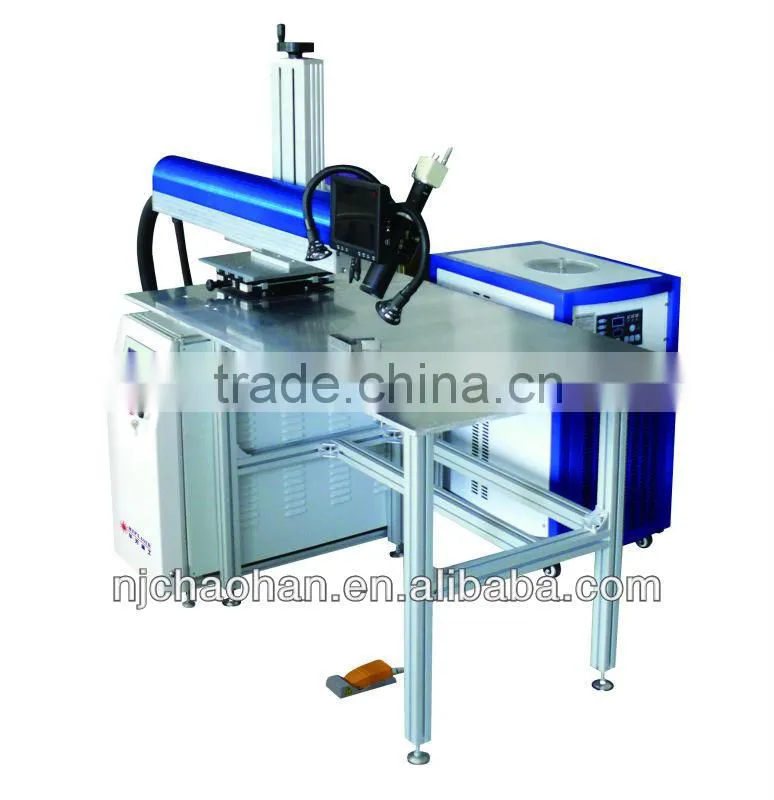

Metal Laser Welding Machine
Parameter
WY-200HZ Model |
WY-200HZ |
Mechanical Parts |
optical bench extension range 750mm Rotary 90°C |
X,Y,Z Working Process |
750*1000 mm |
Table Bearing Limit |
200KGS |
Voltage Supply |
220V±10%/50/60Hz or 380V±10%/50/60Hz |
Laser Model |
Nd :YAG impulsive lamp |
Spot Adjust range |
0.1--0.3MM |
Spot range |
0.2--3.0MM |
Laser Wave Length |
1064 MM |
Pulse Width |
15M/S |
Max Laser Power |
200W |
Pulse Frequency |
15Hz |
Laser Output Focus |
110MM/150MM(Optional) |
Laser Cooling System |
Water cooling |
Observation System |
CCD or Microscope |
Up and Down Process |
300MM |
Horizontal process |
200MM |
Functions and Applications :
1. Red light can automatically rapid check the welding point ,observing directly through the CCD or alter microscope.
2. Fast speed processing , professional fixed-focus clamp,rapidly testing the welding point by automatic focus without CCD and Microscope
3. With the superfine locating rod inside,the light-spot doesn't need to adjust its positions in the turning points of the characters.

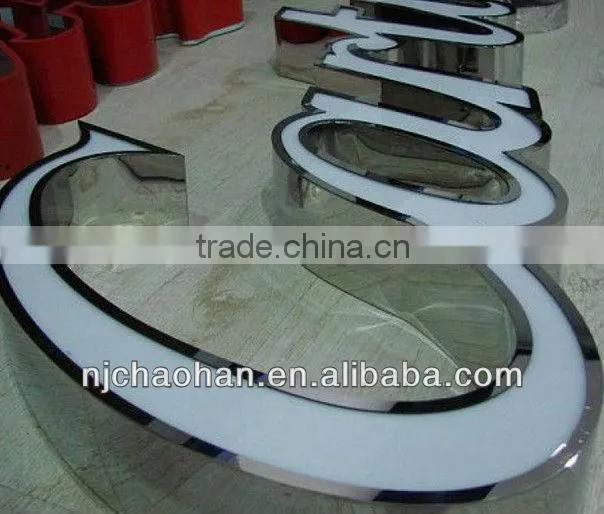

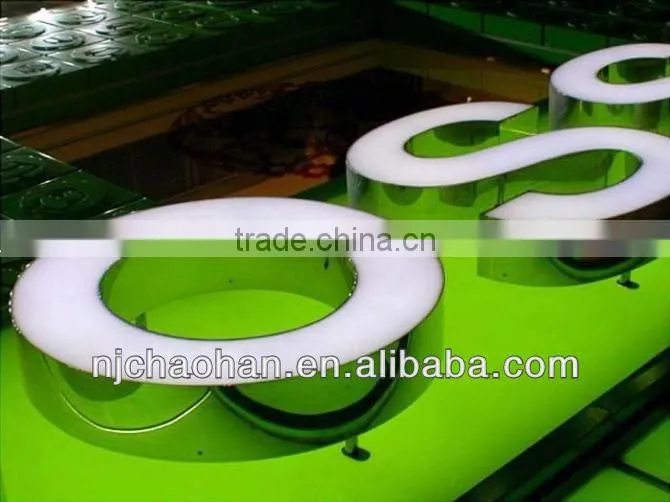

4. Suitable for various Fine words , Titanium words , Metals plate painting words (stainless steel plate, iron plate, galvanize plate ) , Advertising and Sign words and different Metal signs and LED letter’s shell welded.
Packing Size:
Packing |
Length |
Width |
Height |
Unit |
Size |
8 |
1.3 |
1.5 |
M |
Volume |
2.5CBM |
|||
Service:
Warranty |
One year |
Technical Support |
All Life |
Trading Terms:
Payment Terms |
T/T , L/C, Western Union |
Delivery Terms |
FOB Shanghai |
Payment Condition |
By T/T , 30% as deposit before shipping pay off the balance. |
Packing |
Exported Standard Pack |
Supply Capacity |
200Sets / Month |
