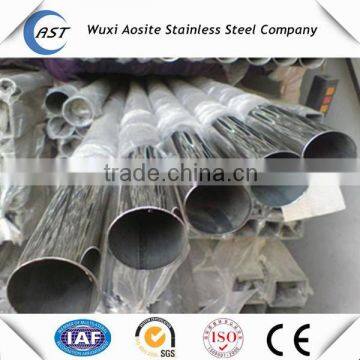

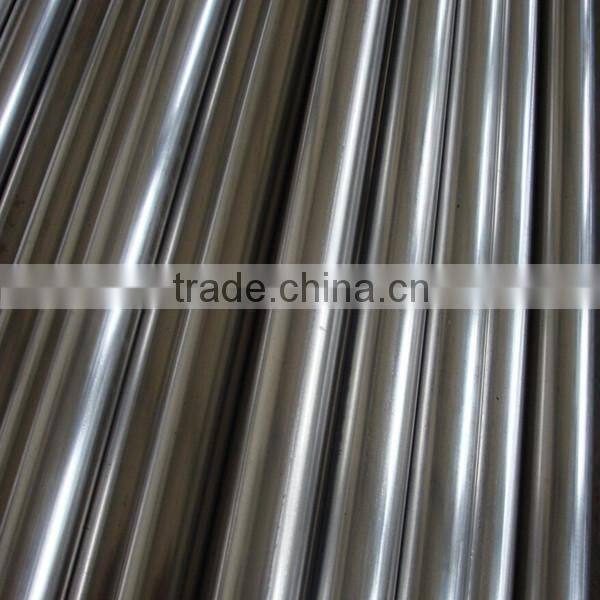

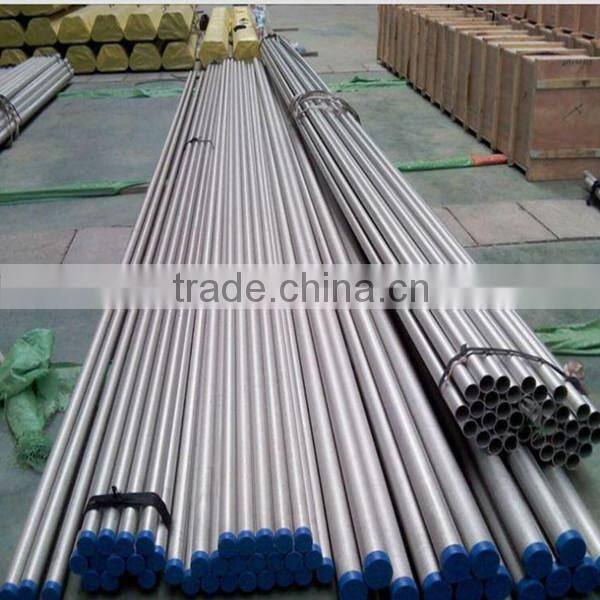

wuxi supply din 310S stainless steel tube
1. Detailed information
Product name |
wuxi supply din 310S stainless steel tube |
Material |
304:0cr18ni9, 0cr17ni8 201:1cr17mn6ni5n,1cr13mn9ni1n 316:0cr17ni12 or as customer’s request |
Size(round pipe) |
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
Size (square pipe) |
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10, 23×10,24×12,25×13,36×23,40×20,50×20,60×15,75×45,80×60, 95×45,100×60,150×100 mm or customized |
Size (oval pipe) |
30×15,80×40 mm os customized |
Thickness |
0.24-30 mm |
Length |
6m or according to customer’s request |
Outer diameter |
6-630mm |
Tolerance |
Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method |
Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
Finishing |
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
2. Chemical composition & physical properties
stainless steel |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
310 |
0.25 max |
2.0 max |
0.045 max |
0.030 max |
1.5 max |
24.0 - 26.0 |
19.0 - 22.0 |
310S |
0.08 max |
2.0 max |
0.045 max |
0.030 max |
1.5 max |
24.0 - 26.0 |
19.0 - 22.0 |
Mechanical Properties at Room Temperature
|
stainless steel 310 |
stainless steel 310S |
||
|
Typical |
Minimum |
Typical |
Minimum |
Tensile Strength, MPa |
625 |
515 |
575 |
515 |
Yield Stress (0.2 % offset), MPa |
350 |
205 |
290 |
205 |
Elongation (Percent in 50mm) |
50 |
40 |
50 |
40 |
Hardness (Brinell) |
172 |
- |
156 |
- |
Endurance (fatigue) limit, MPa |
260 |
- |
260 |
- |
3.The production process
Stainless steel with excellent corrosion resistance, strong impact resistance, stable quality, durable and novel
structure and beautiful appearance, stainless steel sheet/plate are widely used in architecture,construction,
building structures, kitchenware, hardware, cutlery, tableware, surgical instruments,chemical, petroleum,
sculpt.
Wuxi Aosite stainless steel import and Export Co., Ltd. is a manufacturer of stainless steel sheets, stainless steel coils and stainless steel tubes, with well-equipped testing equipment and strong technical force.
Our products are very competitive in price & good in quality, and have gained a good reputation among our customers both in domestic market and abroad.
We warmly welcome customers from all over the world to establish a long-term mutual beneficial relationship and create a bright future together.
