Challenger Fy-3278n 3.2m Infinity Digital Large Format Printer (8 Spt Heads 157sqm/h)

Challenger Fy-3278n 3.2m Infinity Digital Large Format Printer (8 Spt Heads 157sqm/h) thumbnail-1
Challenger Fy-3278n 3.2m Infinity Digital Large Format Printer (8 Spt Heads 157sqm/h) thumbnail-2
Challenger Fy-3278n 3.2m Infinity Digital Large Format Printer (8 Spt Heads 157sqm/h) photo-1
Challenger Fy-3278n 3.2m Infinity Digital Large Format Printer (8 Spt Heads 157sqm/h) photo-2
US$ 9,500 - 15,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, inkjet solvent printer
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Crystek Electronic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, inkjet solvent printer
Place of Origin Guangdong, China
Brand Name Infinity/Chanllenger
Model Number challenger fy-3278n 3.2m Infinity digital large format printer (8 spt
Usage Bill Printer, Paper Printer
Automatic Grade Automatic
Voltage AC220V
Gross Power 50/60HZ
Dimensions(L*W*H) L4520*W860*H1340
Weight 400KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

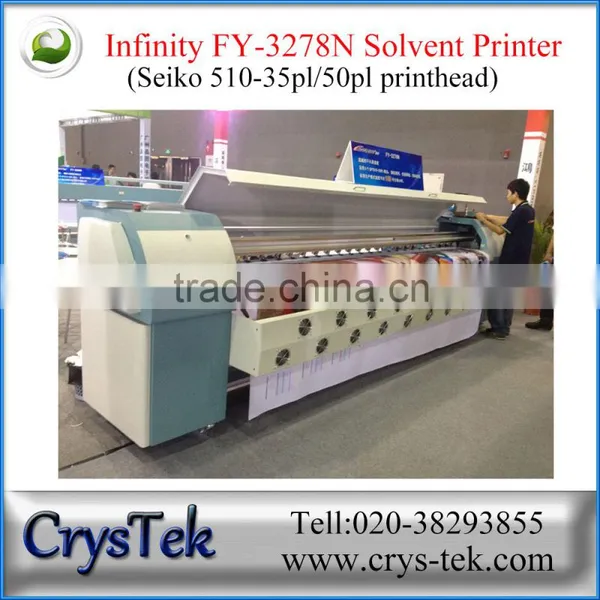

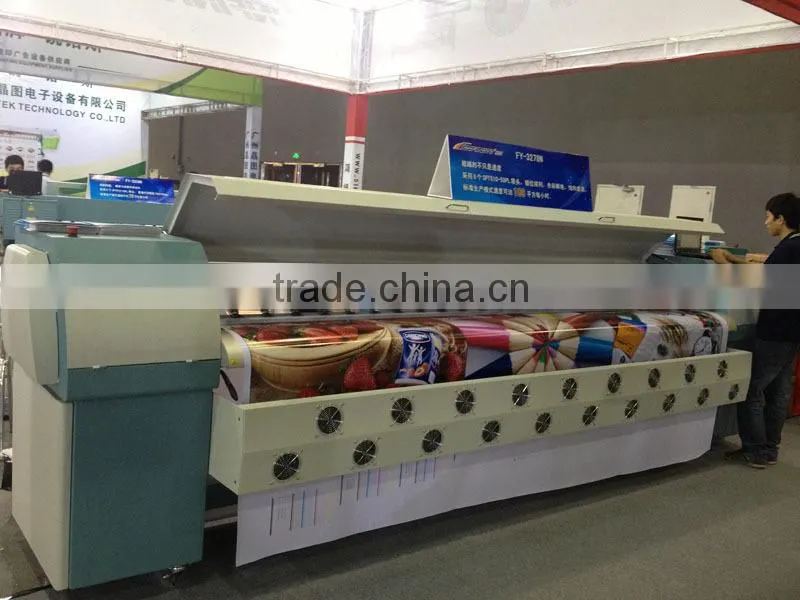

Infinity FY-3278N solvent printer



1. 3.2m printing size.

2. with SPT 510-35pl/50pl printhead

3. CMKY 4 colors

4. 4 pcs printhead or 8 pcs printhead

5. vivid printing.



Specifications:

Double 4 color printing,the standard output achieves 157sq.m/hr.
AC servo motor is used to run the carriage quicker and more stable.
Individual color purging minmizes the waste of the ink.
3 way intelligent heater helps bring more vivid output.
The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
Adopt USB2.0 output system,faster and more flexible

 Detials:

Model

FY-3278N

Print Head

Drop on demand Piezo Head

Number of Printhead

8 Heads

Maximun Print Width

3200mm(125.98")

Print Speed

Standard

 2Pass    157sq.m/hr

quality

 3Pass    109sq.m/hr

High Quality

 4Pass    70sq.m/hr

Media

max.width

3300mm(129.92")

Max. Weight

80kg

Type

Frontlit,Backlit,Vinyl,Polyester,Window Film, Leater…

thickness

4mm(Max)

Heating System

3 way intelligent heater

Auto Media Feeding&Take-up System

Equipped

Ink

Type

Solvent ink (C,M,Y,K)

Capacity

1L or 5L per Color Main Tank

Auto Cleaning System

Positive Pressure Cleaning,Anti-Clogging Flash      Function&Capping System

Print interface

USB2.0

Power Specification

220V/230V 50Hz/60Hz Printer:660W Heater:1900W

Operational Environment

Temperature:20°C-28°C   Humidity:40%-60%

Compatible RIP Software

Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop

Dimension&Weight

Machine

L4600mmxW970mmxH1290mm      405kg

Package

L4930mmxW1140mmxH1620mm     692kg



 challenger fy-3278n 3.2m Infinity digital large format printer (8 spt heads 157sqm/h)
