Help CenterF12 Solvent Printer/ 12 Pcs SPT Printhead Indoor Outdoo Printer (3.2m )
Related Products
-
3.2m F12 Digital Printing Machine With Spt Prinhead Fast Printing PrinterUS$ 9,000 - 17,000MOQ: 1 Set -
CrysTek 3.2m Width Format Printer With SPT Head/ F12 Solvent Printing MachineUS$ 9,000 - 17,000MOQ: 1 Set
-
CrysTek 3.2m F12 Large Format Solvent Printer/ SPT 510 Head Inkjet PrinterUS$ 9,000 - 17,000MOQ: 1 Set
-
CrysTek 3.2m F12 Inkjet Printing Machine (SPT510/1020 Head)US$ 9,000 - 17,000MOQ: 1 Set
-
3.2m Infinity Printer/ Challenger FY-3278n Printing Machine/ FY-3278N MachineUS$ 8,500 - 13,500MOQ: 1 Set

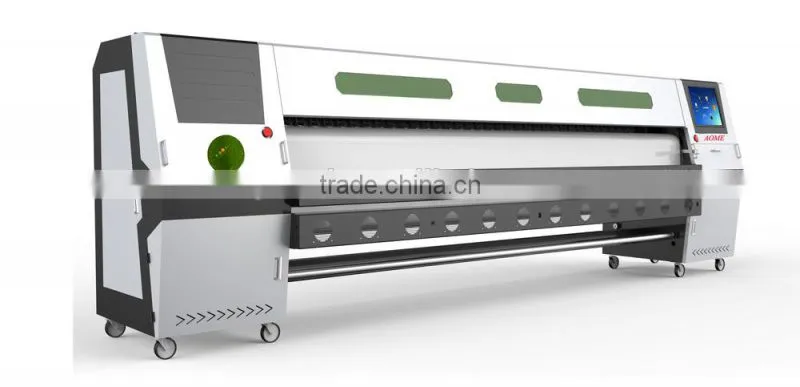

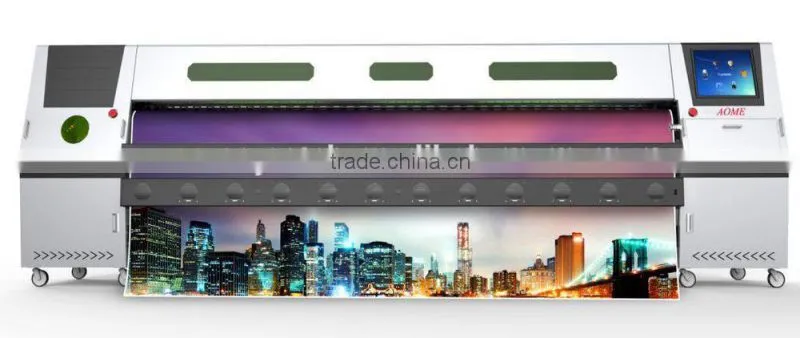

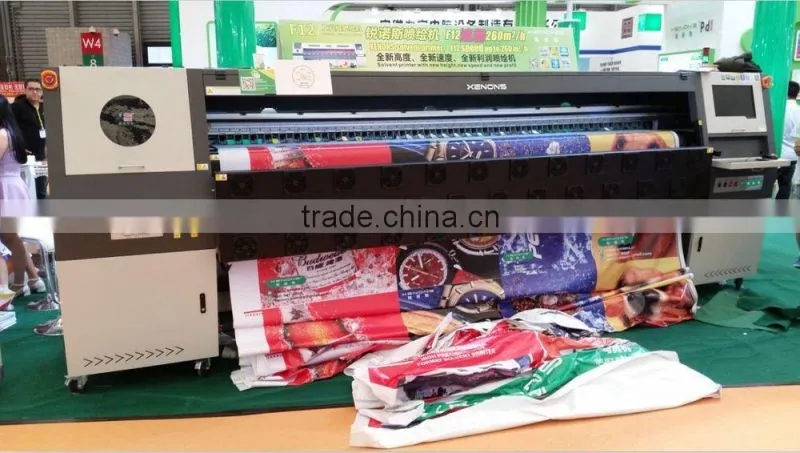

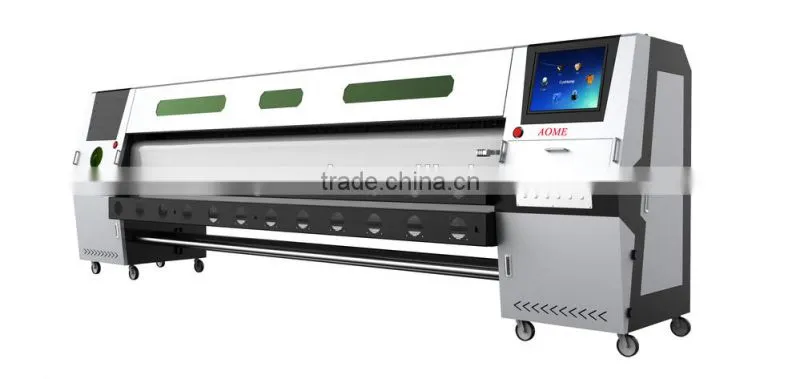

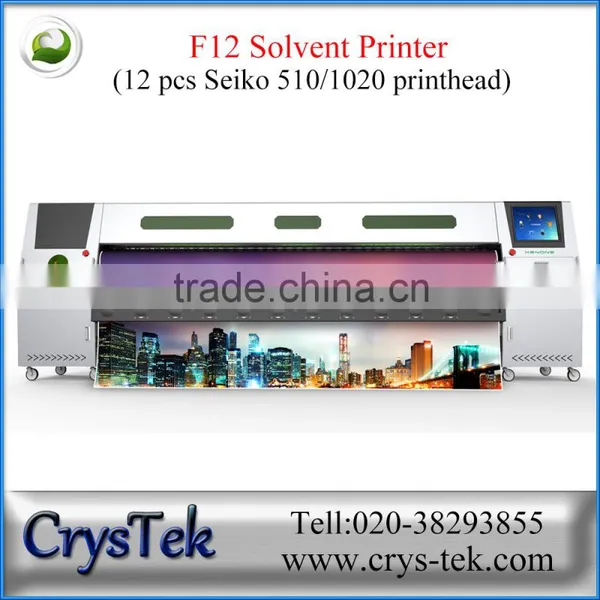

F12 solvent printer with 12 pcs SPT 510 or SPT 1020 printhead
1. 3.2m printing size

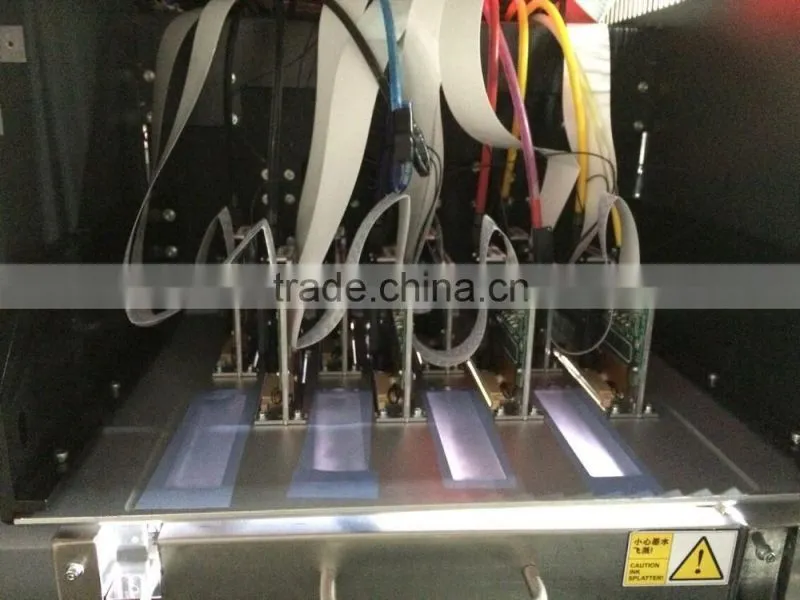

2. SPT 510 or 1020 printhead
3. 12 pcs printhead,
4. 4 color: C/M/K/Y
4. fast print, 260sqm/h
Sepecification:
Model |
F12 |
|
printhead |
Spt 510 or Spt 1020 Printhead |
|
Number of Printhead |
8/12 pcs Heads |
|
Max Print Width |
3200mm(126” ) |
|
Printing Resolution |
(8 pcs 510 heads) 2Pass |
160m² /hr |
(12 pcs 510 heads) 2Pass |
230m² /hr |
|
(8 pcs 1020 heads) 2Pass |
190m² /hr |
|
(12 pcs 1020 heads) 2Pass |
260m² /hr |
|
Ink |
Type |
solvent ink |
Color |
4 colors CMKY |
|
Capacity |
5000ml |
|
|
Type |
flex banner, vinyl sheet, one way sion, indoor light box cloth, flective material |
Print Height |
1-3mm above media adjustable |
|
Heating System |
pre-heating platen-heating post-heating |
|
Media adsorption system |
Several phase of intelligent air draft, and intensity adjustable |
|
Auto feeding Media System |
Equipped (Max Media Weight 40kg) |
|
Auto Printhead Cleaning System |
Anti-clogged Flash Function & Moisturing System |
|
Clamp |
Equipped |
|
Auto paper collecting system |
Selectable |
|
Print Interface |
Hi-USB2.0/3.0 |
|
RIP software |
MaintopPhotoprintWasatch |
|
Input Power |
AC220V, 50Hz/60Hz , min: 1500W, max: 6000w |
|
Machine Dimension |
L4890 x W890x H1700 mm 750KG ±15kg |
|
Pachage Dimension |
L490 x W1000 x H1750 mm 9500KG ±15kg |
|
Pictures:
Printing Martials:
Flex banner, Vinyl, Soft film, One way vison, Light Cloth...
Package:
Wood Box
Shipping:
By Sea
Warranty:
one yeaer for machine boards and motors.
Services:
If you have any question or help, engineer will control your computer to help you solve problem.
Traning:
You arre welcome to send engineer to our office for free training.
More detials, Contact us!
