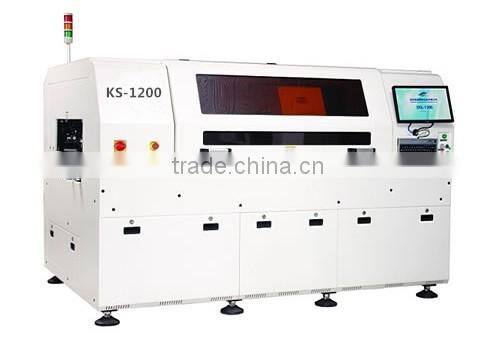

Specification of LED Full automatic printer KS-1200A :
| Repeated positioning accuracy | ±0.01mm |
| Printing accuracy | ±0.025mm |
| Printing speed/cycle | 12s (Exclude Printing & Cleaning) |
| Line change time | 5Min |
| Frame size/min | 1100mmX300 ( Standard ) |
| Frame size/max | 1500mm X 750mm |
| Frame size/thicknes | 20mm ~ 40mm |
| Frame printing size/min | 80X50mm |
| Frame printing size/max | 1200X340mm |
| Frame printing size/thickness | 0.6~6mm |
| PCB camber | 1% |
| Bottom gap | 15mm |
| gap of the PCB edge | 3mm |
| Transmission height | 900±40mm |
| Transmission direction | Left-right;right-left;left-left;right-right |
| Transport speed | 50-1200mm/sec Can be Controlled by program |
| PCB Holding way | Magnetic thimble / edge support block / flexible automatic thimble (option) |
| PCB Fixture way | Elastic side clamp /Z to compression / vacuum suction |
If you have the bulk production demand , this kind of machine can help improve the production .
Application field : IGBT modular , MEMS packaging, Large-power component ,LED light
Product features:
1. The platform double double, independent operation .
2 . Professional for high precision LED printing industry .
3. With digital pressure feedback WIREROD direct scraper head .
4 . The patented dual camera high rigid net frame four motor closed-loop positioning system.
5. The patented dual camera high rigid net frame four motor closed-loop positioning system .
6. The humanized operation interface .

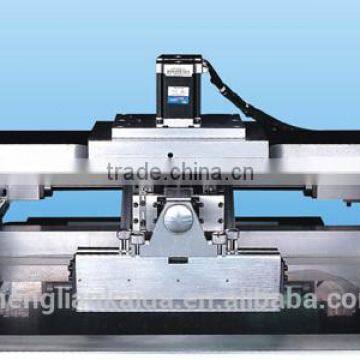

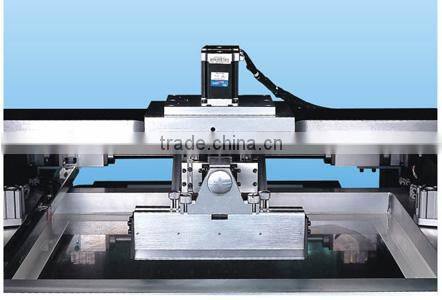

| Printing head | Programmable electrically controlled printing head (air controlled is optional) |
| Scraper speed | 10~200mm/sec |
| Scraper pressure | Programming control |
| Scraper angle | 60°Standard /55°/45°Standard |
| Scraper type | Steel / rubber or can be customize |
| Frame divided speed | 0.1~20mm/sec Programming control |
| Cleaning way | Dry clean,wet clean |
| Working table adjusting range | X: ±8mm;Y:±10mm |
| Image reference point type | Standard geometry reference point, pad / open |
| air | 4~6Kg/cm2 |
| Air consumption | About 0.07m3 /min |
| Controlling method | PC Control |
| Power Source | AC:220±10%,50/60HZ 1Φ 1.5KW |
| Dimension | 2220(W) x 1220(D) X1500(H)mm |
| Weight | Approx:1500Kg |
| Working environmental temperature | -20°C ~ +45°C |
| Working environmental humidity | 30%~60% |
Packaging & Shipping:
Our service :
Why you choose us ?
1 . Face to face technical guidance : our professional technical staff will be abroad for technical guide and after-sale service .
2. Visual monitoring analysis system: Real -time monitoring the welding process and perform statistical analysis on date . stability , reliability and security operating system .
3. Rapid cooling system : Independent water cooling and gas cooling device is set in the cavity, achieve rapid cooling of the device.
Office and workshop show :
FAQ :
Question:Which payment terms you will accept?
Answer : L/C, T/T, West Union.paypal
Question: What is your delivery time?
Answer: For some normal standard size furnaces and components, we have in stock of semi-finished products ; So we can send out in 10 days; Others the delivery time is from 15 days to 45 days according to different products request.
Question: What logistic shipping ways you can send the products?
Answer: We can send goods out by sea, by air or by express per customer's requirement.
Question: What about your after-sale service?
Answer: Our warranty time is one year for defects in materials or workmanship. During this period, we will replace the bad components free of charge for customers,but this warranty does not cover consumables and failures because of abusing, misusing, accident or unauthorized alteration or repairing. Heating element is not included inside.
