woodworking edge saw/plywood double sizer /plywood saw

Specifications

1.Twice output than other supplier
2.Wook speed faster
3.Power saving
4.The noise is small
5.Eco-Friendly

                               Automatic plywood sawing machine



1.Our Commpany

      HEBEI YAHAN WOOD MACHINERY CO.,LTD is a manufacturer of plywood machine with well-equipped testing facilities and strong technical force.

       Our main products are heat press machine, cold press machine, planking machine,sanding machine, saw machine, rolling machine, veneer dryer, plate turnover and all kinds of wood industry machinery.

     Our company has over twenty years experience of R&D and technology innovation therefore our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. Our comapany have good reputation from the user for our good quality and excellent after sale service.







2.Characteristic:



1 Our sawing machine is controlled by PLC, therefore in plywood productin, the final size of plywood will be accurate and soomthly.



2 Infrared control to ensure the cutting precision



3 This sawing machine can achineve automatic edge cutting and stacker saving labor for you.



4 Our company have all kind of specification for you to choice.



 3. The advantage of the full automatic saw



the items	the full automatical saw	the manual saw
the labor	2 workers	4 workers
the speed	25s/round	90s/round
the guidance	Infrared guidance	by eyes
the fix device	mechinism hands	human hands
safety	far from saw blad	easy injury
the stacking	automatically(infrared)	munaul



 4. Technical Specification :





Minimum and maximum cutting edge width	900-1300mm
Minimum and maximum cutting edge length	1830-2600mm
Saw blade size	φ180&φ305
Cutting board thickness	3~50 mm
Vertical sawing speed	40m--70m/min
Horizontal sawing speed	40m--70m/min
Broadside dimension	8500*5500*1020 mm
Longside dimension	3200*3500*1300 mm
Gross weight	5000Kg
Motor power	34.8KW

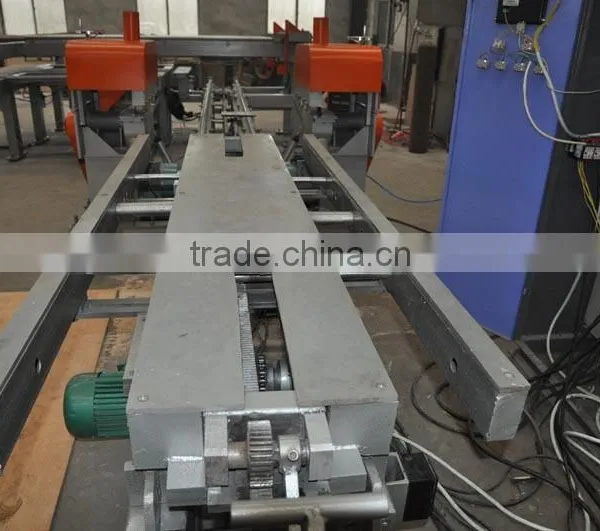

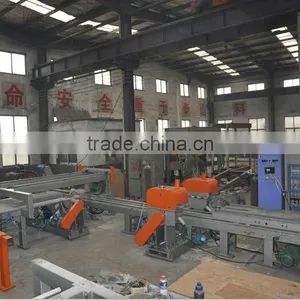

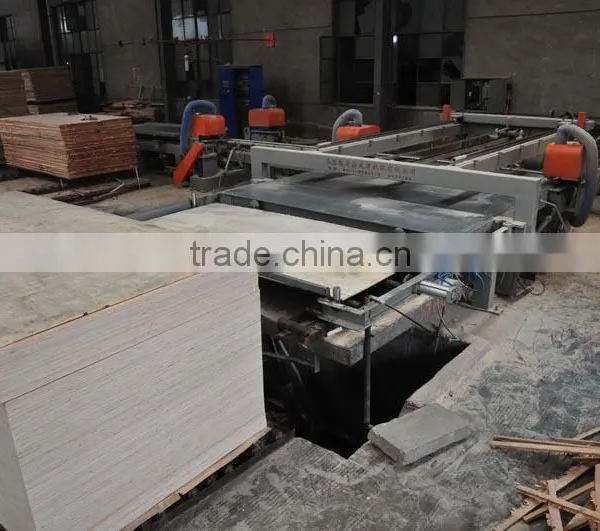

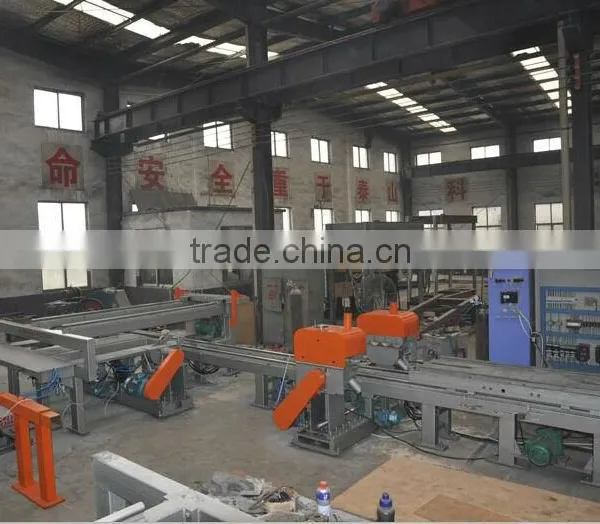

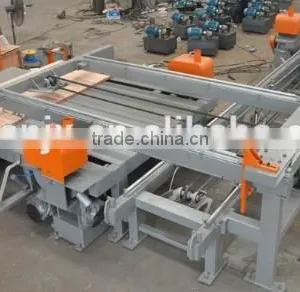

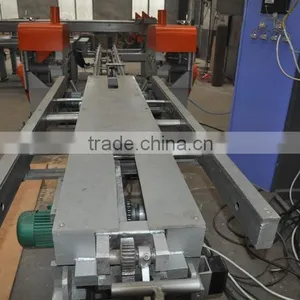

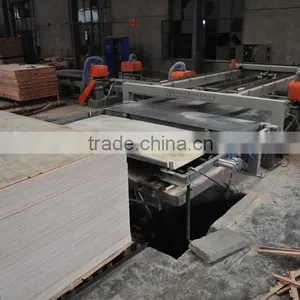

 5.Photos of Main Machines:
