Specifications
1.Low noise2. Low consuming
3. High efficiency
4. High precision reach 0.005mm;
5. Timely delivery and transportation
Automatic plywood sawing machine
HEBEI YAHAN WOOD MACHINERY CO.,LTD is a manufacturer of plywood machine with well-equipped testing facilities and strong technical force.
1.Characteristic:
1 Our sawing machine is controlled by PLC, therefore in plywood productin, the final size of plywood will be accurate and soomthly.
2 Infrared control to ensure the cutting precision
3 This sawing machine can achineve automatic edge cutting and stacker saving labor for you.
4 Our company have all kind of specification for you to choice.
2. The advantage of the full automatic saw
the items |
the full automatical saw | the manual saw |
| the labor | 2 workers | 4 workers |
| the speed | 25s/round | 90s/round |
| the guidance | Infrared guidance | by eyes |
| the fix device | mechinism hands | human hands |
| safety | far from saw blad | easy injury |
| the stacking | automatically(infrared) | munaul |
3. Technical Specification :
| Minimum and maximum cutting edge width | 900-1300mm |
| Minimum and maximum cutting edge length | 1830-2600mm |
| Saw blade size | φ180&φ305 |
| Cutting board thickness | 3~50 mm |
| Vertical sawing speed | 40m--70m/min |
| Horizontal sawing speed | 40m--70m/min |
| Broadside dimension | 8500*5500*1020 mm |
| Longside dimension | 3200*3500*1300 mm |
| Gross weight | 5000Kg |
| Motor power | 34.8KW |

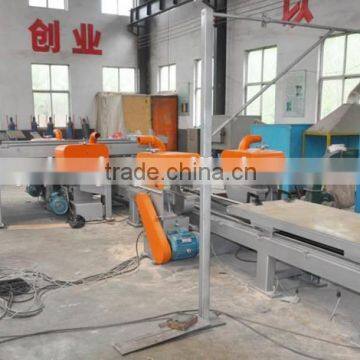

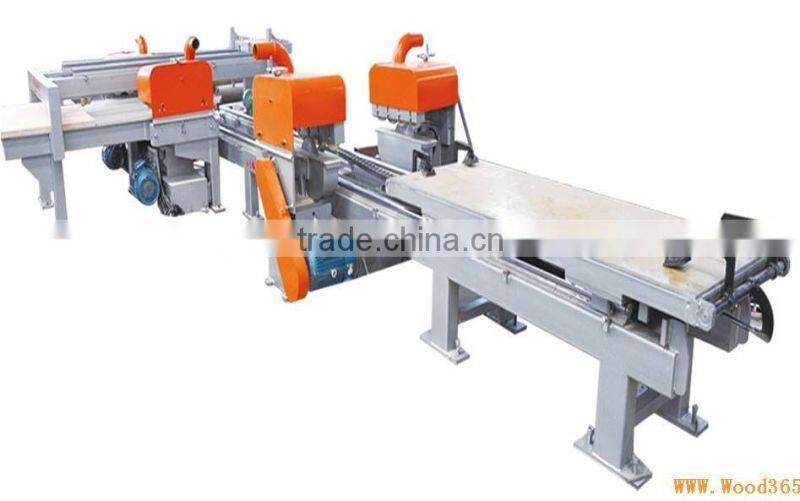

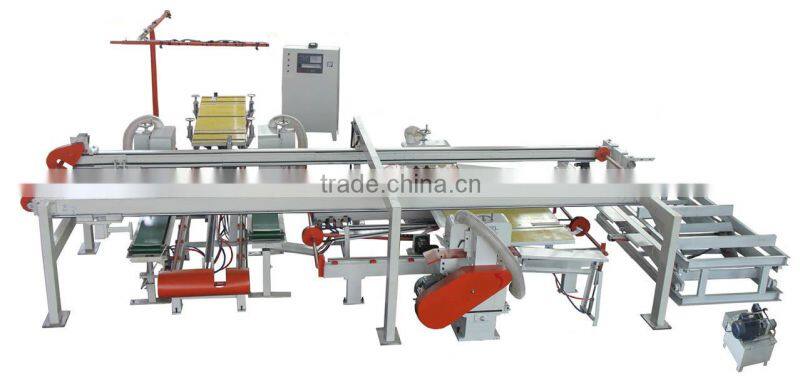

4.Photos of Main Machines:
5.About our company:
Our main products are heat press machine, cold press machine, planking machine,sanding machine, saw machine, rolling machine, veneer dryer, plate turnover and all kinds of wood industry machinery.
Our company has over twenty years experience of R&D and technology innovation therefore our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. Our comapany have good reputation from the user for our good quality and excellent after sale service.
