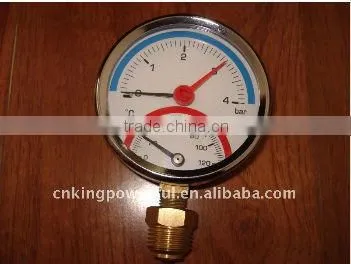

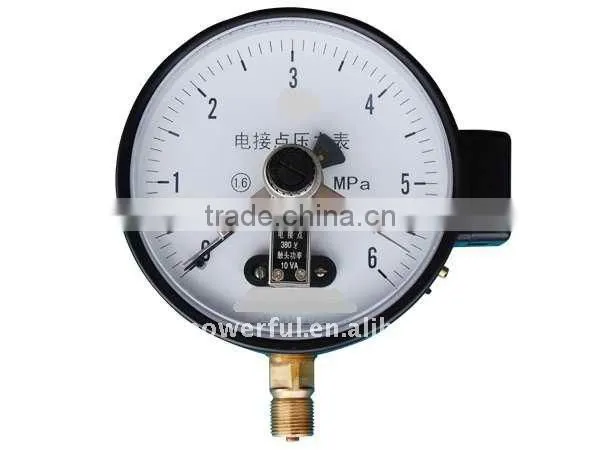

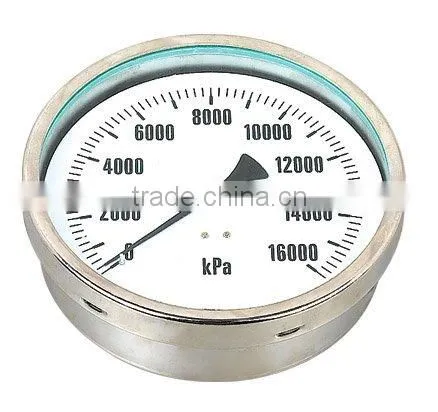

Help CenterGENERAL PRESSURE GAUGE
Related Products
Specifications
For measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass
For measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass
Application: |
For measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass |
Type : |
KP-001 (Dry Steel Case Pressure Gauge) |
Dial size: |
1.5", 2", 2.5", 3, 3.5", 4", and 4.5", 6", 8", 10", |
Pressure range: |
-30" Hg-0-10,000PSI |
Socket: |
Brass bottom and back connection ,side connection |
Connection thread: |
NPT , BSP, BSPT and other special specification |
Bourdon tube: |
Brass or phosphor bronze tube |
Case: |
chrome plated steel or Black painted steel |
Bezel: |
Black painted steel or chrome plated steel |
Window (lens): |
Glass, acrylic, and polycarbonate lens available |
Dial plate: |
Single and dual scale (psi, kpa, mpa, bar, kg/cm2) available |
Accuracy: |
ASME B40.1 Grade B (3-2-3%) ASME B40.1 Grade A (2-1-2%) |
Ambient temperature: |
-40 to 60 |
|
Option Info: |
1) Restrictor available 2) Front flange available 3) Back flange available 4) U-clamp available 5) Other connection sizes available upon request. |
