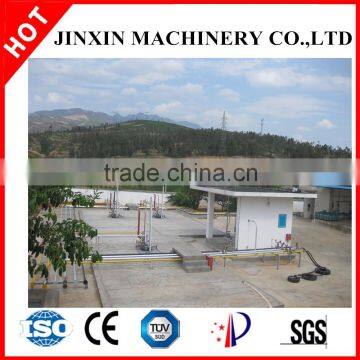

We are the professional LPG station overall solution supplier
You can get all the accessories of the lpg station from us

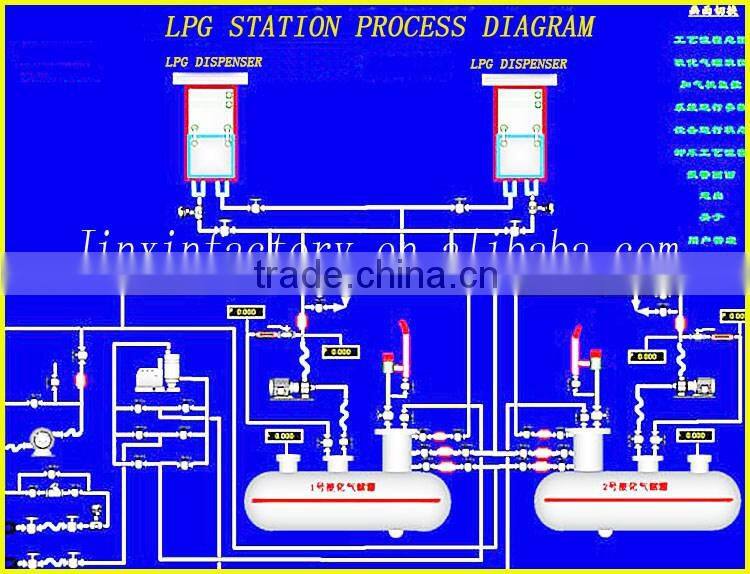

Process diagram
Tank structures

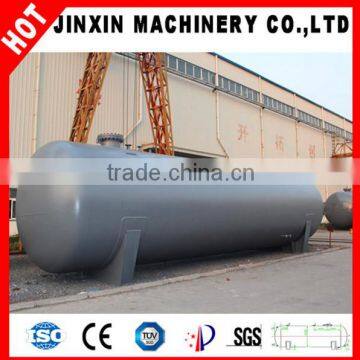

Production process

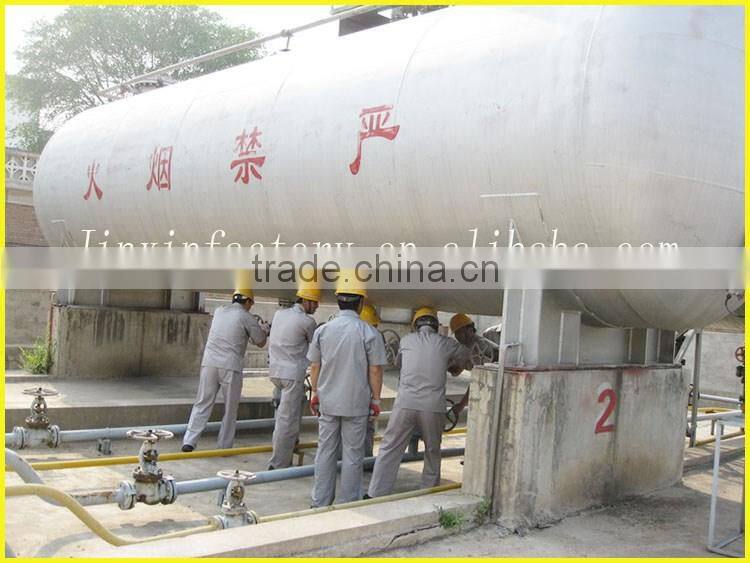

Professional oversea service

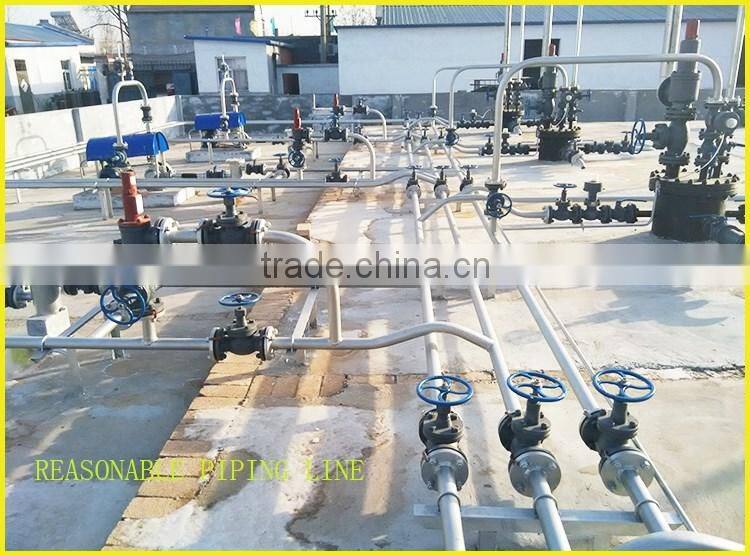

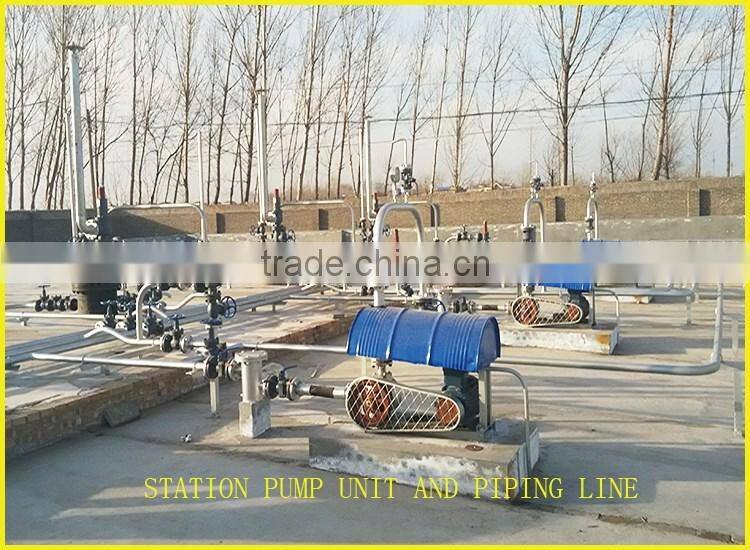

Professional piping line installation
More accessories
| Model | Volume | Diameter | Thickness | Extreme Dimension | Weight | Full-load weight |
| m3 | mm | mm | L*W*H mm | kg | kg | |
| JXLPG-5 | 5 | Φ1200 | 8 | 4600*1200*1700 | 2210 | 2610 |
| JXLPG-10 | 10 | Φ1500 | 10 | 5950*1500*2000 | 3100 | 5220 |
| JXLPG-15 | 15 | Φ2000 | 12 | 5100*2000*2450 | 4280 | 7830 |
| JXLPG-20 | 20 | Φ2000 | 12 | 6650*2000*2450 | 5200 | 10450 |
| JXLPG-25 | 25 | Φ2000 | 12 | 8300*2000*2450 | 5890 | 13050 |
| JXLPG-30 | 30 | Φ2000 | 12 | 9850*2000*2450 | 7200 | 15660 |
| JXLPG-35 | 35 | Φ2000 | 12 | 11500*2000*2450 | 7790 | 18270 |
| JXLPG-40 | 40 | Φ2400 | 14 | 9500*2400*2950 | 9400 | 20880 |
| JXLPG-50 | 50 | Φ2400 | 14 | 11722*2400*2850 | 11230 | 26100 |
| JXLPG-60 | 60 | Φ2600 | 14 | 10400*2600*3100 | 12500 | 31320 |
| JXLPG-80 | 80 | Φ2800 | 16 | 13700*2800*3300 | 17500 | 41760 |
| JXLPG-100 | 100 | Φ2800 | 16 | 16828*2800*3300 | 21750 | 52200 |
| JXLPG-150 | 150 | Φ3240 | 18 | 19400*3240*3732 | 31250 | 78300 |
| JXLPG-200 | 200 | Φ3840 | 20 | 18554*3844*4350 | 39480 | 104400 |
Specifications
Medium |
liquefied petroleum gas |
Material |
Q345R |
Design pressure |
1.77 MPa |
Working pressure |
1.61 MPa |
Test pressure |
2.24 MPa |
Working temperature |
-19 to 50 ℃ |
Corrosion allowance |
1 mm |
Filling ratio |
0.9 |
Nondestructive testing |
100% RT and MT |
Thermal annealing |
Whole body |
Design life |
10 years |
Founded in 1978, JINXIN group now has more than 30 years experience in the design and manufacture of the LPG tank and cryogenic liquid tank. We have our own 2 factory with more than 1000 workers and was strategically positioned in central China, halfway between Beijing and Shanghai, in the Henan province. The premium location is serviced by modern transport infrastructure, and its proximity to highways and railways at all levels facilitate ease of dispatch and delivery.
We strictly follow the notion “cultivate moral standing, manufacture excellent products”, keep scientific attitude and strict management, utilize advanced equipments, making the products well sold throughout China and exported to Japan, Thailand, Australia, Iran, USA, Mexico, Kenya, France, Germany and many other countries.
With advanced design and technology, perfect after-sales service, we are confident to provide you higher quality products with lower cost!
Certificates and patent
Honor
Visit
Packaging Details:
Package:
1. Accessories parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Tanks are packed by plastic woven cloth. It can reduce abrasion when transport.

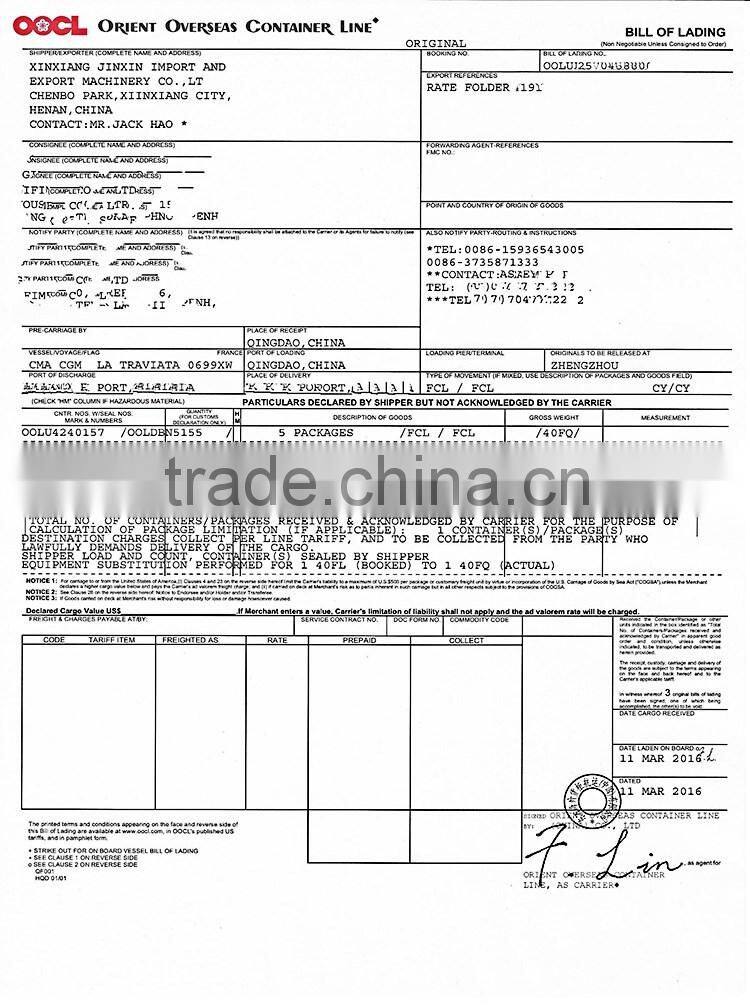

Delivery:
1. If the size of whole tank are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship;
3. Transport ways are based on reducing cost for you and keep the tank performance!
Delivery Details:
Within 35 work days after receiving the deposit.
1. Is your product customized?
Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the volume, nozzle position and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the volume, nozzle position or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. You can make adjustment of tank’s placement according to the site condition and nozzle position.
4. What’s the filling ratio of the tank?
Thanks for your question. The filling ratio of the standard tank is 0.9, As LPG is in high pressure environmental, so the tank can’t be fully filled to ensure the safety. For example, the maximum storage of 30CBM LPG tank is 11340kg.
5. Can the tank work in hazardous environment?
Thanks for your question. This type product is just for application in general workshop or filling station. For hazardous environment, please consult our professional sales manager.
6. Do your side can provide parts?
Thanks for your question. Yes, we can provide any kinds of parts such as safety valve, level gauge, thermometer, pressure gauge, flange, globe valve and other specials as your requirement!
7. Can you provide the turn-key project for LPG Station?
Thanks for your question. Yes, we can provide! We are the only manufacturer in China which can provide oversea on-site services!
We are the only manufacturer in China which can offer official written technical support in 48 hours;
Look forward to our cooperation & mutual benefit
