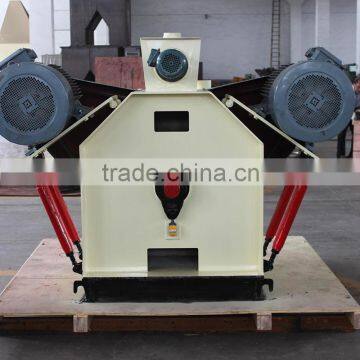

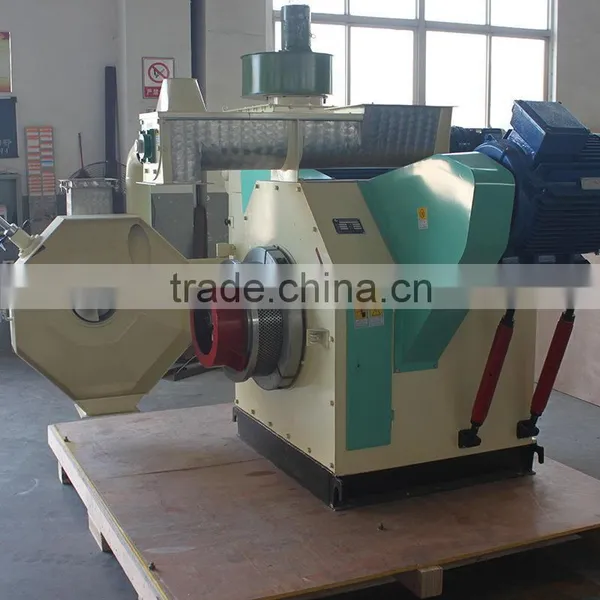

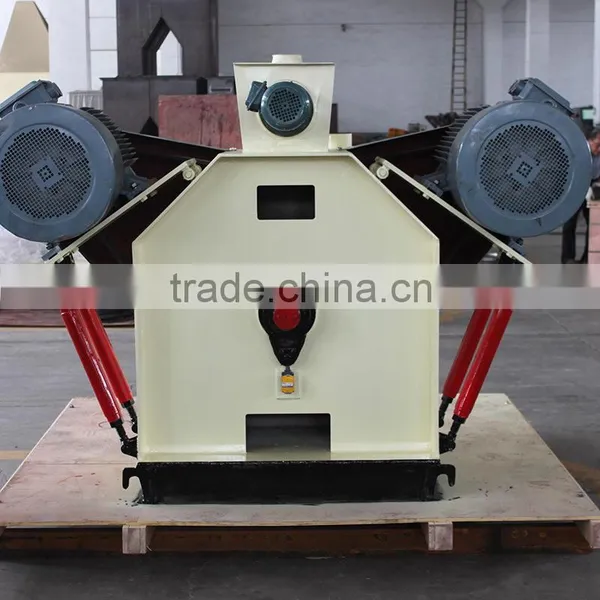

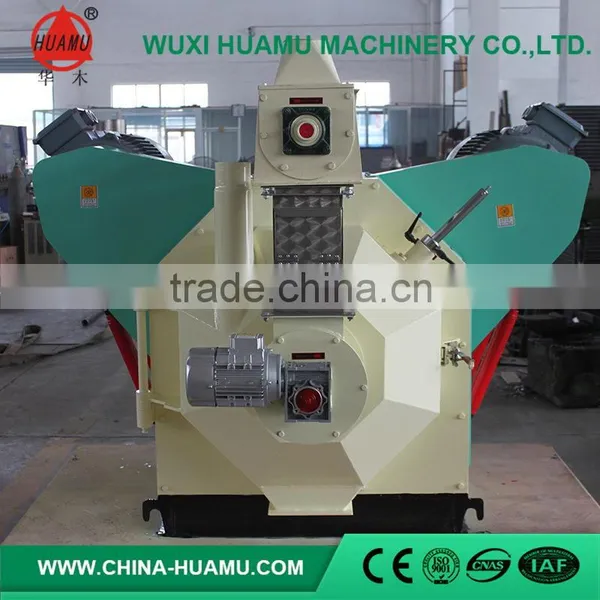

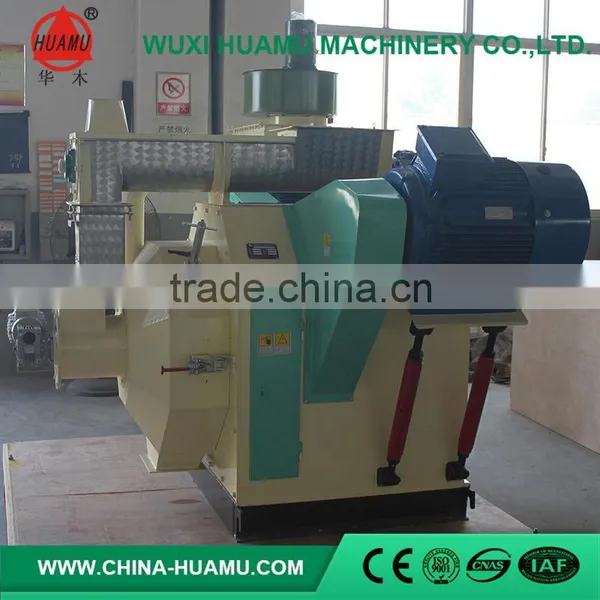

Made in china top level yellow pine wood pellet machine

Description of yellow pine wood pellet machine

1.Main power :30x2 kw

2.Feed power:1.5kw

3.Additive power :0.75kw

4.Output :500-800kg/h

5.Outsize:2100x1816x1930mm

6.The weight is about 3.0t.

7,inside diameter of die :350mm(die is made of stainless steel )

8.the raw material of ring die is made of stainless steel.

Products description:

This model uses double motor SPB strong narrow belt transmission system, has ideal transmission efficiency, rotation steady, output high, noise low,no oil leak pollution, maintenance cost low;
 This model has φ4-φ10mm many kinds of aperture and thickness link model; the user can wilfully select according to different need to obtain the best technology and economic efficiency;
 Fixed stainless steel pelletizing knife equipment, adjustment is more intuitionistic; Quick-discharge anchor ear link model, can match coordinated type pressure roller regulating mechanism and link mold hoisting equipment;
 This model uses transducer control material feeding, has over loading protector, outboard discharging mechanism.
 Push-brace oil pump lubricating gear, quick and saving labour, safe and reliable, can realize to refuel without stopping engine;
 It is suitable to wood waste, high quality animal and poultry feed, aquatic product feed and other materials pellet

 oversea service is available

Wuxi Huamu machinery is located in the Zhangjing town, Wuxi city where the transportation is convenient, and the geographical position is superior. The company is specialized in manufacturing feed machinery, design feed production line, installation and debugging.

Wuxi Huamu persists in the idea of customer first, common development, provides high quality products and considerate service for the feed industry. In the common development strategy, Wuxi Huamu cooperates with Wuxi Tai lake grain machinery co.,ltd, collects profession outstanding persons, and actively carries on technical cooperation with many graduate schools and colleges, produces a series of high standard products: Link mold pelletizer, waterdrop pulverizer, double axles paddle blade mixer, rotor drum mixer, and premix material additive complete unit, pellet animal and poultry feed, aquatic product material complete unit and so on.

Wuxi Huamu has experienced, high quality design, production and installation troops, which can design and manufacture 1-30 T each kind of powder material, premix material, pellet material and special aquatic product material projects.

  We believe that directs in the enterprise guideline customer first, common development, an unusual strength modernization enterprise will show in the front of the common people, HuaMu will be more magnificent tomorrow! ! !

Sincerely thank general new and old customers’ cooperation and support. welcome to visiting our company, creates refulgence altogether.

1. What are pellets and what are their main characteristics?

Pellets are made from fine dry biomass which was run through a pellet machine and formed into small compressed pellets of different sizes. Pellets can be used as animal feed, animal bedding or as bio fuel.

 2. What are pellets used for?

Feed pellets are used for animal feeding.While biomass pellets are used mainly for heating.

 3. What is the raw materials for feed pellet and biomass pellets?

Feed pellets are mainly of grain ,corn ,wheat ,soybean ,grass and so on.

Wood Pellets are mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc.

The raw material is renewable and sustainable. They are available locally, so the cost is affordable and predictable.

 4. What’s size pellets for feed pellet and what’s the size for biomass pellet?

The length and diameter of the pellets vary according to the size of the die in the pellet mill. Normally feed pellet diameter is 1.5-12mm,and biomass pellet diameter is 4-12mm,it depand on client’s demand. For the length ,it can adjusted by knife on pellet mill.

 5. Can I make pellets out of a huge supply of wood chips?

Yes, but you will have to grind them down to sawdust form before feeding into the pellet mill. Our wood hammer mills is able to meet your demand. And the moisture of sawdust should be about 13%.

 6. If I purchase machines from you ,will you guide us how to use?

Yes. We will send machine instruction to you with machines ,if you can’t understand it well ,we can explain it to you by tel or email.We will be happy to show you how to make pellets according to your needs. We are always ready to support you if you need help.

7.Can I visit your factory?

 Yes,of course ,welcome to visit our factory ,we are always waiting for you here. You can see our workshop and office and if you want to make a test for biomass pellet ,we can make it for you.
