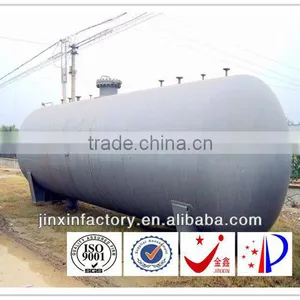

Help CenterStorage Tank,200 Cubic Meters of CO2 Low Temperature Storage Tank
Related Products
-
400 Gallon Liquefied Natural Gas (LNG) TankUS$ 1,200 - 100,000MOQ: 1 Set -
Lng Storage Tank/container Made by a Top Class Manufacturer in ChinaUS$ 1,200 - 50,000MOQ: 1 Set
-
Liquid Nitrogen Storage Tank Container Made by a Leading Design and Manufacturer in China TUV/ISO/GB StandardUS$ 8,000 - 100,000MOQ: 1 Set
-
TUV/ISO/GB Standard Vertical LIN Storage Tank Containers Made by a Leading Design and Manufacturer in ChinaUS$ 8,000 - 100,000MOQ: 1 Set
-
Customized 50m3 LIN/LAR/LOX Cryogenic Storage Tank Design & ManufactureUS$ 5,000 - 150,000MOQ: 1 Set
Specifications
1.Advanced technic good quality2.ISO,TUV certification
3.Recieve OEM&ODM orders
4.Storage tank/CO2 low temperature storage t
Jinxin chemical equipment since 1978 engaged in the manufacture of pressure vessel, pressure vessel and machinery processing industry has more than 35 years experience, is also in the design and production of petrochemical equipment co., ltd. Companies adhering to the spirit of innovation, combined with rich industry experience, is gradually becoming the industry backbone enterprises.We have a professional design team and offers complete services. We could produce complete all kinds equipment according to client’s drawing or design it according to customer’s requirement. Products successively passed the ISO9001:2008 and TUV certification, reached the international level, such as automatic argon arc welding, submerged arc welding and pipe expanding technology (heat exchanger) and so on, to make our products to remain competitive in the world, the products sell well in more than 20 international and regional.
Item |
Unit |
Parameters |
||
Products name |
|
LPG storage tank/LPG tank |
||
Products number |
|
JX2400-32 |
JX2100-25 |
JX1600-10 |
Filling medium |
|
LPG(propane) |
LPG(propane) |
LPG(propane) |
|
Overall dimentions (L*W*H) |
mm |
7508×2428×2600 |
7570*2124*2650 |
5940*1620*2040 |
|
Tank size (inner diameter*thickness*length) |
mm |
DN2400*14*7508 |
DN2100*12*7570 |
DN1600*10*5940 |
Volume |
m3 |
32 |
25 |
10 |
Net weight |
kg |
7410 |
5900 |
3165 |
Designing pressure |
Mpa |
1.77 |
1.77 |
1.77 |
Working pressure |
Mpa |
≤1.6 |
≤1.6 |
≤1.6 |
Working temperature |
°C |
≤50 |
≤50 |
≤50 |
Hydraulic test pressure |
Mpa |
2.22 |
2.22 |
2.22 |
Air test pressure |
Mpa |
1.77 |
1.77 |
1.77 |
Material of tank and accessory |
Q345R, SS,CS |
|||
Standard |
GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures |
|||
Accessory |
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
|||
lpg tank 20-40 tons
Item |
Unit |
Parameters |
||
Products name |
|
LPG storage tank/lpg tank |
||
Products number |
|
JX2400-50 |
JX3000-80 |
JX3200-100 |
Filling medium |
|
LPG(propane) |
LPG(propane) |
LPG(propane) |
|
Overall dimentions (L*W*H) |
mm |
11657*2428*3028 |
11866*3036*3610 |
13020*3740*3240 |
|
Tank size (inner diameter*thickness*length) |
mm |
DN2400*14*11657 |
DN3000*18*11866 |
DN3200*20*13020 |
Volume |
m3 |
50 |
80 |
100 |
Net weight |
kg |
10706 |
17900 |
22901 |
Designing pressure |
Mpa |
1.77 |
1.77 |
1.77 |
Working pressure |
Mpa |
≤1.6 |
≤1.6 |
≤1.6 |
Working temperature |
°C |
≤50 |
≤50 |
≤50 |
Hydraulic test pressure |
Mpa |
2.22 |
2.22 |
2.22 |
Air test pressure |
Mpa |
1.77 |
1.77 |
1.77 |
Material of tank and accessory |
Q345R, CS,SS |
|||
Standard |
GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures |
|||
Accessory |
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
|||
Our advantages: reliable quality, considerate service and great price.
TUV Certificate and ISO9001 Certificate
Some Manufacturing Equipment:
Testing Machinery:
Machine Name |
Brand & Model No. |
Quantity |
Number of Year(s) Used |
Condition |
|||
Micrometer |
500-600mm |
5 |
3.0 |
Acceptable |
|||
Universal Testing Machine |
WE-60 |
1 |
3.0 |
Acceptable |
|||
Constant Temperature Drying Oven |
101 |
1 |
3.0 |
Acceptable |
|||
Vernier Caliper |
100cm |
10 |
2.0 |
Acceptable |
|||
Box-type Resistance Furnace |
SX2 |
1 |
3.0 |
Acceptable |
|||
Photometer |
72 |
1 |
3.0 |
Acceptable |
|||
Impact Testing Machine |
JB-300B |
1 |
2.0 |
Acceptable |
|||
Chemical Equipment |
Heat Exchangers 30 Sets / Month, Storage Tanks 30 Sets / Month, Tower 10 Sets / Month, Reactor 15 Sets / Month, Machining Parts 180 Sets / Month |
Heat Exchangers 263 Sets, Storage Tanks 280 Sets, Tower 20 Sets, Reactor 50 Sets, Machining Parts 1,200 Sets |
|||||
Dear friends,
Welcome to our company !
We are the factory supply Chemical towers ,heat exchangers ,chemical reaction kettles/reactors and storage tanks, including LPG tank, liquid ammonia tank ,liquid oxygen storage tank, industrial boiler.
If you are interested in our product,please feel free to contact us!
Sales Manager Mr. Gary Liu.
Tel: 00 86-0373-5871333 / 00 86-0373-5871333 ( fax )
MOB: 0086-186 2553 5634
Skype:jinxin.machinery03
TradeManager: cn1501587641
