LVD-CNC electric sheet metal plate shear machine with DAC310 control system, automatic steel metal shear machine for sale
| Performance and Features |
| 1. The second generation of hydraulic shearing machine. |
| 2. Rack, blade frame is entire welded, vibration to eliminate inner stress, to maintain good accuracy. |
| 3. Use advanced integrate hydraulic system and good reliability. |
| 4. Use three-point support rolling guide to eliminate the support gap, improve cut quality. |
| 5. The clearance between the blades adjusted by hand wheel rapidly, accurancy and convenient. |
| 6. Rectangular blade. four cutting edges, and loong service life. |
| 7. Adjustable shearing angle to reduce deformation of the sheet. |
| 8. The upper blade frame use introversion structure, easy for blanking to improve the accuracy of production. |
| 9. With the sub-shear function, motorized backgauge, digital display. |
| Main Accessoies | Main Outsourcing Parts |
| CNC System | Dutch Delem310 |
| Hydraulic System | Germany Bosch/Hoerbiger |
| Servo System | China EDBO5 |
| Oil Sylinder | Jiangdu Yong Nut |
| Seals; Before the Carrier Aircraft | United States Parker; China |
| Main Electrical Components | Germony Siemens |
| Card of Joint Body | Germony EMB and United States Parker |
| Ball Screw; Linear Guider | Taiwan ABBA; Germony Lux LeDeXing |
| Main Technical Parameters | |
| Model | 12*3200 |
| Cutting Thickness(mm) | 12 |
| Cutting Width(mm) | 3200 |
| Stroke Times(min-1) | 6-20 |
| Backgauge Range(mm) | 1000 |
| Cutting Angle9(o) | 0 |
| Throat Depth(mm) | 125 |
| Motor Power(KW) | 18.5 |
| Dimension(mm)(L*W*H) | 3900*1900*2510 |
| Optional Configuration | ||
| CNC System | DAC310 servo control system |
1. Bright LCD display. 275*48 pixels 2. Backgauge, blade clearance, shearing stroke control 3. Simutaneous display of the real position and the program 4. Value of backgauge 5. Shear counting 6. 100 procedures 7. Panel type installation 8. Servo control/variable frequency speed adjistment control/double-speed AC motor control |
| DAC360 servo control system |
1. Panel based housing 2. Bright LCD screen 3. Backgauge control 4. Retract function 5. Cutting angle control 6. Cutting gap control 7. Stroke length limitation 8. Force control 9. Manual movement of axes |
|
| Feeding Device Feeding | CNC | |
| Care Feeding Device | Pneumatic care feeding | |
| Safety Device | Photoelectric protection, laser protection | |
| CNC System Installation | Rotatable suspension arm | |
| Photos of QC11K Series CNC Hydraulic Guillotine Shears |
|

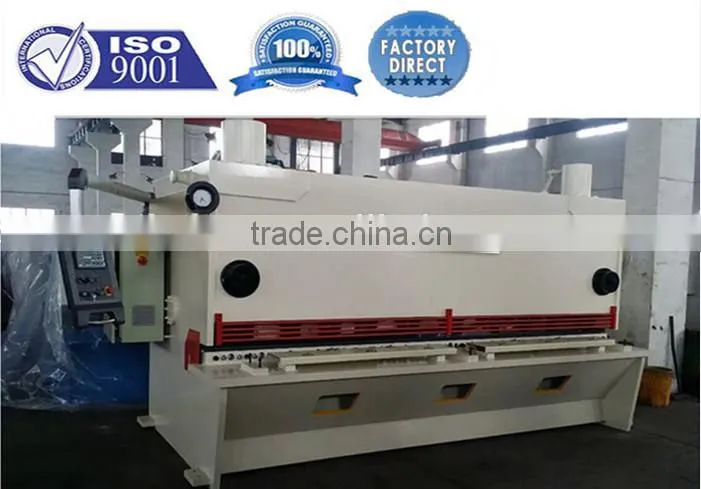

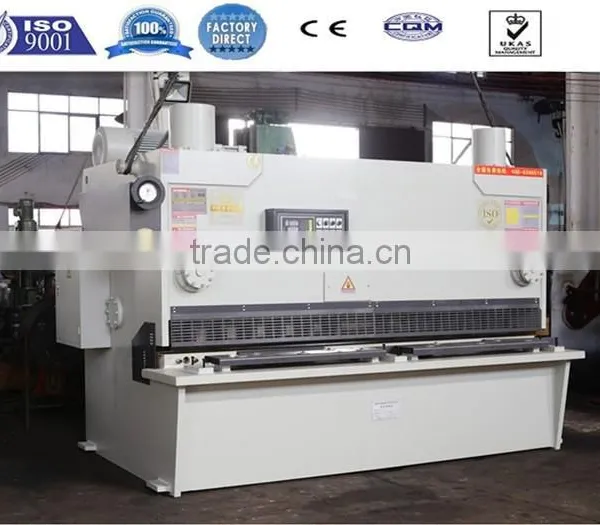

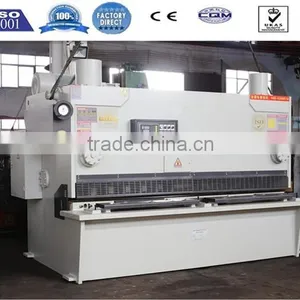

Whole view of electric sheet metal plate shear machine, automatic steel metal shear machine
|
|

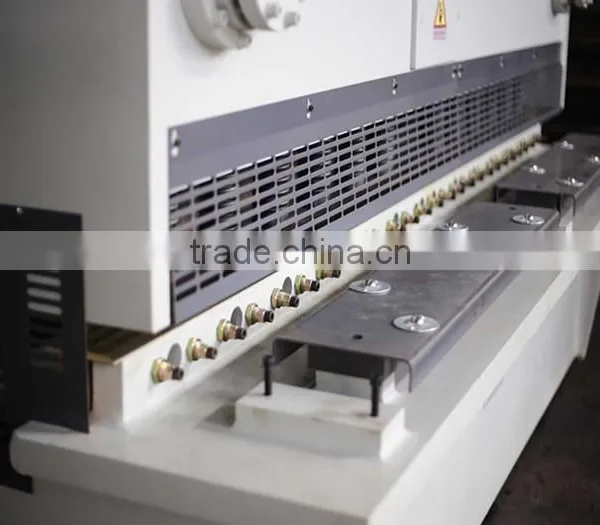

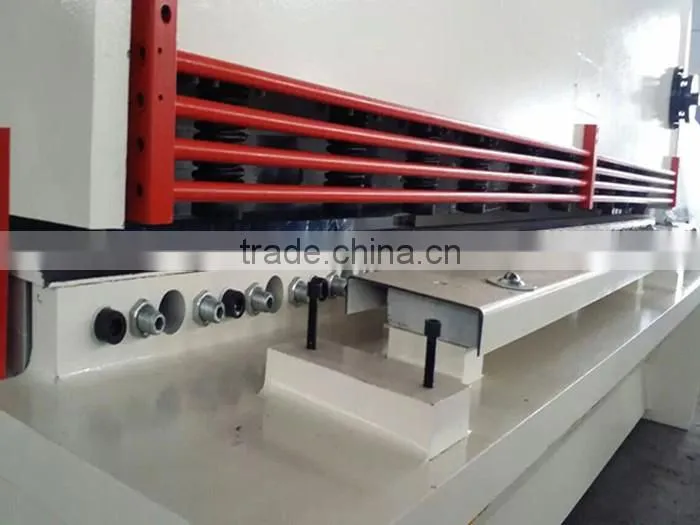

Work table and fence of electric sheet metal plate shear machine, automatic steel metal shear machine
|
|

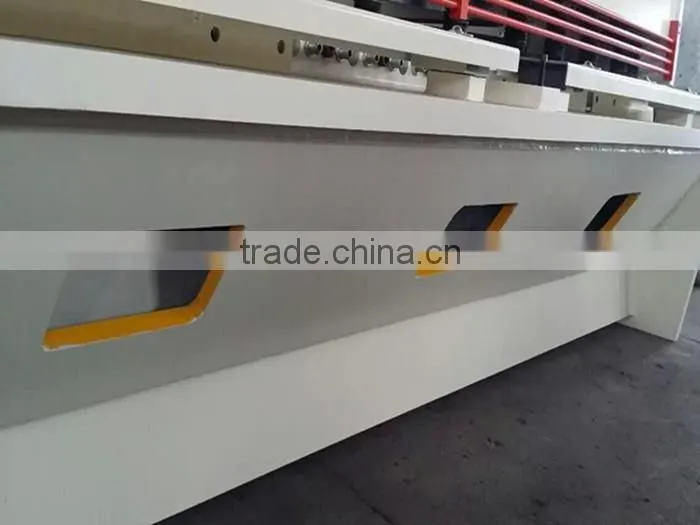

Bottem of electric sheet metal plate shear machine, automatic steel metal shear machine
|
|

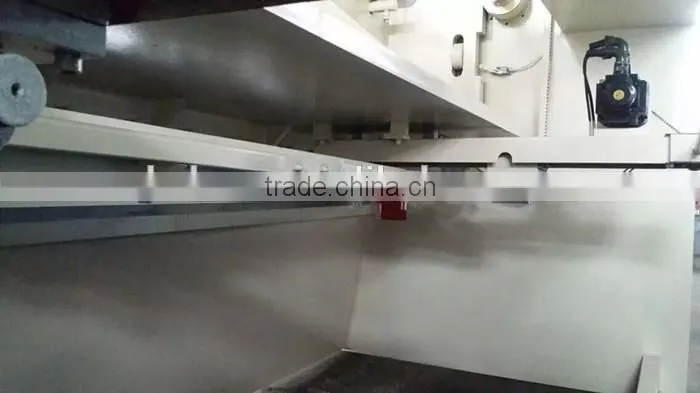

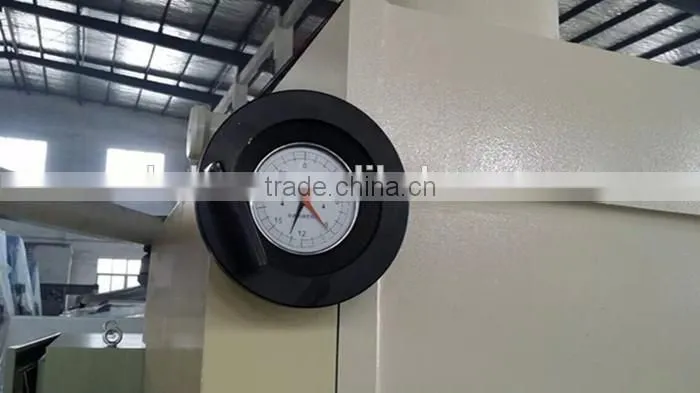

Manually adjust the blade gap
|
|

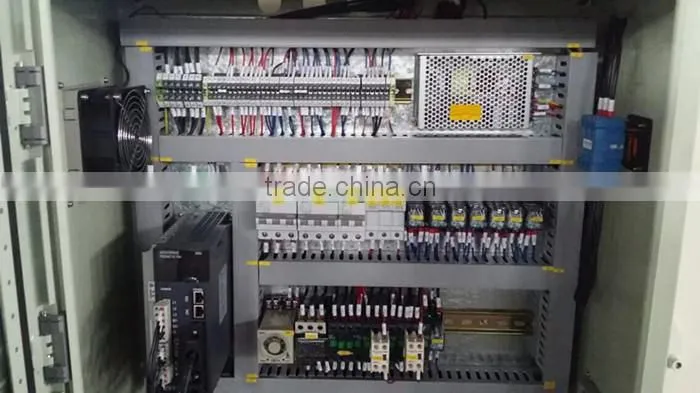

All electrical are from Germony Siements and backgauge drive from Taiwan Delta
|
|

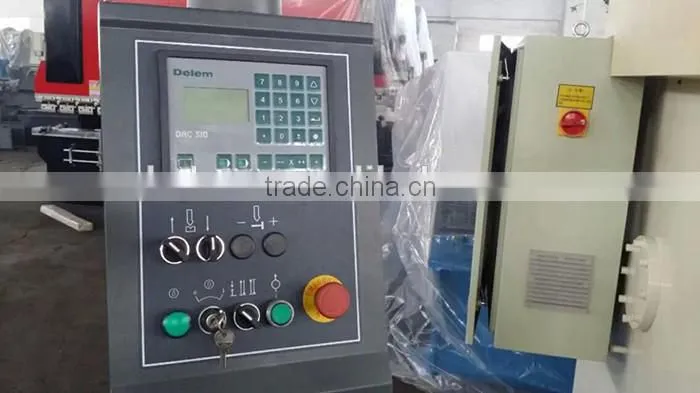

DAC310 guillotine shears NC control system
|
|

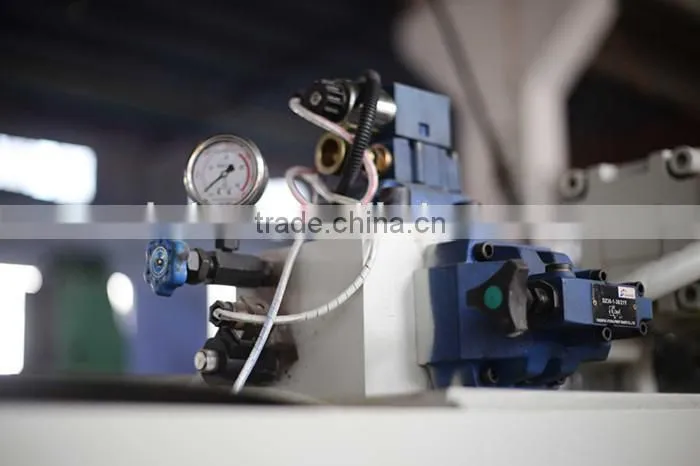

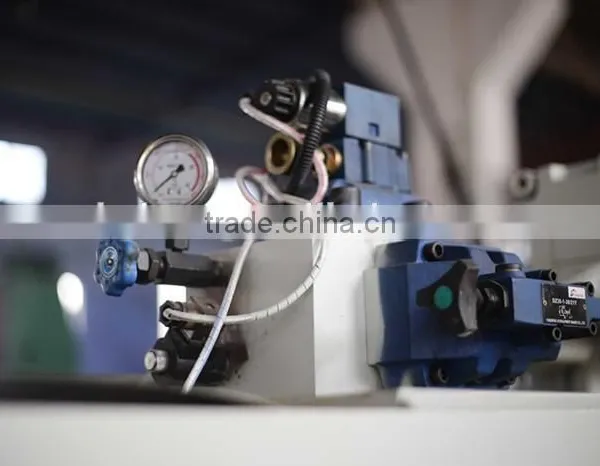

Hydraulic system from Germony BOSCH Rexroth
|
|

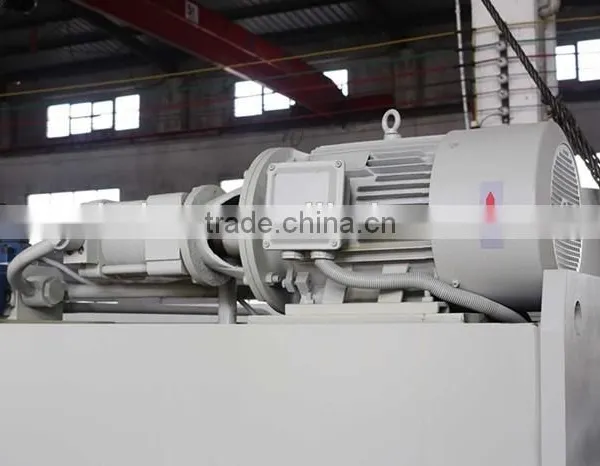

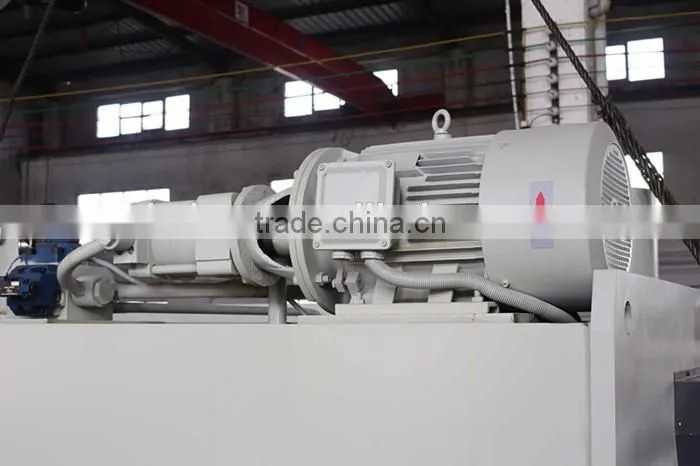

Hydraulic pump from Jiangdu Yong Nut
|
|

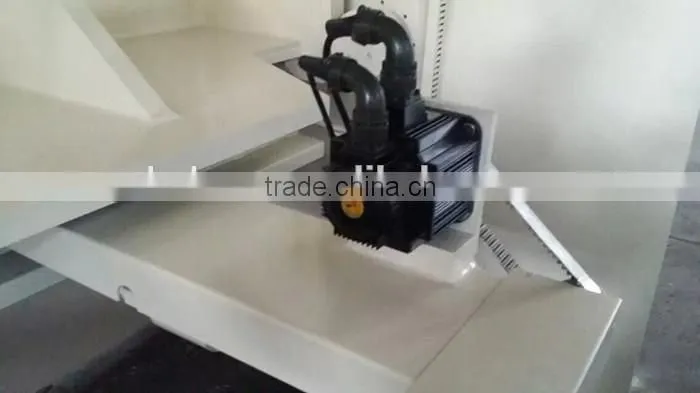

Servo motor from China EDBO5
|
|

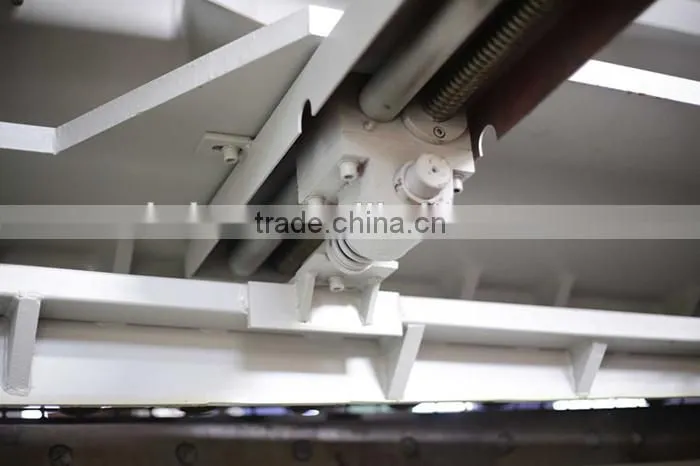

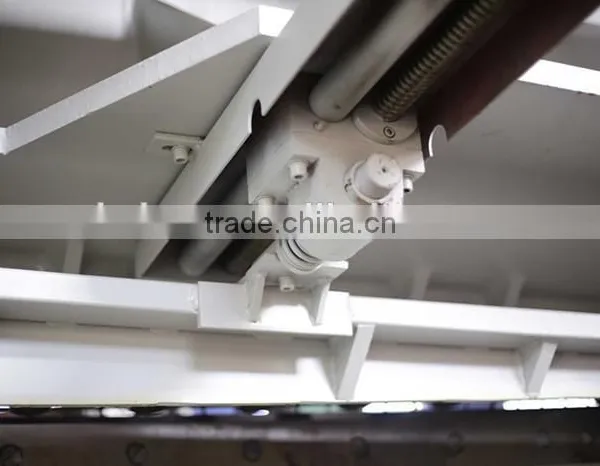

Backgauge ball screw from Taiwan ABBA
|

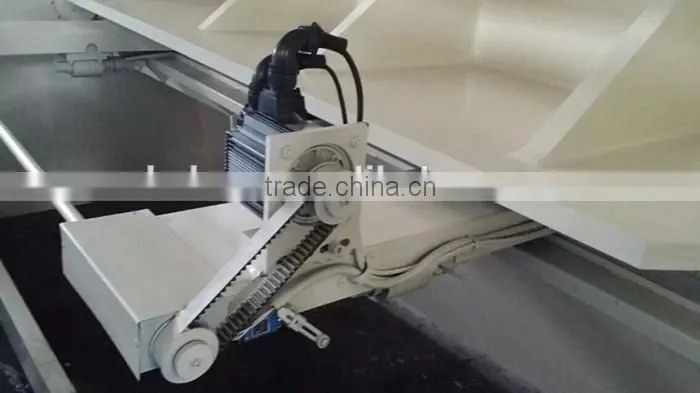

Backgauge of electric sheet metal plate shear machine, automatic steel metal shear machine |
|

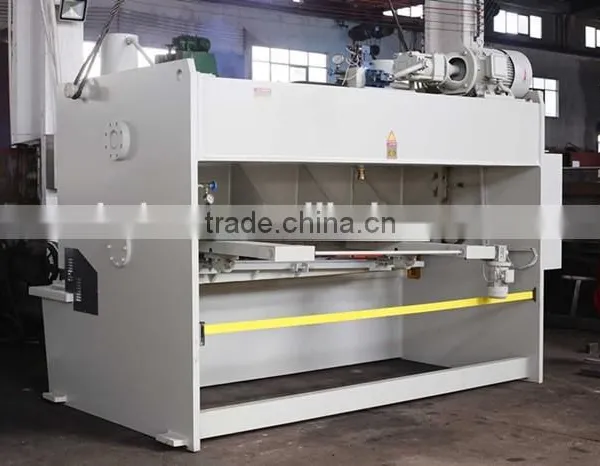

Back of electric sheet metal plate shear machine, automatic steel metal shear machine
|
| Packaging and shipping |
|
| Company Information |
|
Ma Anshan LVD CNC Machine Tool Co., Ltd is located in ancient capital Nanjing and the steel city Ma Anshan intersection point looks at the industrial park abundantly.The company specializes in CNC machine tools, forging machinery and equipment, machinery blade molds, machinery parts, mechanical presses, hydraulic machines, hydraulic presses, ironworker, mechanical Bending and others. |
