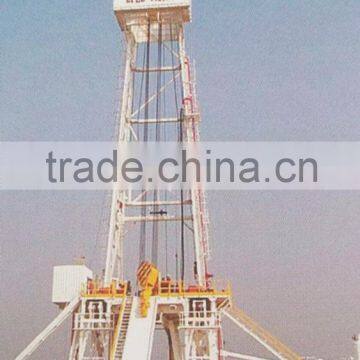

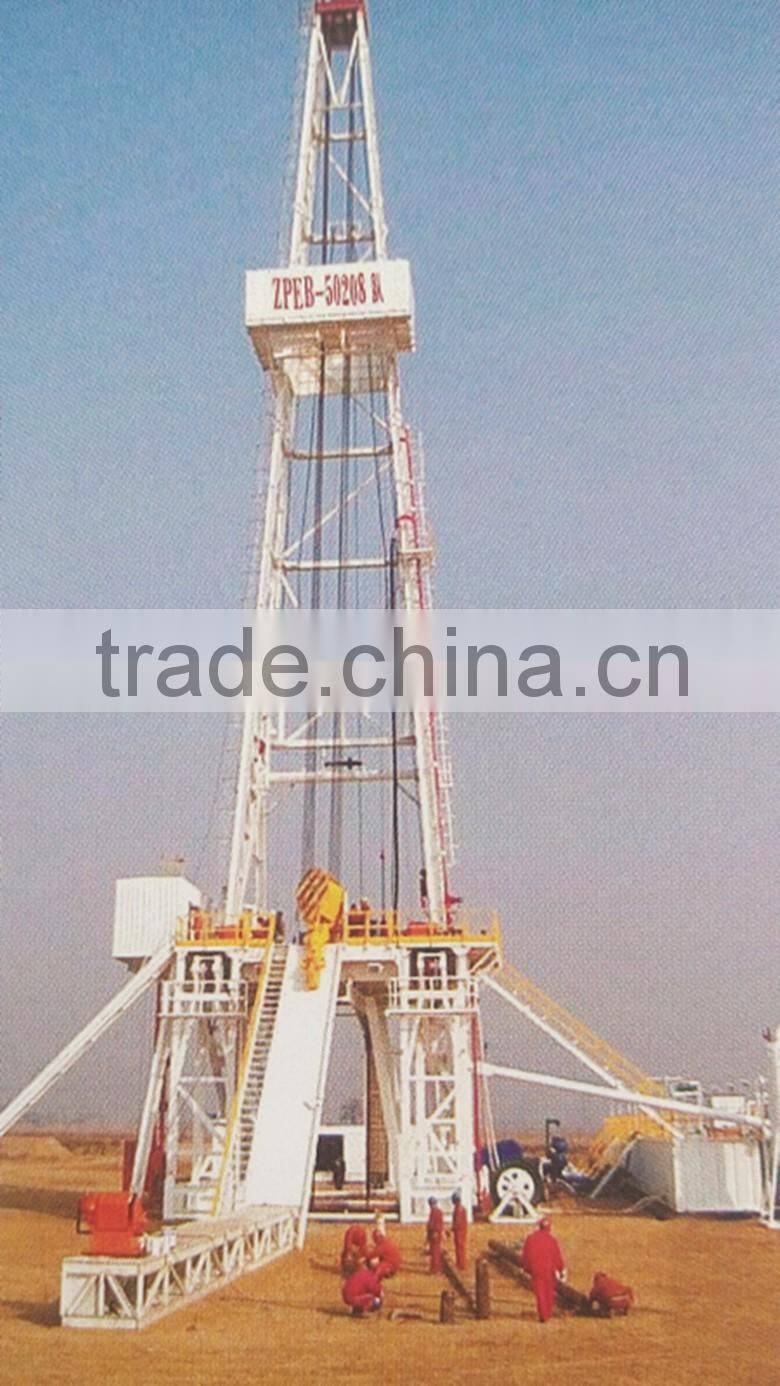

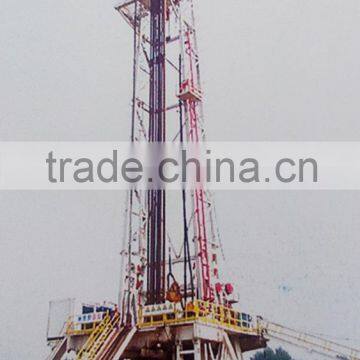

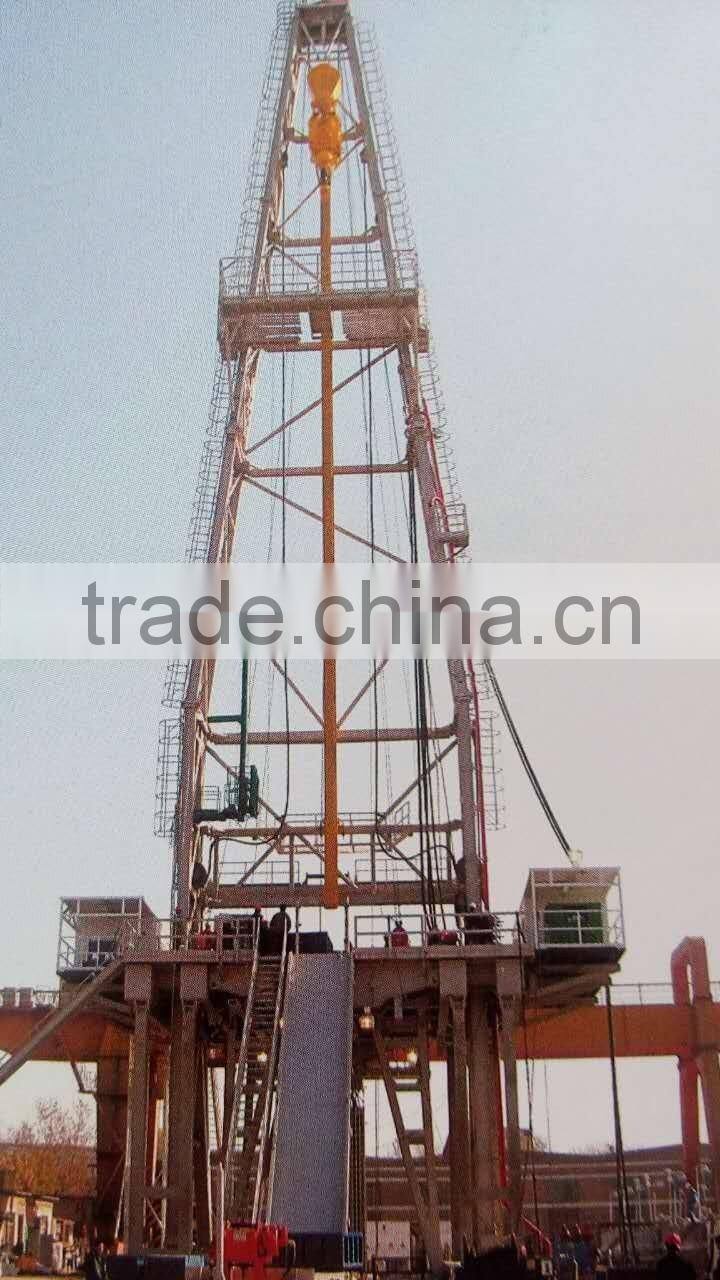

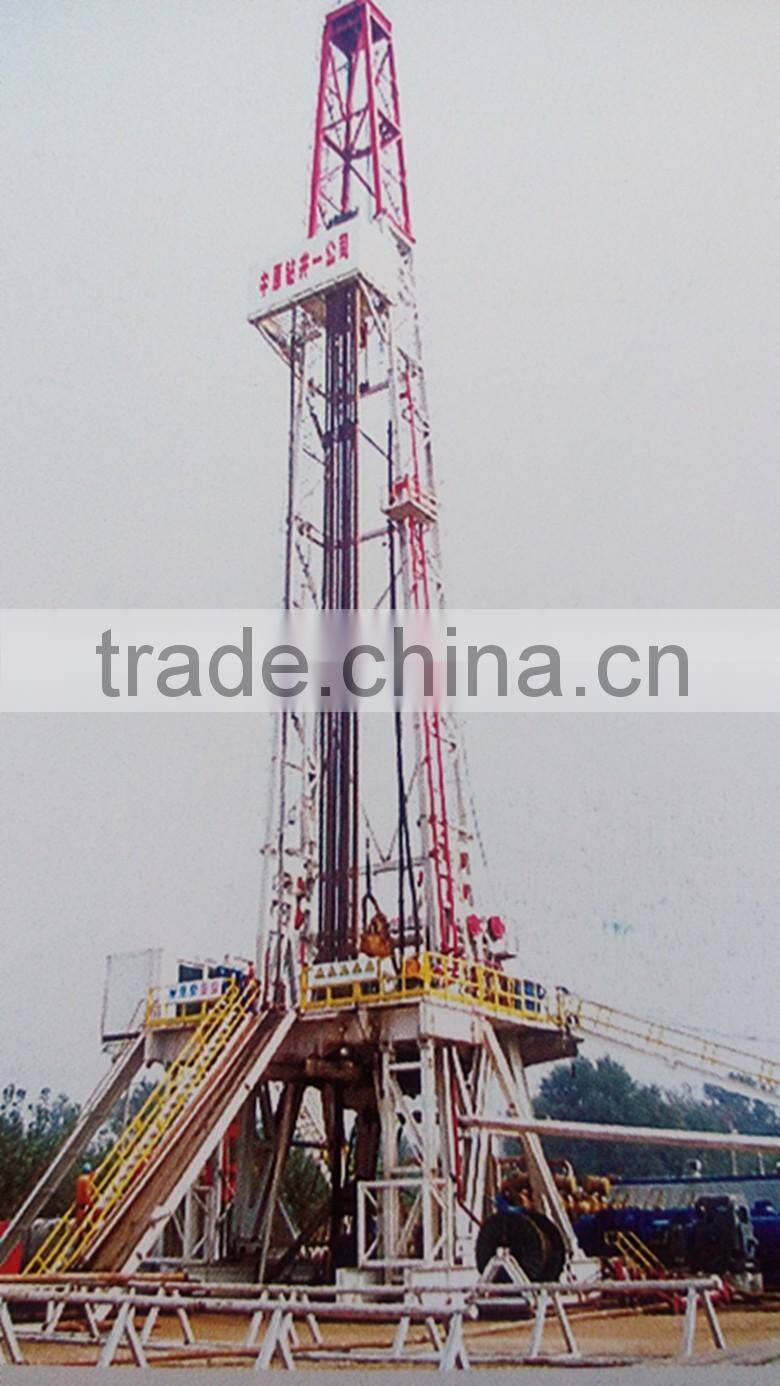

Oil drilling rig is used for exploration and developments of oil and gas well.
All products conform to API Spec 4F, 7K, 8A, SY/T5609-1999 "The Types and Basic Parameters of Drilling Rig" and related standards, and have obtained the certificate of authority to use the official API monogram.Electric-drive drilling rig:
The drive mode of DC electric-drive drilling rig is AC-SCR-DC, while AC electric-drive drilling rig is AC-DC-AC. It is equipped with diesel engine generator sets as the power source. Drawworks adopts hydraulic disc brake and the EATON auxiliary brake, etc. Drawworks, Mud Pump and Rotary Table can be driven by independent motors(Rotary table can also be compound driven). The mast is K type. The substructure is swing up or box-on-box type. The mast and substructure(swing up type) are installed at lower position and are raised integrally. The rig is controlled concentrically in driller's control cabin and achieves automatic bit feeding function. The AC-VFD drilling rig can carry out dynamic brake.
Combined drive drilling rig:
The rig's drive mode is that the diesel engines provide power, belt or chain compound box transmits power. Drawworks adopts sealed chain transmission structure with hydraulic disc brake and electromagnetic eddy current auxiliary brake, etc. Drawworks and Mud Pump are driven uniformly. Rotary Table is driven by one independent AC varied frequency motor equipped with VFD system. The mast is K type. The substructure (swing up type) are installed concentrically in driller's control cabin and achieves automatic bit feeding function.
Mechanical drive drilling rig:
The rig's drive mode is that the diesel engines provide power, belt or chain compound box transmits power. Drawworks adopts sealed chain tranmission structure with hydraulic disc brake or band brake, and electromagnetic eddy current auxiliary brake, etc. Drawworks and Mud Pump are driven uniformly. The mast is A type or K type. The substructure is swing up or box-on-box type. The mast and substructure(swing up type) are installed at lower position and are raise integrally. The drilling rig is controlled in driller's control cabin or driller's control console.

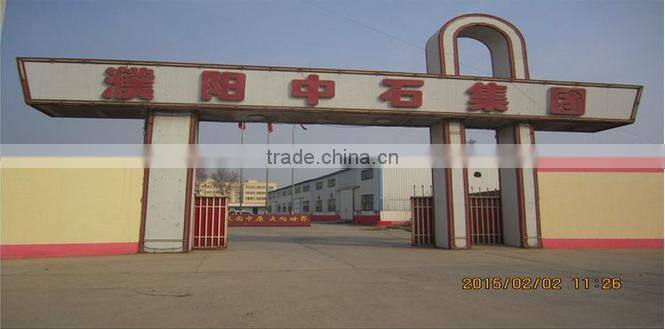

Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
