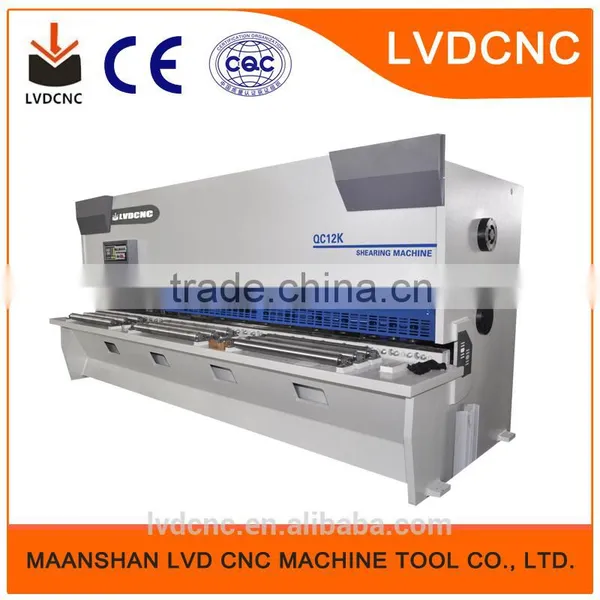

8X3200mm hydraulic guillotine shear,cnc hydraulic shearing machine,metal sheet cutting
Performance& features
Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
- The clearance between the blades adjusted by hand wheel rapidly,accurancy and convenient.
- Use advanced integrate hydraulic system and good reliability.
- Rack, blade frame is entire welded,vibration to eliminate inner stress,to maintain good accuracy.
Standard Equipment
1.Estun E21sNC control System |
| 2.Powered Back gaugeX-axis |
3.Squaring Arm and Front Support Arms |
| 4.HIWIN Ball screws & Polished rod with 0,05mm accuracy. |
| 5.Germany Bosch-Rexroth Hydraulic |
| 6.Hydraulic &Electrical overload protection |
| 7.Cutting Line Illumination and wire for shadow line cutting |
| 8.Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si) |
| 9.Germany Siemens Main Motor |
| 10. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel |
| 11.Telemecanique/Schneider Electrics |
| 12. Rapid and precise blade clearance adjustment by single handle on the side frame |
Safety Equipment
1.Safety Standards(2006/42/EC) |
| 2.Front finger Protection(Safety light curtain) |
| 3.Back metal safe fence with CE standards |
| 4.South Korea Kacon Foot Switch(Level 4 of safety) |
| 5.Safety relay with Monitor the pedal switch and safety protection |

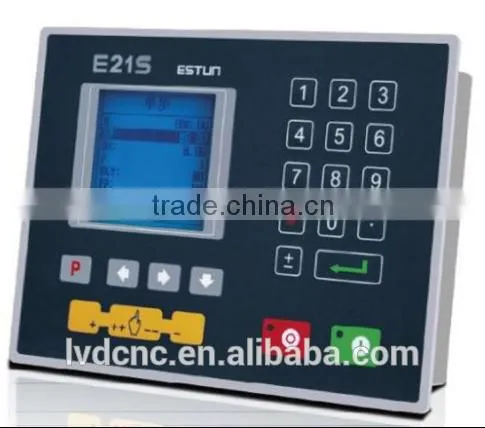

Estun E21s NC Control system
|
|
Parameter of QC12Y-8x3200mmHydraulic Shearing Machine
| Model | QC12Y- 8x3200mm |
| Tickness | 8mm |
| Width | 3200mm |
| Cutting angel | 1°30' |
| Material Intension | ≤450KN/cm |
| Rear stopper adjustement | 20-750mm |
| Travel times | 8mm |
| Hold downs | 14mm |
| Main power | 7.5KW |
| Overall dimension(LxWxH) | 3860x1700x1700mm |
| Weight | 7200KG |

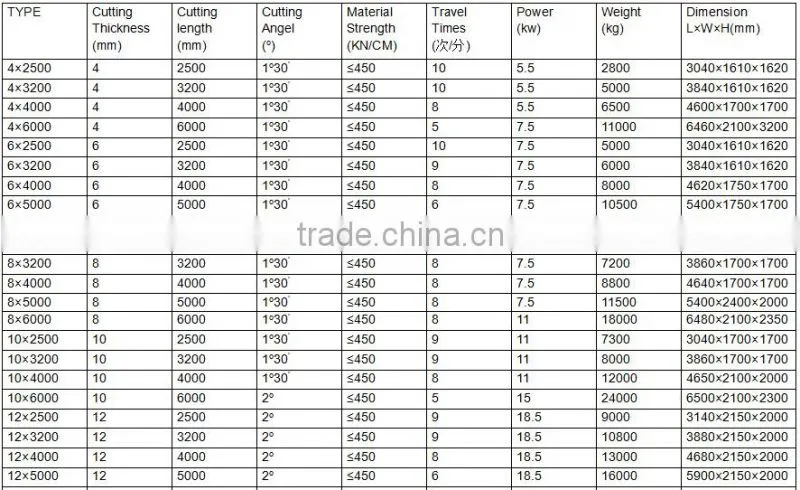

Specification of QC12Y
∴Choose the model that you need and custom made is available.
How to choose the model???
Please tell us the three details:
- the maximum thickness of the plate to cut
- the maximum length of the plate to cut
- the material of the plate(stainless steel, polyurethane...)

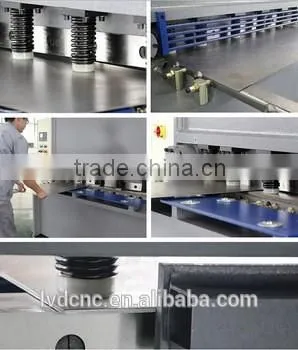

Images of mainly equipements

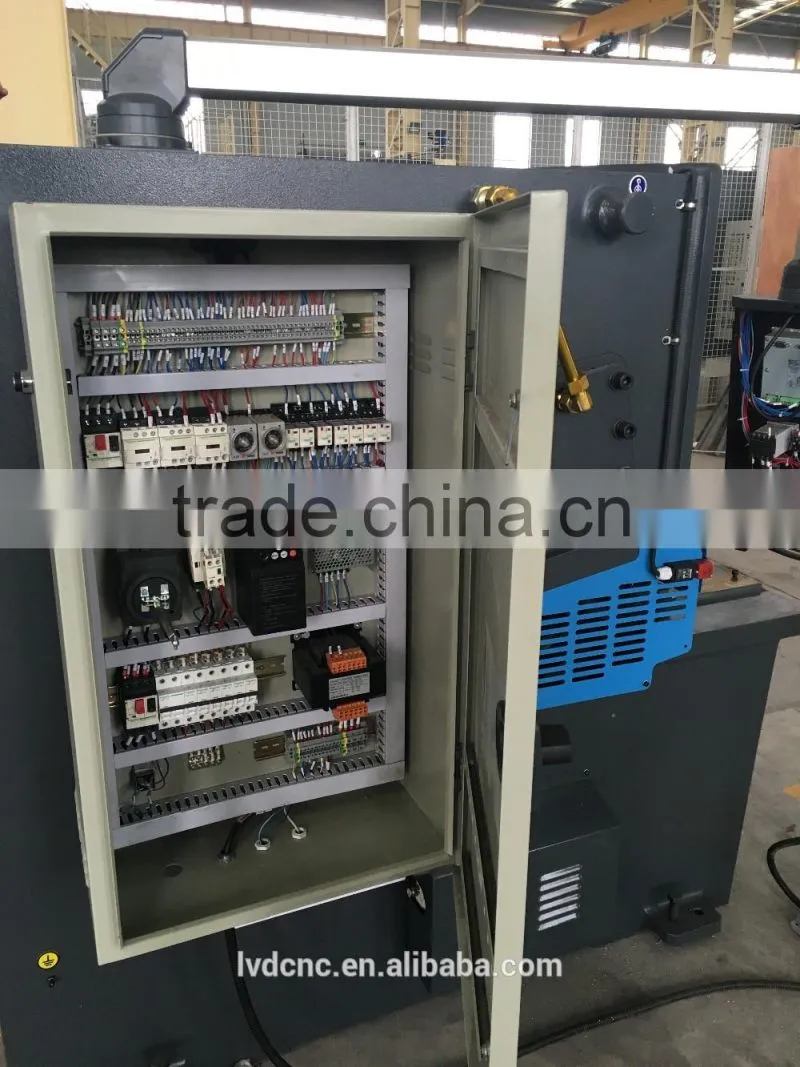

1.Schneider Electrical from French

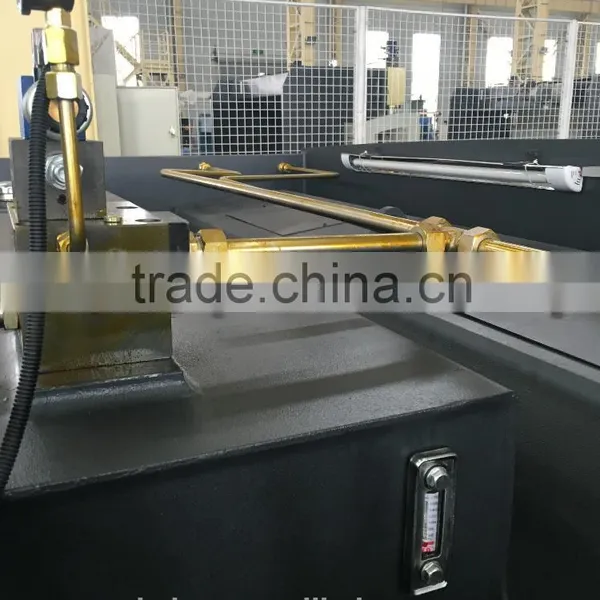

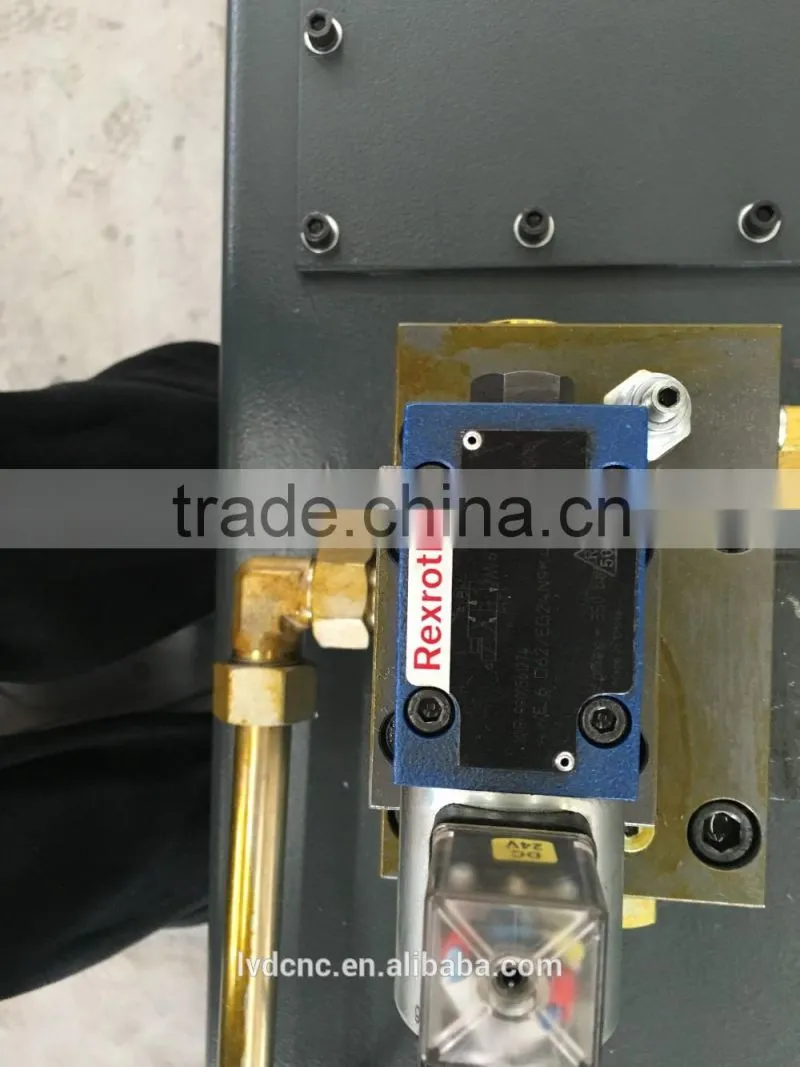

2.Germany Bosch-Rextith Hydraulic System

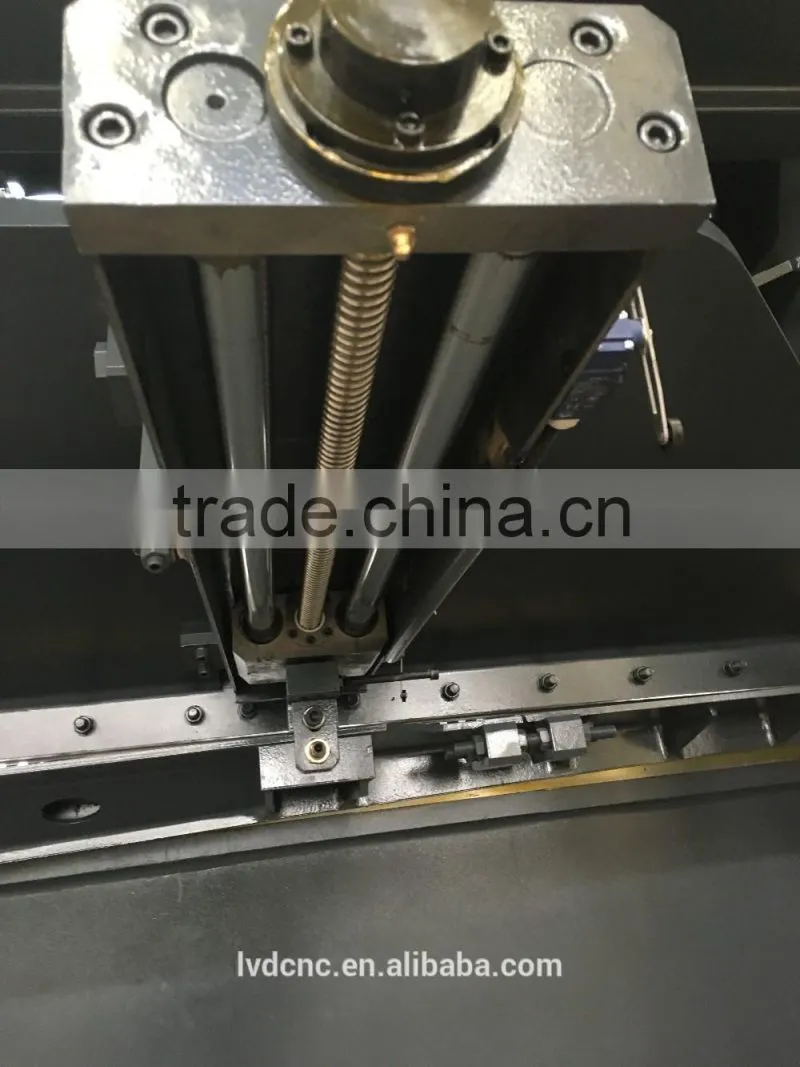

3.TaiWan HIWIN Ball screw/Polished rod

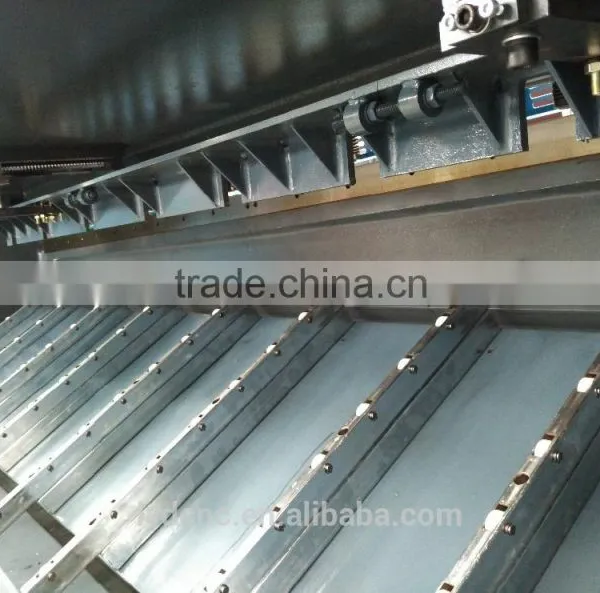

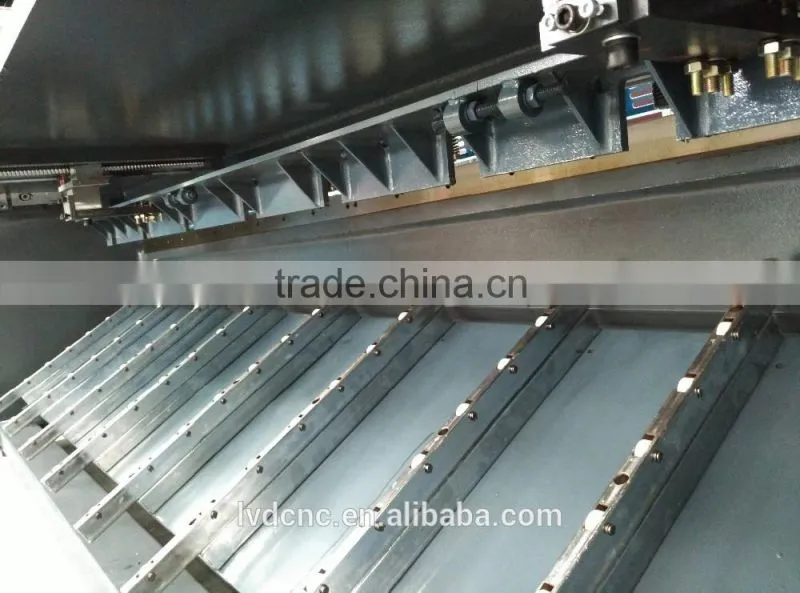

4.Backgauge Pneumatic Support

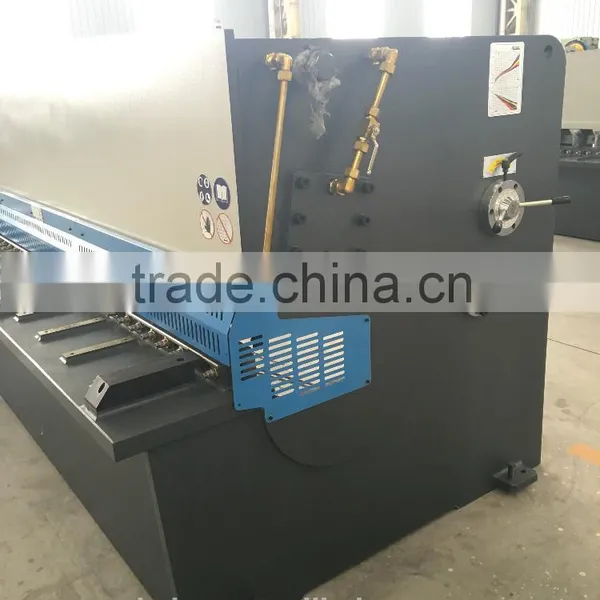

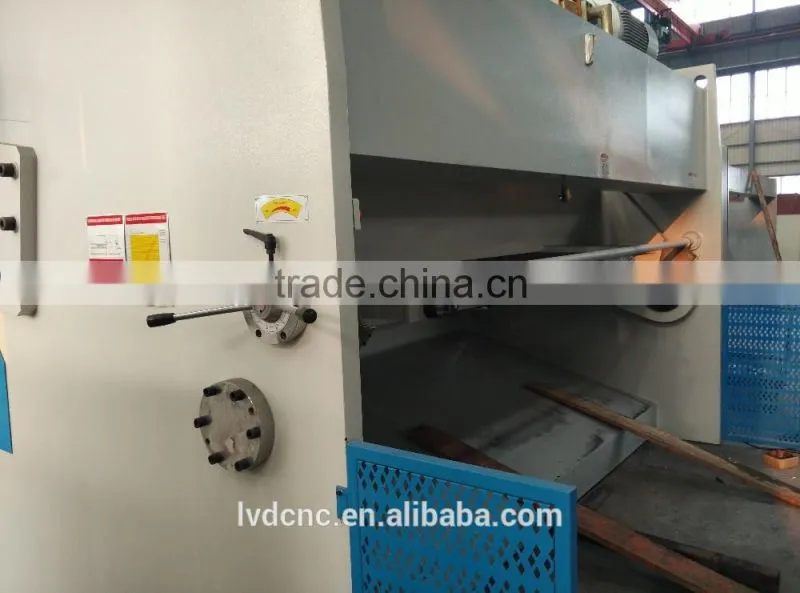

5.Manual Blades Gap Adjust Wheel

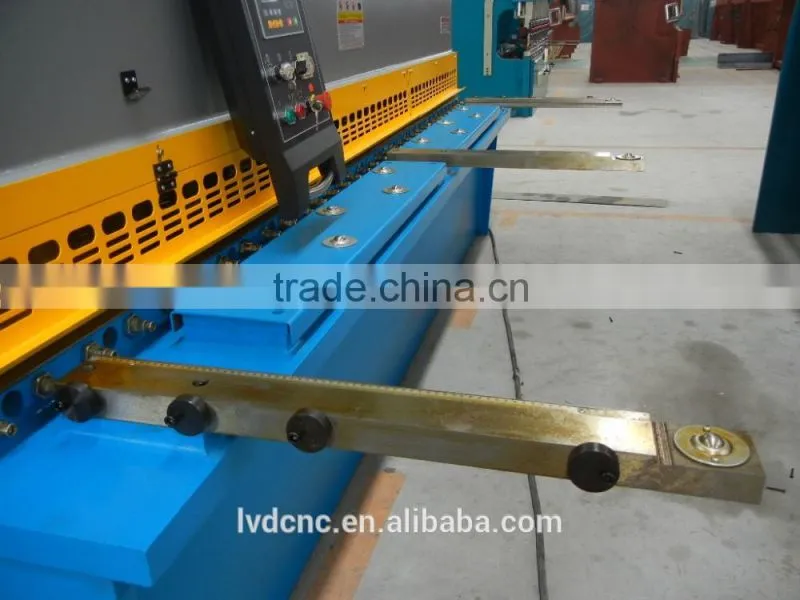

6.Squaring Arm and Front Support Arms

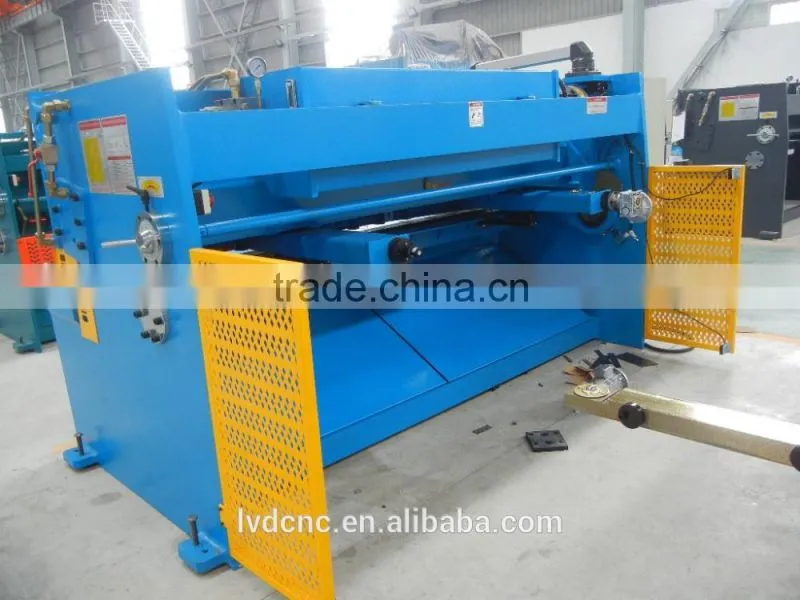

7.Back metal fence with CE standard

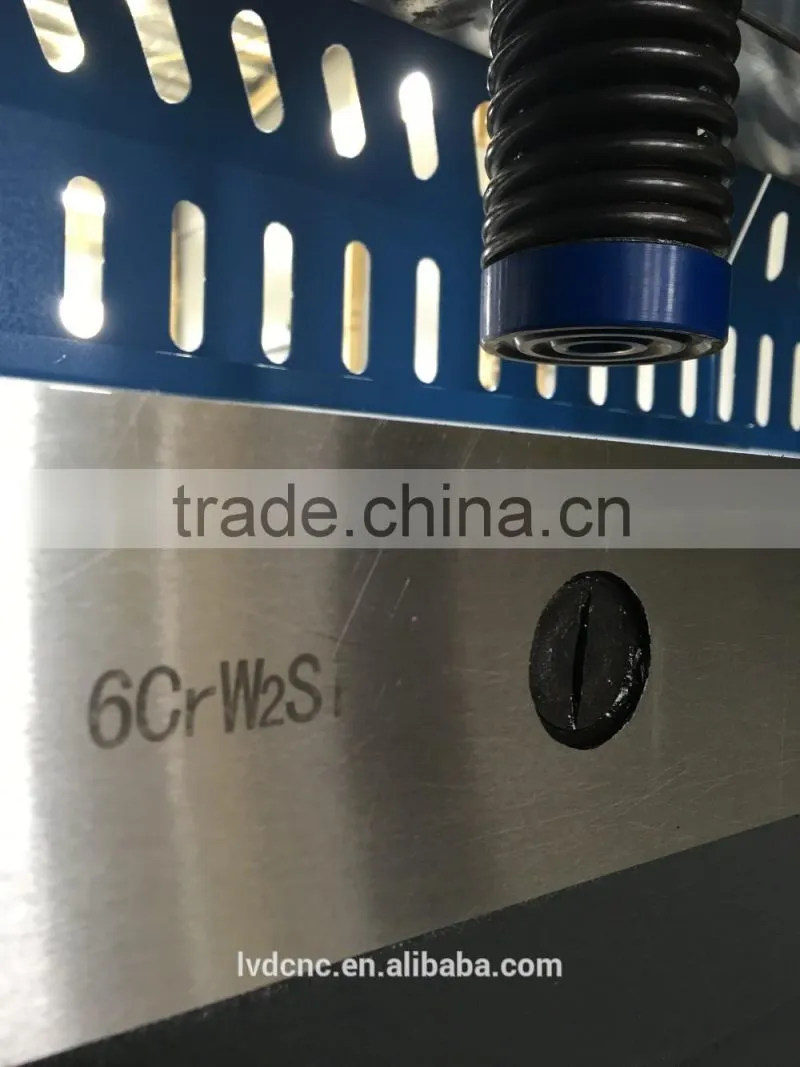

8.Blade of cutting

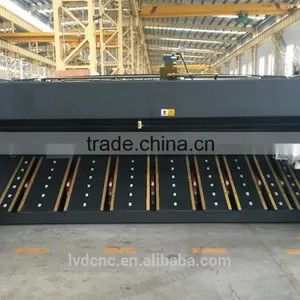

Our Working live-action
8X3200mm hydraulic guillotine shear,cnc hydraulic shearing machine,metal sheet cutting
Package Type: wooden package or can be adjust for the machine's safety.
Container Packaging: Wrapped in plastic to protect from getting wet.
| Packaging Details: |
1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. 2)before loading,stable package,professional and skilled loader reduce damage of product during transport. 3)after loading,our professional documentary staff will follow the order till the product departs from port. |
| Delivery Detail: | 30 days |
|
|
8X3200mm hydraulic guillotine shear,cnc hydraulic shearing machine,metal sheet cutting
