Home > Products > Tact switch > Beautiful design touch switch lighting

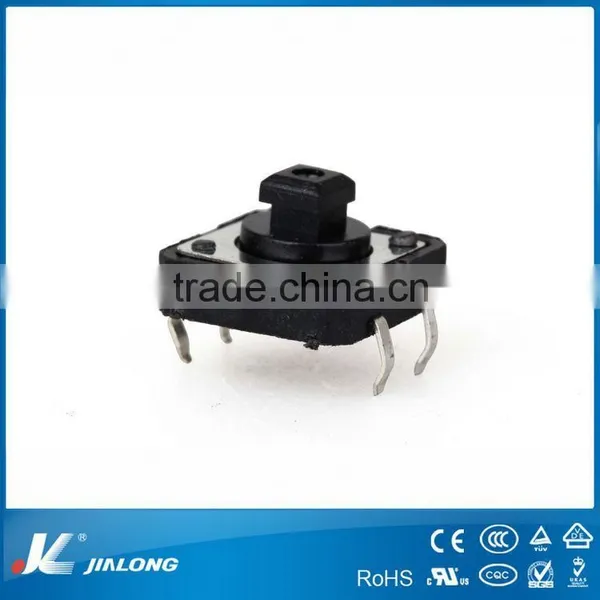

Beautiful design touch switch lighting
- 100000 Piece / Pieces per Month
- Ningbo or Shanghi
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JL | |
| Model Number | TC-1212AT | Max. Current | 0.1A | |
| Max. Voltage | 12V |
Product Description
Specifications
Beautiful design touch switch lighting1.RoHS approval, UL,VDE,ENEC,CSA,TUV,CE,EMC,etc
2.Small and mixed order acceptable
Beautiful design touch switch lighting
Color | decided by customer |
Rated load | DC 12V 0.1A |
Contact Resistance | ≤30mΩ |
Withstand Voltage | AC 250V(50HZ)/Min |
Insulation Resistance | ≥100MΩ |
Switching Life | 50000-100000 cycles |
Temperature | -25- +85°C |
Actuating force | 1.3±0.5N |
MOQ | 1000pcs,mixed order acceptable |
Shipping method | 1.Small quantity ship by Express company,such as DHL,Fedex,UPS etc.
2.Fob NINGBO,FOB SHANGHAI,CIF |
PS:1.we can provide you with full kind of touch switch lighting for your selection. 2.10 pcs Free samples available. 3.The discount depends on your order quantity. 4.More than 2,000 models of switches and sockets. 5.We will send you quoation and detailed information within 3 days after receive your inquiry! | |
