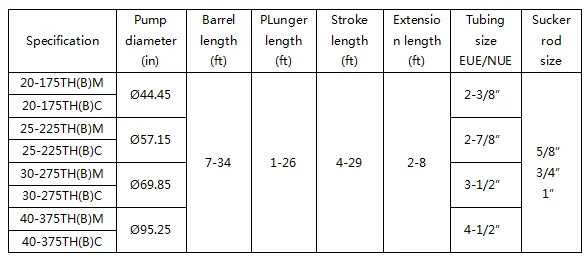

Pump Specifications:
API-TH,Tubingl, Heavy Wall Barrel, Tubing Pump
Product Description:
API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump
The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.
In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.
Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

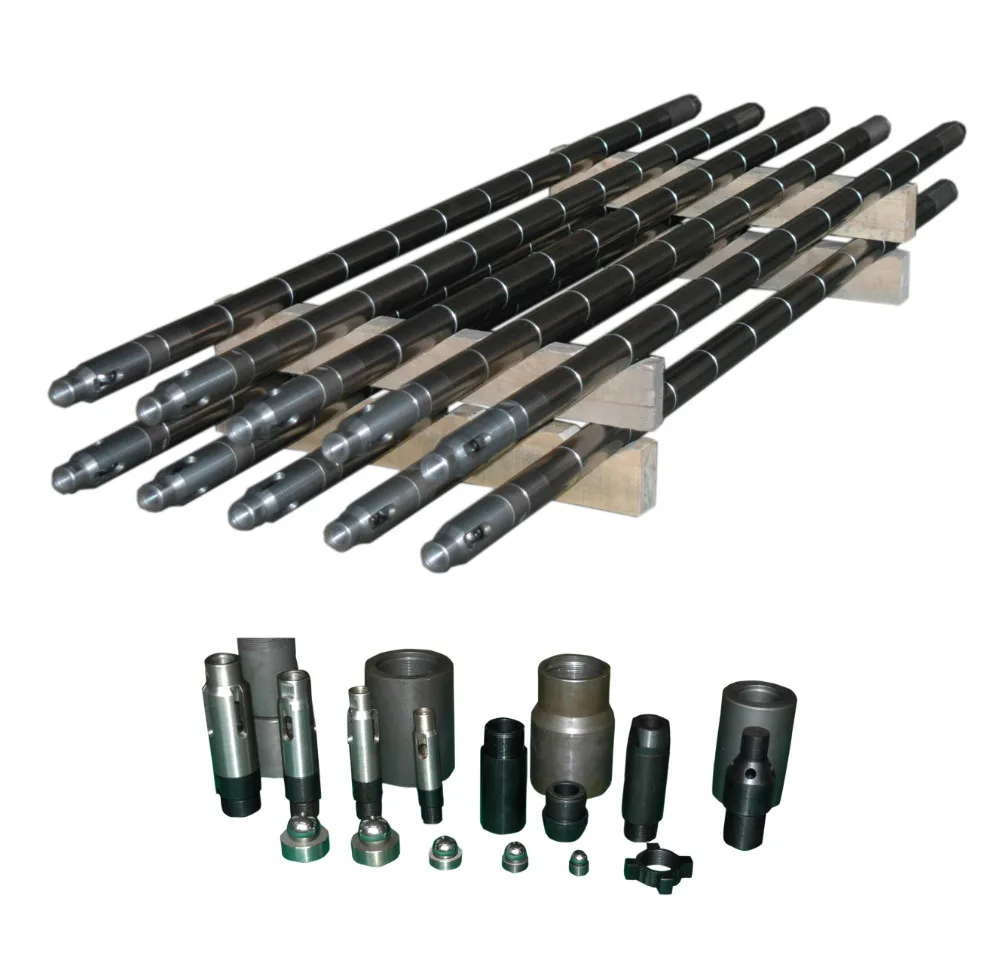

Pump parts
All pump parts are manufacturerd strictly according to API 11AX standard.

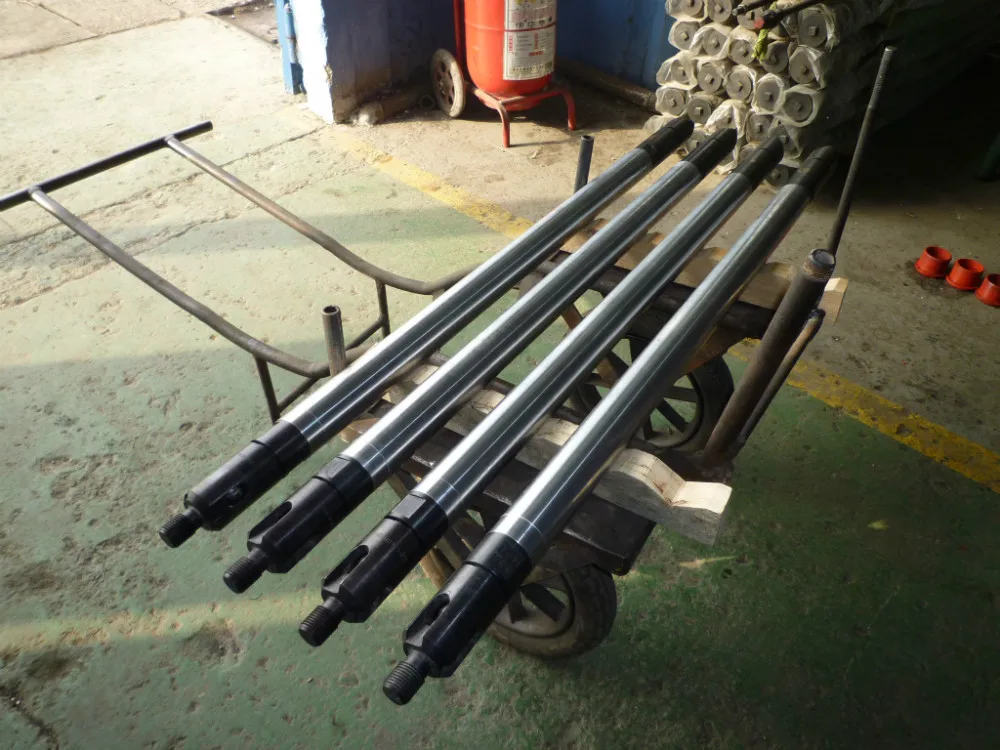

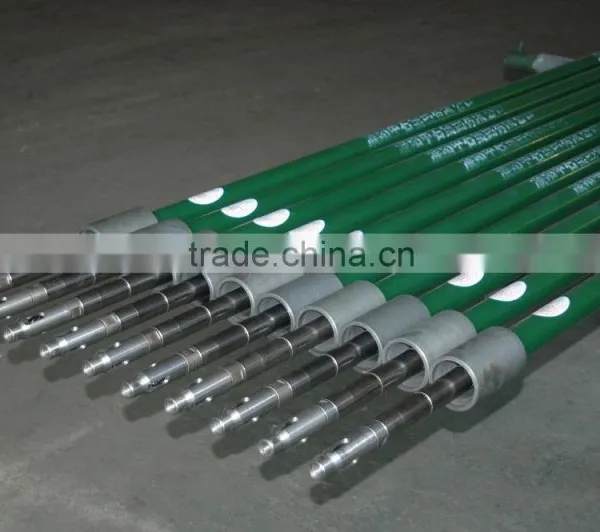

Plunger Assembly
Nickle sprayed steel plunger is most popular.(Doulbe) chrome plated plunger can be also made.

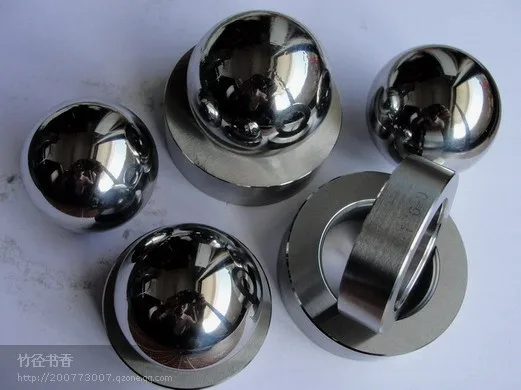

Valve pair
Various material and sizes of valve ball and seat can be made including SS,TC,ST,TT,TN,etc.

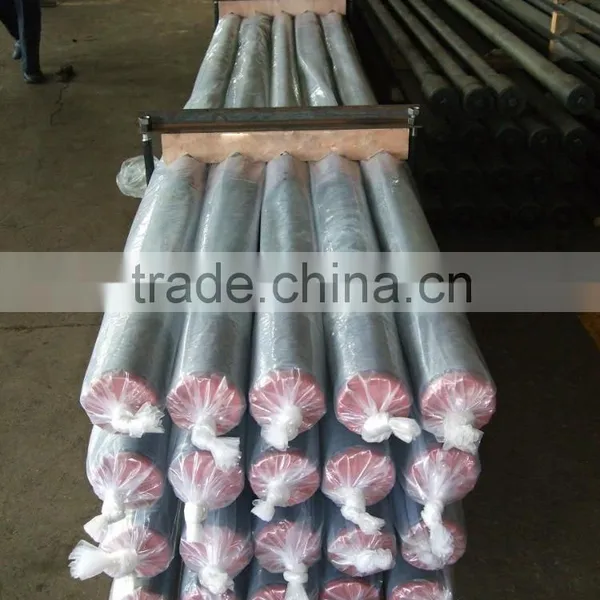

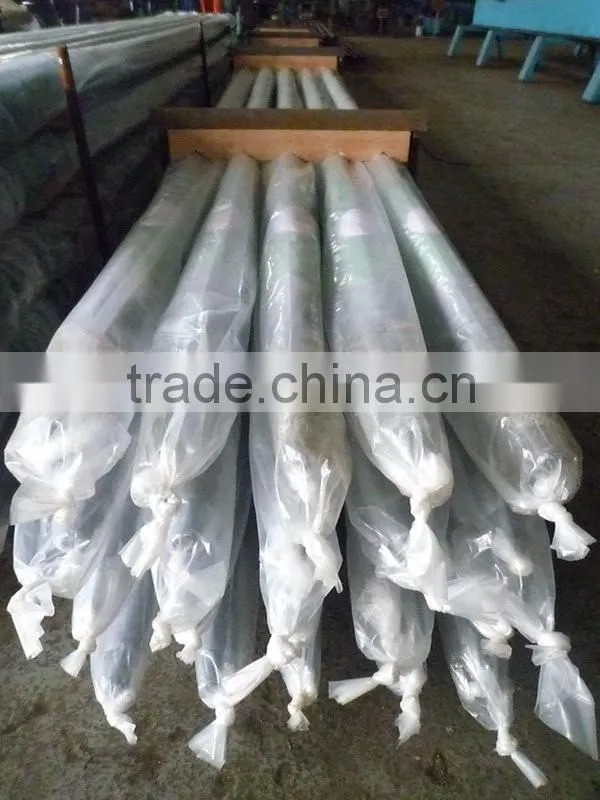

Use vacuum plastic bag to keep them from water,use wood&steel frame to make pumps not move

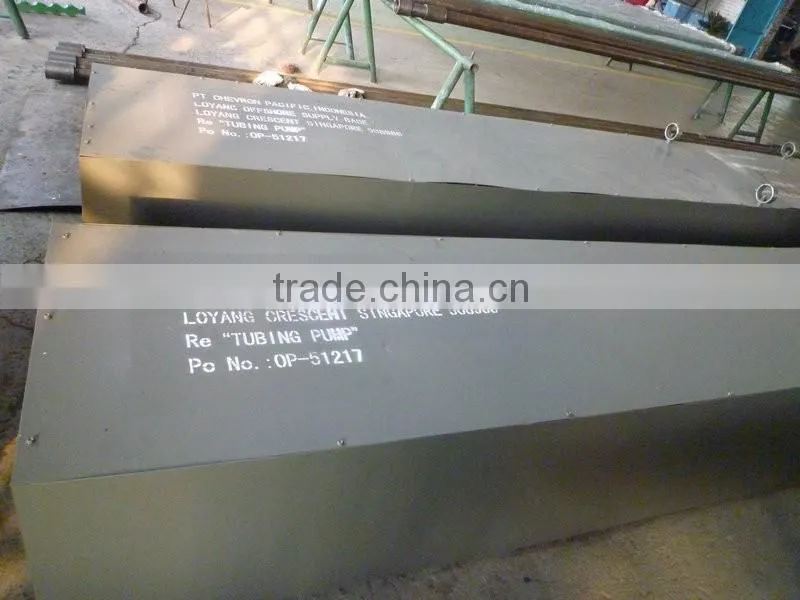

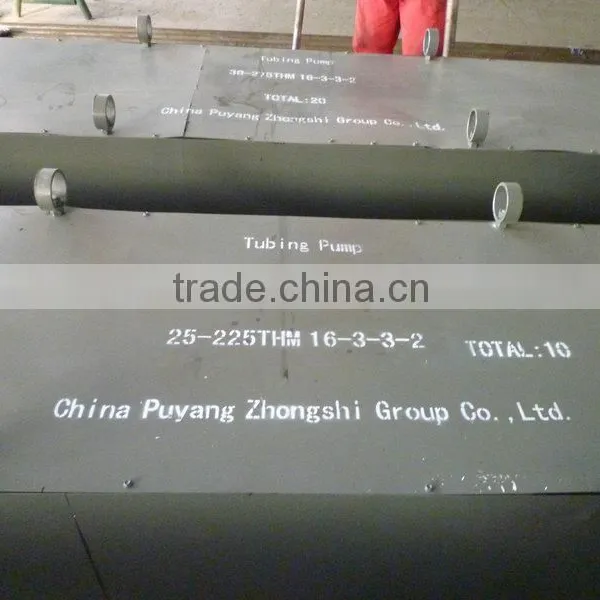

Welded steel case with anti-rust painting can prevent corrosion from sea water.Welded ring easy to load.

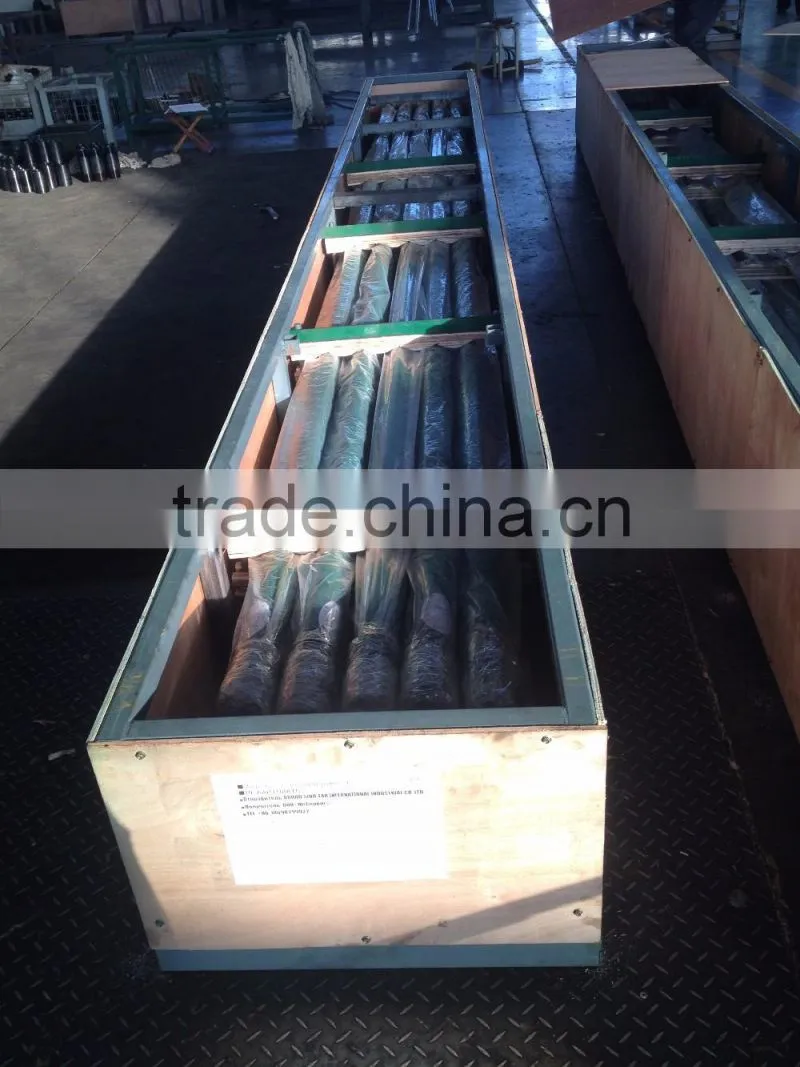

Standard export plywood case with pallet is light to transport and also seaworthy.No need fumigation.
