flashlight push button switch 12*12mm 2P on-off mini flashlight electrical equipment push button micro switch
- shanghai/ningbo
- T/T Credit Card
You May Like
-
flashlight push button switch 12*12mm 3P on-on-off mini flashlight electrical equipment push button micro switch
-
flashlight push button switch 12*12mm 3P on-on-off mini flashlight electrical equipment push button micro switch
-
3P on-on-off push button switch
-
flashlight button switch 2P on-off push button switch
-
flashlight button switch 4P on-off-on-off push button switch
-
flashlight button switch 3P on-off-on-off push button switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JL | |
| Model Number | KAN16-1202C | Max. Current | 0.5A | |
| Max. Voltage | 50V |
Product Description
Specifications
push button switch , electrical push button switchRating 0.5A 50V DC
12*12mm
2P on-off
Our main products:
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.
Switch, electric switch,push switches, push button switch, electrical switch ,waterproof pushbutton switch
Kan16-1202C
push switches, push button switch, electrical switch
Rating 0.5A 50V DC
12*12mm
2P on-off
Environmental Temperature: -25~+70oC
Relative Humidity:(40oC) ≤95%
Contact Resistance: ≤0.03W
Insulation Resistance: ≥100MW
Withstand Voltage: AC 250V 50Hz/1min
Switch Life:>100,000 cycles
Travel: 100~300gf
PS. Free Samples are available

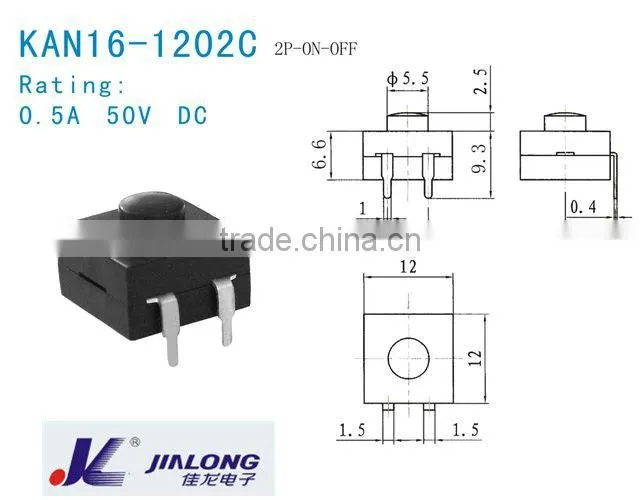

1. Drawing
2.Factory info. :
3.Certification:
4.packing details:
5. Products Recommended
6. Push button switch search rank in Alibaba
