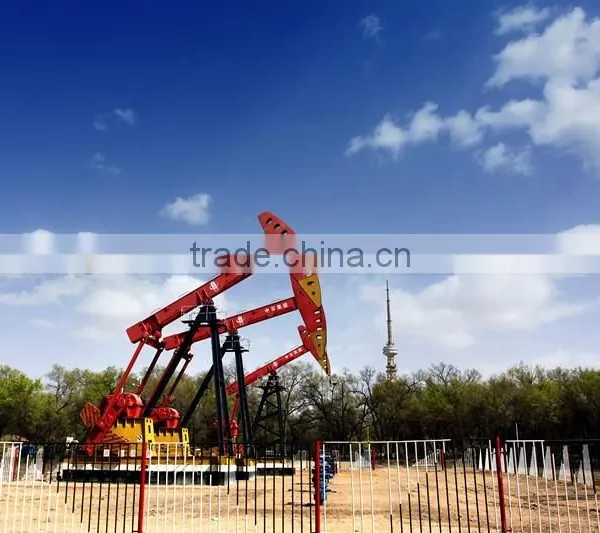

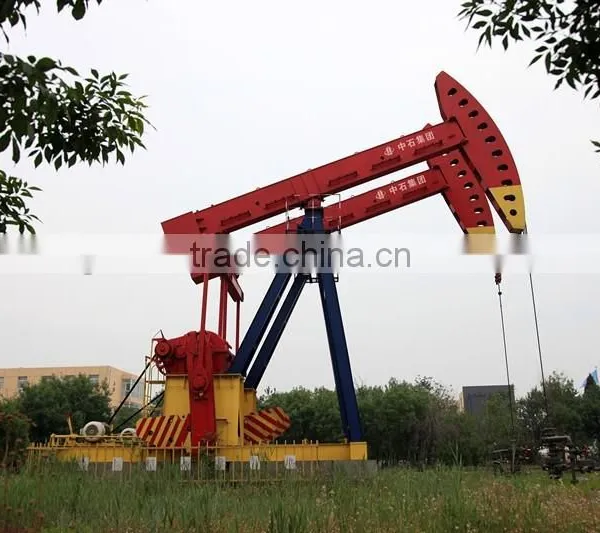

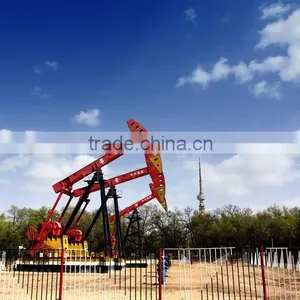

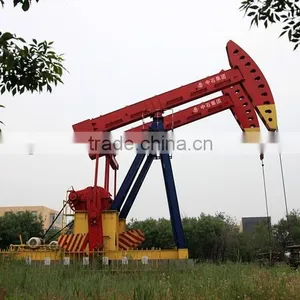

API B series pump jack nodding donkey
- 50 Set / Sets per Month
- Tianjin Qingdao
- T/T
You May Like
Product Details
| Condition | New | Production Capacity | 100% | |
| Place of Origin | Henan, China | Brand Name | Zhongshi | |
| Model Number | API B series | Voltage | 380V/220V | |
| Dimension(L*W*H) | Irregular | Weight | 2-20 Tons | |
| Certification | API 11E,ISO9000 | Warranty | 3 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Puyang zhongshi group co. LTD. Is the zhongyuan oilfield standard type, the restructuring of enterprises in henan province high and new technology enterprises and science and technology enterprises. The group is mainly oil machinery and equipment manufacturing, engaged in domestic and foreign trade integrated enterprise. The main products are oil drilling equipment, drilling equipment, water treatment equipment, gas processing equipment, electrical equipment, pressure vessel manufacturing, steel structure and production and so on more than 10 categories of 100 camps. Group products in addition to the major domestic oil fields, also exported to the americas, the Middle East, central Asia, Russia and Africa more than 10 countries and regions.
Brief Introduction:
API B Series Pumping Units is conventional walking beam pumping units, it's a common type of power equipment on the groud used in rod oil extraction.
The products conform to API Spec. 11E"Specification for Pumping Units" and other relatice API standards,acquired the anthorization to use Official API Monogram.
Technical Performances:
API B Series
1. Hight reliability,simple operation,easy maintenance,long service life.
2. Gear reducer is involute herring-bone gearing,work smoothy and reliably.
3. The complete machine with light weight, it's convenient for installation and transportation.
Main Technical Parameter:
| No. | Type | Polished Rod Capacity (lb) | Stroke Length(in) | Rated Torque(in.lb) |
| 1 | B-80D-119-64 | 11,900 | 64,54 | 80,000 |
| 2 | B-80D-76-64 | 7,600 | 64,54 | 80,000 |
| 3 | B-80D-133-54 | 13,300 | 54,41 | 80,000 |
| 4 | B-80-119-54 | 11,900 | 54,41 | 80,000 |
| 5 | B-80D-76-54 | 7,600 | 54,41 | 80,000 |
| 6 | B-80D-133-48 | 13,300 | 48,35 | 80,000 |
| 7 | B-80D-109-48 | 10,900 | 48,35 | 80,000 |
| 8 | B-57D-109-54 | 10,900 | 54,41 | 57,000 |
| 9 | B-57D-89-54 | 8,900 | 54,41 | 57,000 |
| 10 | B-57D-76-54 | 7,600 | 54,41 | 57,000 |
| 11 | B-57D-109-48 | 10,900 | 48,35 | 57,000 |
| 12 | B-57D-95-48 | 9,500 | 48,35 | 57,000 |
| 13 | B-57D-89-48 | 8,900 | 48,35 | 57,000 |
| 14 | B-57D-89-42 | 8,900 | 42,32 | 57,000 |
| 15 | B-40D-89-48 | 8,900 | 48,35 | 40,000 |
| 16 | B-57D-76-42 | 7,600 | 42,32 | 57,000 |
| 17 | B-40D-76-42 | 7,600 | 42,29 | 40,000 |
| 18 | B-25D-67-36 | 6,700 | 36,27 | 25,000 |
| 19 | B-25D-53-30 | 5,300 | 30/23 | 25,000 |
| 20 | B-16D-53-30 | 5,300 | 30,23 | 16,000 |
According to the requirements of the customers.
