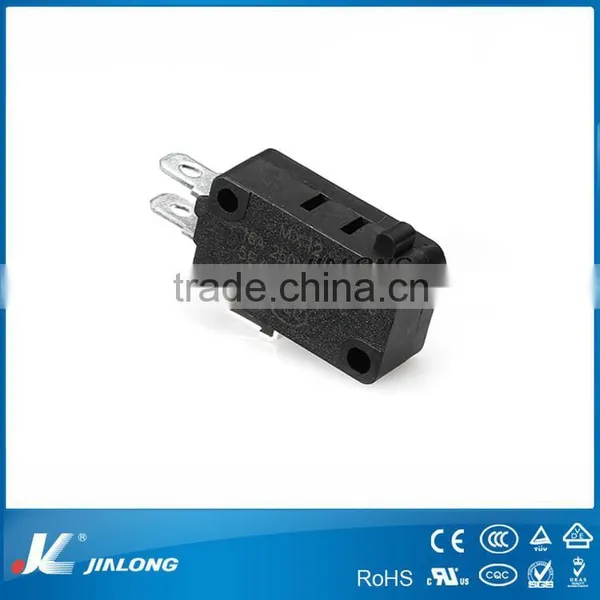

Help CenterHigh Quality 16A 250VAC NC NO 3pins Micro Switch MX12-5
Related Products
-
V-151 Micro Switch MX12-8US$ 0.01 - 1MOQ: 1000 Pieces -
Snap Action LS Microswitch 3-20A 125/250V ACUS$ 0.01 - 1MOQ: 1000 Pieces
-
UL Micro Switch MX12-8US$ 0.01 - 1MOQ: 1000 Pieces
-
5E4 Micro Switch MX12-9US$ 0.01 - 1MOQ: 1000 Pieces
-
High Quality UL VDE TUV CE 16A 250VAC 5E4 Snap Action LS Microswitch MX12-11US$ 0.01 - 1MOQ: 1000 Pieces
Operating Temperature: -25-80C Max. Current: 20A Max. Voltage: 125VAC
Meterial: PBT and PC
Specifications
MICRO SWITCH:
1.UL TUV
2.Various terminal types.
3.Choice of standard or light operating force.
MICRO SWITCH Features:
1)Nice appearance,tight configuration.
Characteristic:small contact gap,snap action,high sensitivity and small operating travel.
2)Long life and high relibality.
3)Variety of terminals.
4)A variety of models with low operating force to high operating force are available.
5)Variety of temperature grade.
7)Widely used in appliance,electronic equipment,automatic machine,
communication equipment,car electric,apparatus and instrument,electro motion tool etc.
CALON SWITCH
| CONTACT RATING: | |
| CONTACT RATING: | 3-15Amps at 125/250VAC-UL, CUL, VDE |
| LIFE EXPECTANCY: | 50,000 Cycles Minimum |
| MECHANICAL LIFE: | 100,000 Cycles Typical |
| INSULATION RESISTANCE: | 100MΩ Min. |
| DIELECTRIC STRENGTH: | 1,500VAC for 1 Minute |
| OPERATING TEMP: | -25°C to 85°C (std) |
| MATERIALS | |
| SWITCH HOUSING: | High Temperature PBT (UL94 V0) |
| ACTUATOR BUTTON: | High Temperature PBT (UL94 V0) |
| CONTACTS: | Silver (std) or Gold |
| TERMINALS: | Copper Alloy, Plated |
Our main products:
slide switch,push button switch,rocker switch,tact switch,hook switch,micro switch,leaf switch,DC/AC power jacks etc.
Our main certification:
UL,VDE,ENEC,CSA,TUV,,CE,EMC,CQC,CCC,etc.
micro switch(light touch micro switch,omron switch)
All products are RoHs REACH approved
High quality, stable performance, competitive price, good service.
Warmly welcome to your enquiries.
OEM and ODM orders are also welcomed.
