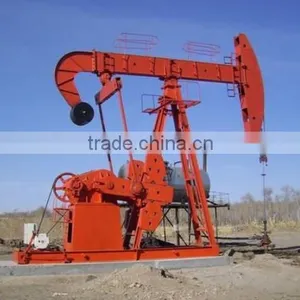

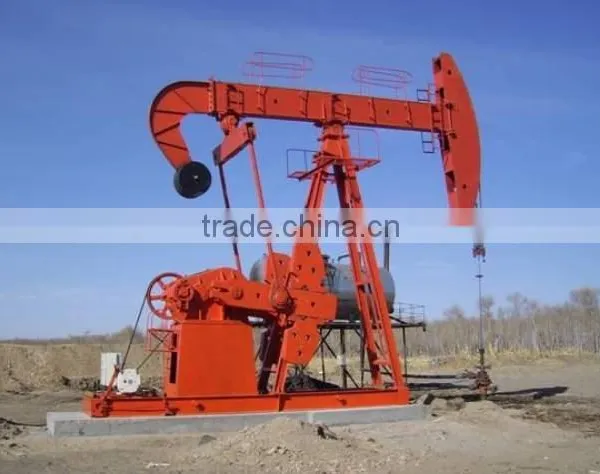

API B series type pumping unit is a kind of conventional beam pumping unit, adopts crank balance method, it is the most common sucker rod oil production operations, the most widely application scope a ground power unit. Products comply with API Spec 11 e "standard of pumping unit" and other relevant standards, getting the API monogram license.
Technical performance characteristics
1, the use of modular design and virtual manufacturing technology, product structure simple easy maintenance operation, components of high degree of "standardization, generalization and seriation.
2, the key components in finite element analysis, stable performance, high reliability.
3, the reducer adopts symmetrical shunt type involute or double circular-arc herringbone gear transmission, good sealing, low noise, smooth operation, reliable and durable.
4, the operation is simple, convenient maintenance, long service life.
API series of main technical parameters | ||||
Conventional models |
Polished rod load lb |
stroke in |
Frequency of stroke |
Reducer torque In-lbs |
25-53-30 |
5300 |
30 |
|
25000 |
25-56-36 |
5600 |
36 |
|
25000 |
25-67-36 |
6700 |
36 |
|
25000 |
40-89-36 |
8900 |
36 |
|
40000 |
40-76-42 |
7600 |
42 |
|
40000 |
40-89-42 |
8900 |
42 |
|
40000 |
40-76-48 |
7600 |
48 |
|
40000 |
80-109-48 |
10900 |
48 |
|
80000 |
80-133-48 |
13300 |
48 |
|
80000 |
80-119-54 |
11900 |
54 |
|
80000 |
80-133-54 |
13300 |
54 |
|
80000 |
80-119-64 |
11900 |
64 |
|
80000 |
114-133-54 |
13300 |
54 |
|
114000 |
114-143-64 |
14300 |
64 |
|
114000 |
114-173-64 |
17300 |
64 |
|
114000 |
114-143-74 |
14300 |
74 |
|
114000 |
114-119-86 |
11900 |
86 |
|
114000 |
160-173-64 |
17300 |
64 |
|
160000 |
160-143-74 |
14300 |
74 |
|
160000 |
160-173-74 |
17300 |
74 |
|
160000 |
160-200-86 |
20000 |
86 |
|
160000 |
228-173-74 |
17300 |
74 |
|
228000 |
228-200-74 |
20000 |
74 |
|
228000 |
228-213-86 |
21300 |
86 |
|
228000 |
228-246-86 |
24600 |
86 |
|
228000 |
228173-100 |
17300 |
100 |
|
228000 |
320-213-86 |
21300 |
86 |
|
320000 |
320-256-100 |
25600 |
100 |
|
320000 |
320-305-100 |
30500 |
100 |
|
320000 |
320-213-120 |
21300 |
120 |
|
320000 |
320-256-120 |
25600 |
120 |
|
320000 |
320-256-144 |
25600 |
144 |
|
320000 |
456-256-120 |
25600 |
120 |
|
456000 |
456-305-120 |
30500 |
120 |
|
456000 |
456-365-120 |
36500 |
120 |
|
456000 |
456-256-144 |
25600 |
144 |
|
456000 |
456-305-144 |
30500 |
144 |
|
456000 |
456-305-168 |
30500 |
168 |
|
456000 |
640-305-120 |
30500 |
120 |
|
640000 |
640-256-144 |
25600 |
144 |
|
640000 |
640-305-144 |
30500 |
144 |
|
640000 |
640-365-144 |
36500 |
144 |
|
640000 |
640-305-168 |
30500 |
168 |
|
640000 |
640-305-192 |
30500 |
192 |
|
640000 |
912-427-144 |
42700 |
144 |
|
912000 |
912-305-168 |
30500 |
168 |
|
912000 |
912-365-168 |
36500 |
168 |
|
912000 |
912-305-192 |
30500 |
192 |
|
912000 |
912-427-192 |
42700 |
192 |
|
912000 |
912-470-240 |
47000 |
240 |
|
912000 |
912-427-216 |
42700 |
216 |
|
912000 |
1280-427-168 |
42700 |
168 |
|
1280000 |
1280-427-192 |
42700 |
192 |
|
1280000 |
1280-427-216 |
42700 |
216 |
|
1280000 |
1280-470-240 |
47000 |
240 |
|
1280000 |
1280-470-300 |
47000 |
300 |
|
1280000 |
