electrical lifting winch with variable speed

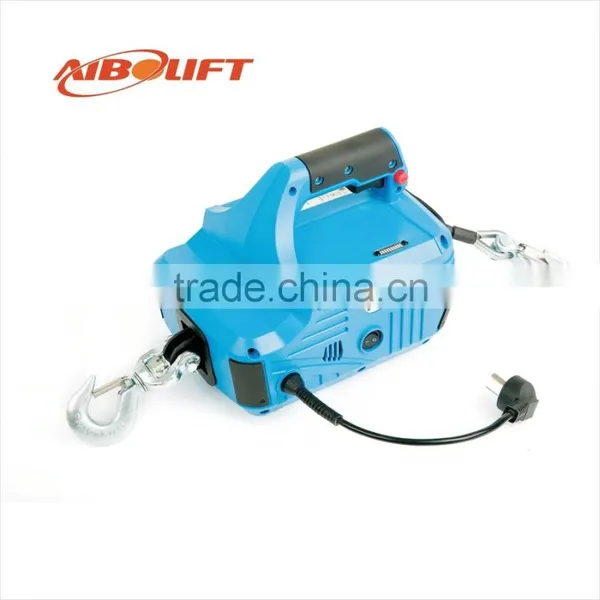

It's a portable electric winch(manual one, we also have others with remote control) with strong wire rope. They can lift, pull and place loads across distances without extra efforts.
The galvanized wire rope winches are extensively used in various industrial purposes.
As soon as the operator stops pulling, the motor stops and the drum stops turning, preventing rope damage.
1.Model Number: |
ATQ-03 |
2.Power Source: |
Electric 1200W |
3.Voltage: |
AC 100-240V/50/60HZ |
4.Lifting Height: |
8M |
5.Wire rope dia: |
4.8mm |
6.Speed: |
full speed 5m/min trigger switch allows for optional speed for mutiple applications |
7.Load Capacity: |
250KGS/550lbs |
8. Net weight: |
7kg |
9.Motor: |
Series motor |
10. Protection: |
Overload protection and overheat protection |
11.Certification: |
CE and ISO |
12.Color: |
Blue,Yellow,Red or According to Customer Request |
13.Logo: |
AiboLift |
14.OEM: |
Available |
15.MOQ: |
216sets Small trial order is acceptable |
16.Production Capacity: |
5000sets/Month |
17.Sample Lead time: |
5days for regular item |
18.Packing: |
Color Box or Standard Export Cartons |
19.Delivery: |
By express courier / by air / by sea |
20.Payment: |
T/T |
Features
— Mini electric winch providing precision power for all pulling, hauling and drag away jobs.
— 250kgpull rating powered via a 100-240V AC.
— 4.8mm/8m Aircraft grade galvanized wire rope.
— Buildin industrial grade safety hook and hawser fairlead at wire rope end of tool and swiveling anchor hook at its base.
— Touch the switch by manual button, trigger switch enables variable speed for multiapplication.
— Electronic load limiter with LED indicator protects the tool from overload.
— Self-locking gear train with dynamic braking.
Experienced but Keep Original
Over 23 years in hardware manufacture and continue developing new styles in electric hoist and winch. OEM is available due to skilled engineers and trained staffs.
Cost Down, Quality Up
Independently manufacture and export by us that will help you cost saving and more competitive in the market.
Only suppliers with good fame will we select to cooperate from raw material to packing.
Mature management ensures a smooth production.
Testing systems are established to ensure finished product are in good quality, including hoisting test, pulling test, high voltage resistance test and earth resistance test.
These build up our confidence.
Service within 24 hours
We promise to feedback within 24 hours from Monday to Saturday.
Pulling, Lifting, Energy Saving! Easy you take, Safety we care!
