Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff . Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories.

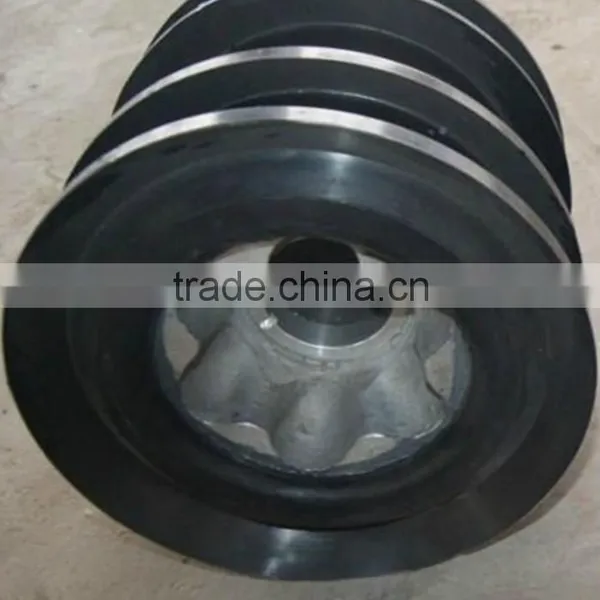

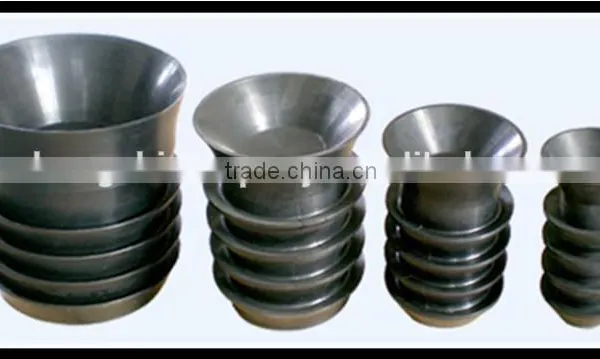

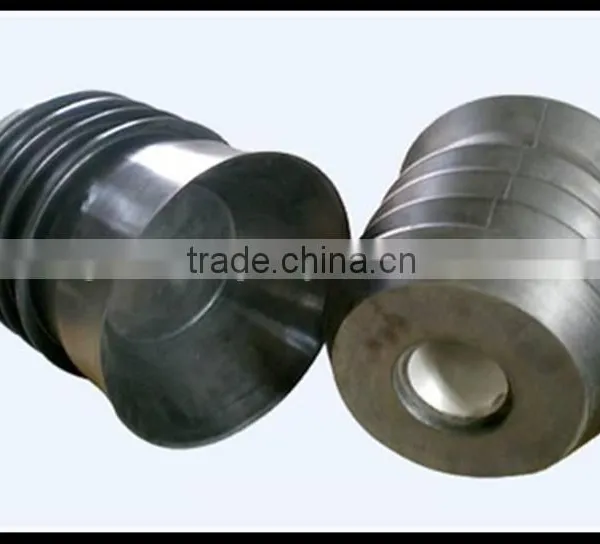

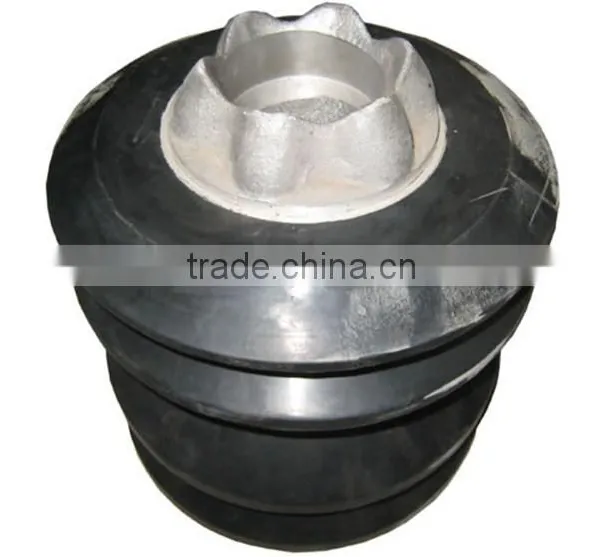

The cementing plug is used to separate the cement slurry from the mud. It can prevent the mud from blending into the cement slurry to influece the cementing quality.
Structure:
There are two kinds of cementing plug: conventional cementing plug and special cementing plug. Conventional cementing plug is divided into top plug and bottom plug. Special plug has top/middle/bottom plug used in two-stage cementing, drill pipe plug and hollow plug used in drilling liner cementing and composite plug used in composite casing.
Feature:
1. Special materials designed for easy drill out with PDC bits
2. Normal and non-rotating type can be available
3. The non-rotating type can save the drilling time
4. Size: 4 1/2"--20:
Specification:
| Casing size(in) | casing weight range | Wiper Fin O.D | ||
| mm | in | mm | in | |
| 4 1/2" | 14.14-17.26 | 9.50-11.60 | 110 | 4.331 |
| 5" | 17.11-35.86 | 11.50-24.10 | 122 | 4.803 |
| 5 1/2" | 20.83-39.88 | 14.00-26.80 | 135 | 5.315 |
| 7" | 25.30-56.55 | 17.00-38.00 | 170 | 6.693 |
| 7 5/8" | 35.72-63.69 | 24.00-42.00 | 185 | 7.283 |
| 9 5/8" | 53.57-79.62 | 36.00-53.50 | 235 | 9.252 |
| 10 3/4" | 60.27-97.77 | 40.50-65.70 | 260 | 10.236 |
| 13 3/8" | 71.43-107.15 | 48.00-72.00 | 333 | 13.110 |
| 20" | 139.89-197.93 | 94.00-133.00 | 498 | 19.606 |
We do everything to enable the clients to get more benefits and to seek more business opportunities in the market. We promise to create more values for you and the society.
We must develop new technologies and new products for our clients, and make our popularity on a high level in this field; we must heighten our position and set a good example in the field. A group of experienced staff are ready to serve you with enthusiasm at any moment!
After-Sales Service:
Provide considerate services to minimize clients' worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site
(4) Examine the equipment regularly;
(5) Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door
(7) Provide perfect service;
(8) Provide technical exchanging;
(9) Provide maintenance for big items.
