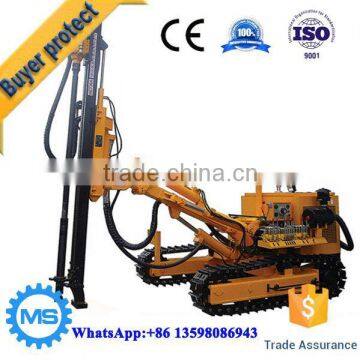

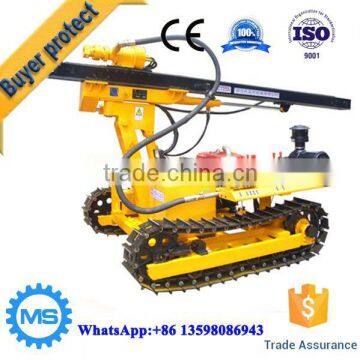

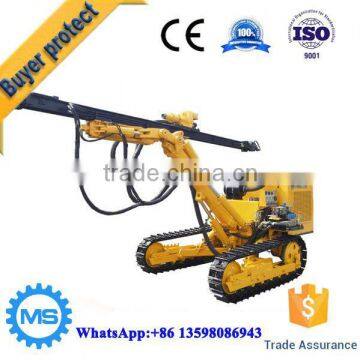

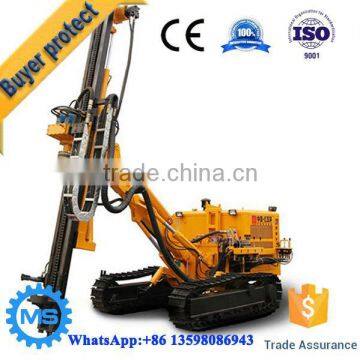

Best Selling Anchoring Rock Blasting Drilling Machine

FOB Price

US$ 10,000 - 100,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, anchoring rock blasting drilling machine
Power Type	Diesel	Place of Origin	Henan, China
Brand Name	Maisheng	Model Number	MSXT-3 anchoring rock blasting drilling machine
Usage	Other, anchoring rock blasting drilling machine	Voltage	380V
Power(W)	60KW	Dimension(LWH)	3500X2500X2700mm
Weight	3500kg	Certification	ISO
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction of anchoring rock blasting drilling machine

1.Equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and

easy to drill horizontal adjustment.

2.With oil pressure feeding mechanism and improve drilling efficiency.

3.Equipped with a ball cassette clamping device to replace chuck, can execute non-stop down rod,

high efficiency, convenient and safe and reliable operation.

4.Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master

the hole

5.Up and down for hydraulic operation, convenient and reliable.

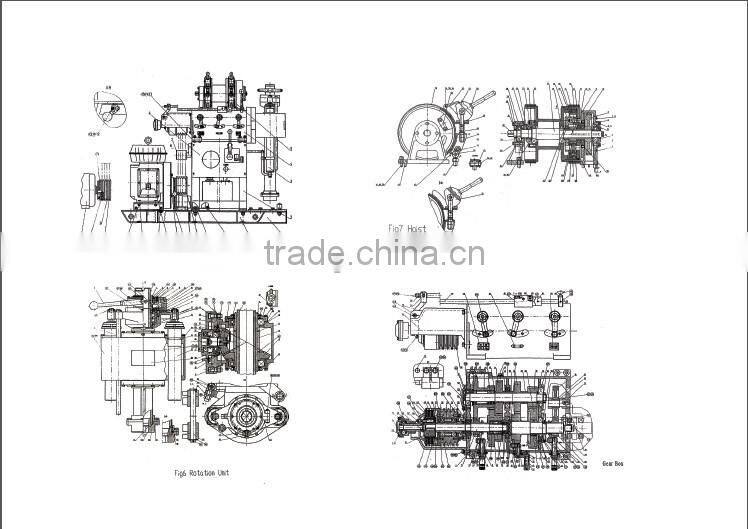

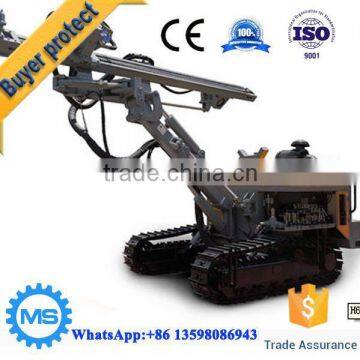

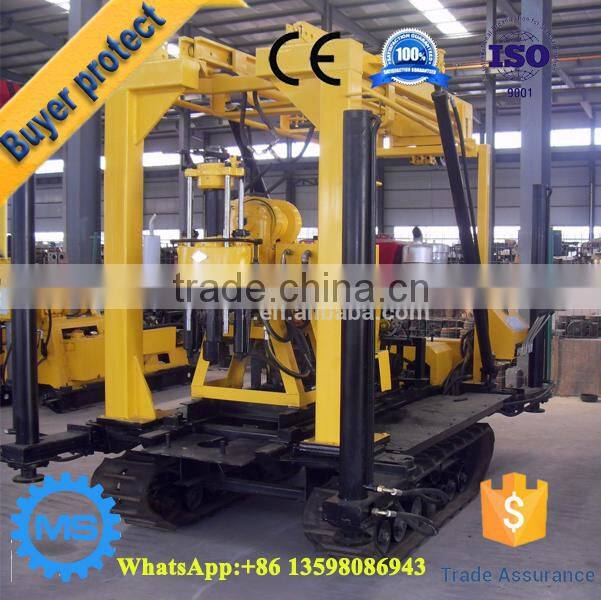

Design of anchoring rock blasting drilling machine

Technical data of anchoring rock blasting drilling machine

Max Drilling Depth(m)	600
Max open hole caliber(mm)	300mm
End hole caliber(mm)	75
Drilling pipe caliber	Φ60
Drilling angle	90°-65°
Drilling rig Power
Diesel Engine		Faw tin firewood Four-cylinder
Electric Power		Y180L-4 22KW
Spindle
Spindle forward speed(r/min)		30-1050
Spindle reverse speed(r/min)		29-137
Spindle stroke(mm)		560
Vertical inner hole diameter(mm)		96
Vertical shaft hoisting capacity(KN)		60
Main Winch (hydraulic drive)
Single line lifting speed (m/min)		0—45
Tightrope caliber(mm)		14
Hug floodgate belt width(mm)		90
Drum diameter(mm)		300
Drum capacity9m(m)		30
Hoist single line lifting capacity
Reel caliber(mm)		140
Steel wire diameter (mm)		6
Drum capacity(m)		450
Mud pump
Horizontal triplex BW - 250 mud pump
Displacement(L/min)			250
Working pressure(Mpa)			7
Water Inlet Diameter(mm)			75
Water Outlet Diameter(mm)			50
Gear oil pump
Double oil pump			CBF-F63/25
The front flow pressure			63L/min 20Mpa
The back-end flow pressure			25L/min 20Mpa
Wheeled chassis
Wheeled chassis carrying capacity			3.5T
The length of the wheeled chassis			2.6m
Wheeled chassis width			2m
Wheeled chassis height			0.6m

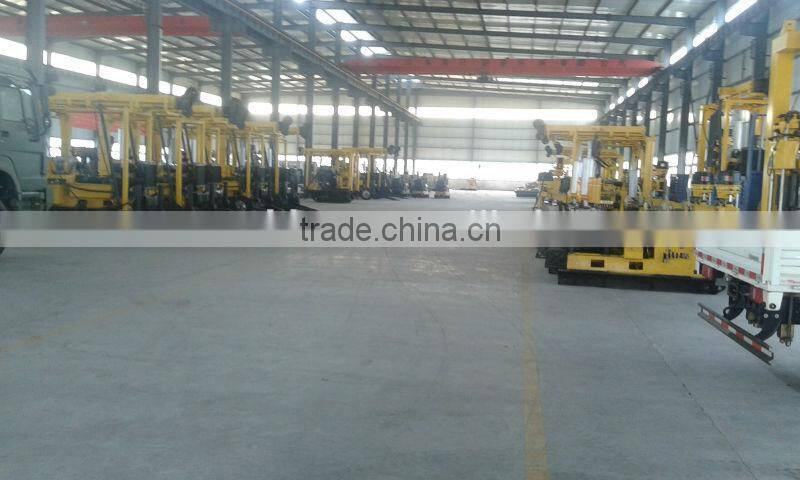

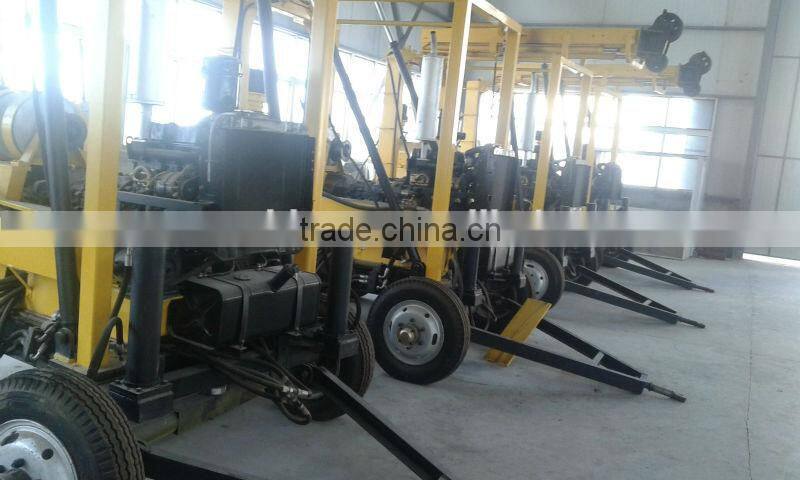

Our workshop of anchoring rock blasting drilling machine

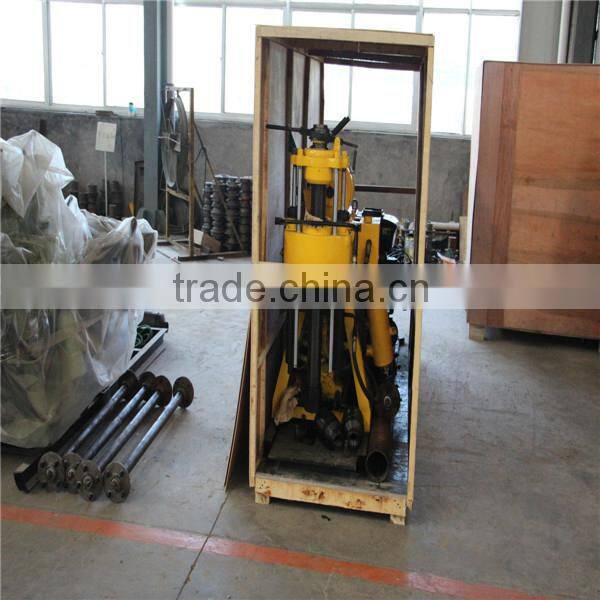

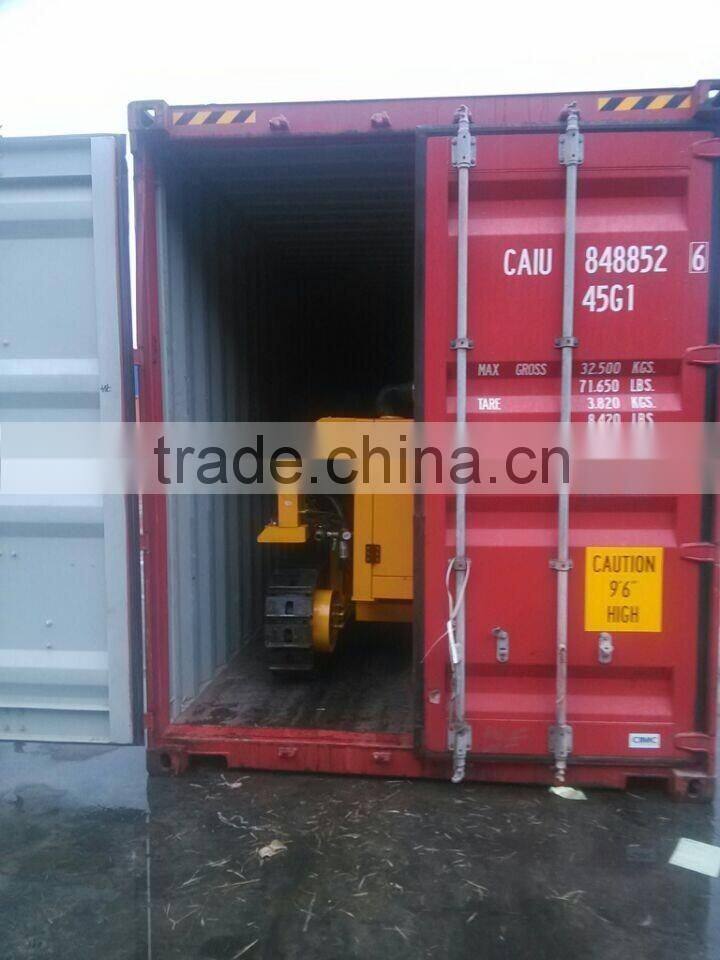

Packaging & Shipping

Our Services
