42" i Phone Outlook Design Large Touch Screen Display, Stand 42 Inch Touch Screen Kiosk Terminal, Information Kiosk Lcd Monitor

42" i phone outlook design large touch screen display, stand 42 inch touch screen kiosk terminal,information kiosk lcd monitor

What features of our 42" i phone outlook design large touch screen display, stand 42 inch touch screen kiosk terminal, information kiosk lcd monitor  ?

1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24/7/365
2. Rich signal input ports: HDMI / VGA / BNC / AV and more
3. Metal shielding structure, anti-radiation, anti-static, anti-magnetic, anti-interference
4. Latest fan-less design, noise-less, dust-less, no potential damage of moving mechanical parts, no potential over heating hazard
5. With tough industrial grade IR touch screen (USB port), easy to connect with PC or Android system

What functions of our 42" i phone outlook design large touch screen display, stand 42 inch touch screen kiosk terminal, information kiosk lcd monitor ?

1. 2 point touch; Touch by fingers, opaque touch pen etc.
2. 14ms touch responding time; 50 million touch times durability
3. Ultra-slim design casing and delicate appearance
4. Adopt latest 3D digital filtering and 3D digital noise reduction technology
5. Professional industrial A+ LCD panel; 178°wide viewing angel
6. 1080P HD; 16.7M color, true presentation of all the details
7. High brightness, high color gamut, high contrast ratio to improve the image performance
8. 5ms response time;  60,000 hours life span
9. Adopt standard VESA, very easy installation
10.  With both push buttons and IR remote control

What are the specifications of our 42" i phone outlook design large touch screen display, stand 42 inch touch screen kiosk terminal, information kiosk lcd monitor  ?

1. LCD screen

  LCD size: 42 inch

  Active area: 927.94mm (H) X 521.96mm (V)

  Screen ratio: 16:9

  Resolution: 1920 X 1080

  Brightness: 300cd/m2

  Contrast ratio: 1200:1

  View angle: L / R / U / D (89° / 89° / 89° / 89°)

  Pixel: 0.4833mm X 0.4833mm

  Color: 24 bit

  Vertical synchronization range: 50-75HZ

  Horizontal synchronization range: 30-80KHZ

2. Touch panel

  Touch input: any opaque objects(finger, touch pen, etc.)

  Touch sensing: infrared

  Touch screen resolution: 4096 X 4096

  Touch screen type: 2 points

  Minimum touch object: > 2mm

  Responding time: < 14ms

  Touch durability: >50,000,000 times

  Touch interface: USB interface  X 1 type A USB female interface

  Light transmittance: ≥94% 100%(MAX)

3. Video

  Color system: PAL, SECAM, NTSC, etc.

  3D comb filter: yes

  3D de-interlace: yes

4. Input and output

  VGA input interface: X 1 (D-Sub 15 pin female)

  HDMI input interface: X 1 (19P standard HDMI interface)

  AV input: X 2 (BNC interface)

  AV output: X 1 (BNC interface)

  Audio input: X 1 (headphone socket)

  Audio output: X 1 (headphone socket)

5. OSD display (screen menu display)

  Menu language: Chinese, English

6. Casing

  Casing material: aluminum / steel

  Casing color: silver / black

  VESA pitch: 400mm X 400mm,Φ 8mm

  Function buttons: 7 buttons

  AC cable length: 1.5 M

7. Others

  Power consumption: AC100~240V 2A(MAX)

  Standby power consumption: <1W

  Speaker power: 2 X 8 Ω / 6 W

  Body size: 1108mm (L) X 664mm (W) X 70mm (H)

  Net weight: 32kg

  Package: neutral packaging

  Accessories: power adapter, remote control, etc.

  Application environment: indoor

  Working temperature: 0℃ - 45℃

  Storage temperature: -20℃ - 45℃

  Working humidity: 20% - 80%

  Storage humidity: 10% - 95%

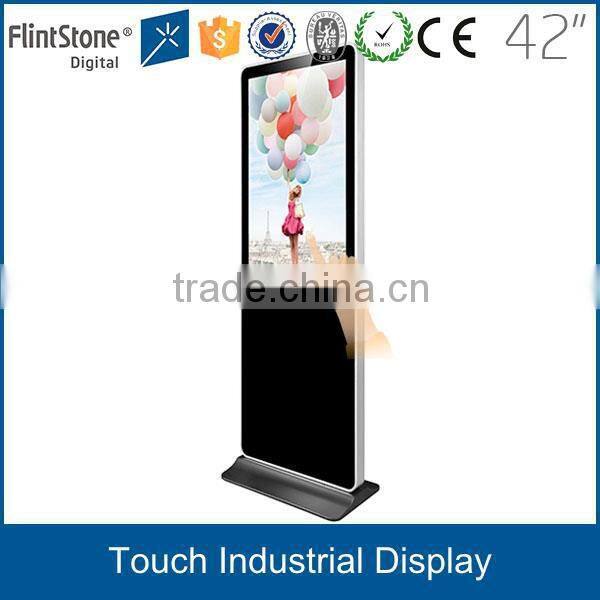

42" i phone outlook design large touch screen display, stand 42 inch touch screen kiosk terminal, information kiosk lcd monitor  photos

What is the application of 42 inch touch screen tv monitor, cctv monitor tv, full HD 42" cctv monitor with bnc input ?

- Industrial display

- Traffic control room
- Video wall
- Corporate board room
- Exhibition center
- Video conference room
- Government bodies
- Product promotion
- Entertainment platform
- Education & trainning
- Military command room
- Public data

  More ... ...

- Media companies

- Government
- Schools
- Banks

- Super Markets

- Hospitals
- Restaurants
- Railways stations

- Bus stops

- Airport

- Hotels

  More ... ...

Our certifications

Who are we?

Southern Stars Enterprises Co Ltd has focused on the original R&D, OEM & ODM of electronic and functionality designing and manufacturing of over 100 models of HEAVY DUTY digital signage player, Industrial 42 ,55 inch wayfinding signage ir touch screen,VGA BNC UHD input touch screen digital signage totem (LCD CCTV monitor) and interactive flat panel display (ifpd) since 1996. We have been relentlessly striving to achieve excellent quality level, going to great length to tackle any tiny quality defects.

We provide most durable and stable long hour loop-playing industrial-grade products to the world market of commercial usage; we also provide heavy duty while user-friendly internet digital signage system (with CMS system) and to satisfy our customers with specialist consultancy and sincere service.

Clients & business partners

Trade terms

1. Payment methods: we accept T/T, PayPal , L/C , Western Union

2. Production lead time: 3-4 working days for sample, about 25 working days for massive order.

3. We offer 12 months quality warranty.

Product packing

Why choose us?

1. With rich experience in this field since 1996, we truly understand your need for heavy duty industrial-grade products; all our products are industrial-grade designed, heavy-duty built for non-stop loop-playing 24 / 7 / 36.5. They are durable, stable, solid and tough like a rock.

2. All our products go through 72 hours of high temperature aging test before delivery; defective rate is less than 0.1%. We are the only one manufacturer to apply this rigorous testing method.

3. We always deliver on time as we promise.

4. We are proud to be appointed supplier for many Fortune 500 companies, such as Bosch, ICI Dulux, Toys ”R” Us, Siemens, etc. We are THE specialist; let us serve you with our professional experiences and specialties.
