China Supplier Compressed Natural Gas Flow Meter

FOB Price

US$ 199 - 2,999 / Set

1 Set(Min. Order)

Port Qingdao/Zhengzhou/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	kaide Liquid Turbine Flow Meter
Model Number	LWGY Liquid Turbine Flow Meter

Product Description

China supplier compressed natural gas flow meter

Product Description

Product Description of compressed natural gas flow meter

1. Features:
a) Pulse output, linear feature;
b) High accuracy, sensitive reaction;
c) Wide measuring range;
d) Signal output
e) Simple structure, easy installation, operation and maintenance;
f) Filter, eliminator and rectifier(aligner) can be provided as a whole package;
g) A pair of companion vice flanges for installation is available.

2. Specifications:

Item	Gas turbine flowmeter	Liquid turbine flowmeter
Applicable medium or condition	Gas	Liquid
Caliber(mm)	15~50	10~500
Accuracy	±1.5%	±1%,±0.5%,±0.2%
Pressure(MPa)	2.5~16	2.5~16
Flow range(m³/h)	4~200	0.25~4000
Fluid temperature	-20°C~+120°C	-30°C~+80°C
Ambient	Temperature: -20°C~+55°C Relative temperature: 5%~95% Pressure: 86~106KPa	Temperature: -30°C~+60°C Relative temperature: 5%~95% Pressure: 86~106KPa
Power source	8~24V.DC, 3.2V 10AH lithium battery
Signal ouput	Pulse output(+12~+24VDC power supply, three-wire system) Pulse output(+24VDC power supply, two-wire system) 4~20mADC analog flow signal output
Explosion-proof grade	dⅡBT4, ibⅡCT4
Protection Grade	IP65
Available form	Compact type, Remote type, Inserted type, Bidirectional type
Connecting mode	Flange connection, Pipe thread connection
Shell material	SS/CS

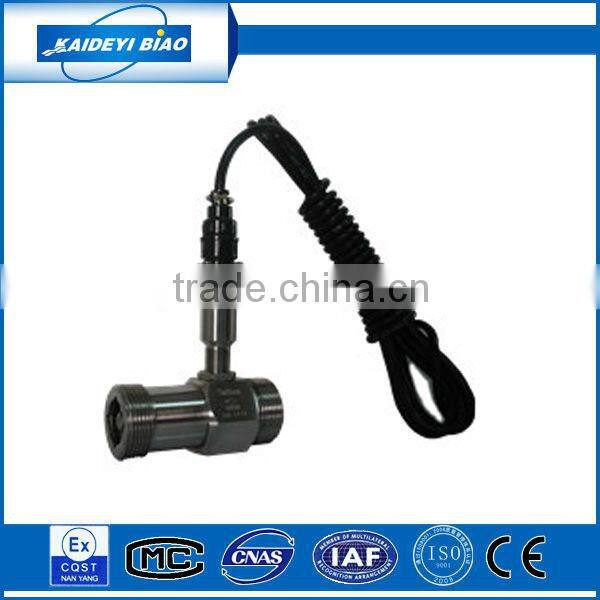

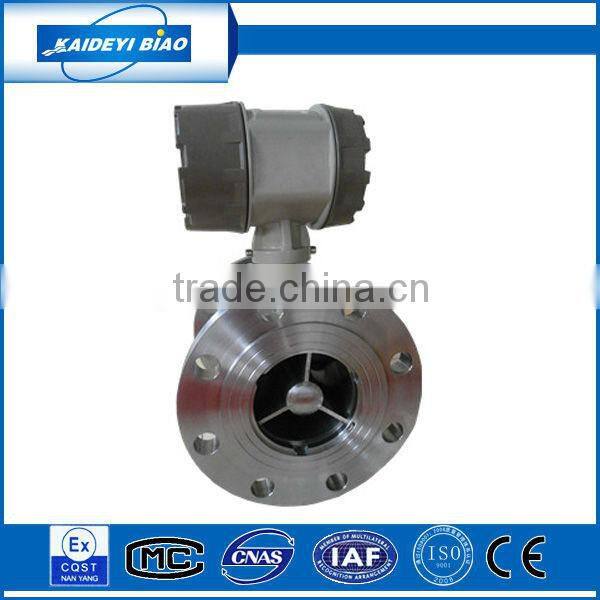

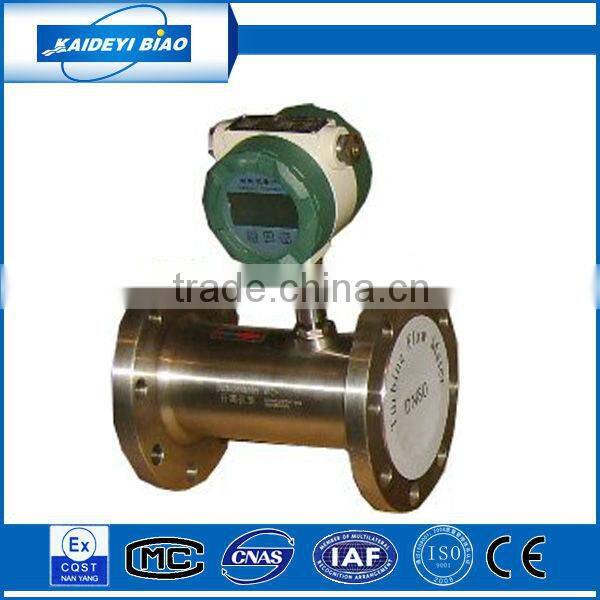

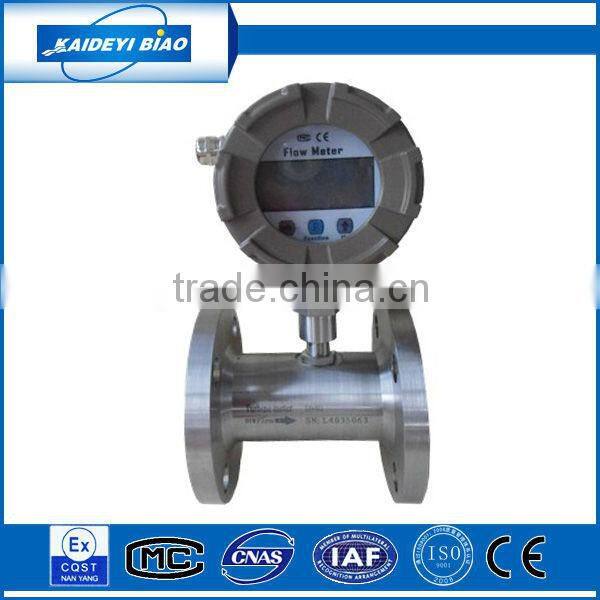

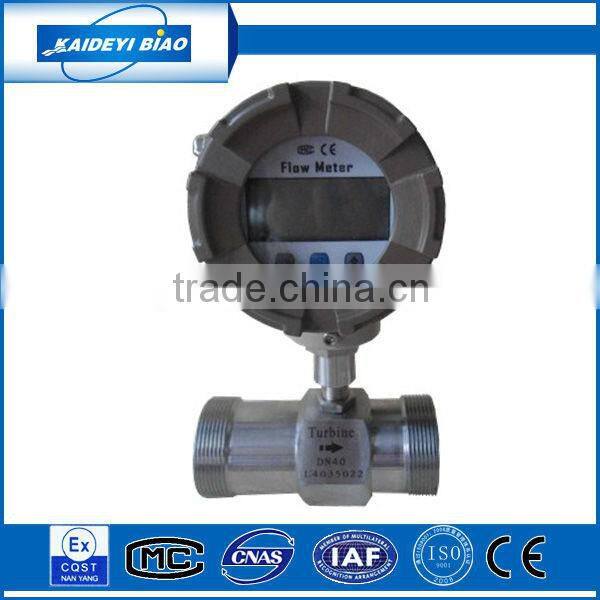

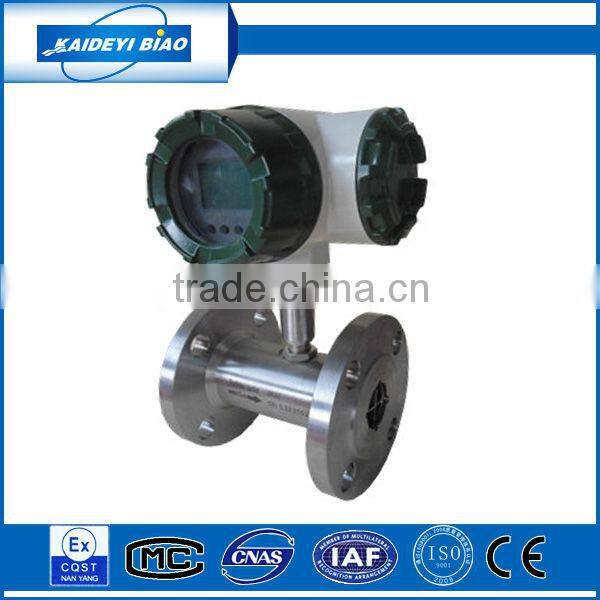

Product Pictures of compressed natural gas flow meter
