Help CenterWater Flow Sensor
US$ 400 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
kaide
Model Number:
KDLD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Electromagnetic Flowmeter Measuring ToolsUS$ 399 - 3,999MOQ: 1 Set -
Liquid Control Flow MeterUS$ 400 - 6,000MOQ: 1 Set
-
Digital Water Insertion Electromagnetic FlowmeterUS$ 499 - 1,999MOQ: 1 Set
-
China Low Price Insertion Electromagnetic Flowmeter Manufacturer(ISO 9001)US$ 449 - 2,999MOQ: 1 Set
-
Intelligent Conductive Liquid Electromagnetic Flowmeter With RS485/RS232US$ 399 - 3,999MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
kaide
Model Number
KDLD
Specifications
Medical water flow sensor measuring tool is specially designed for conductive liquid and slurry in closed pipe,with pulse,4-20mA1.Introduction:

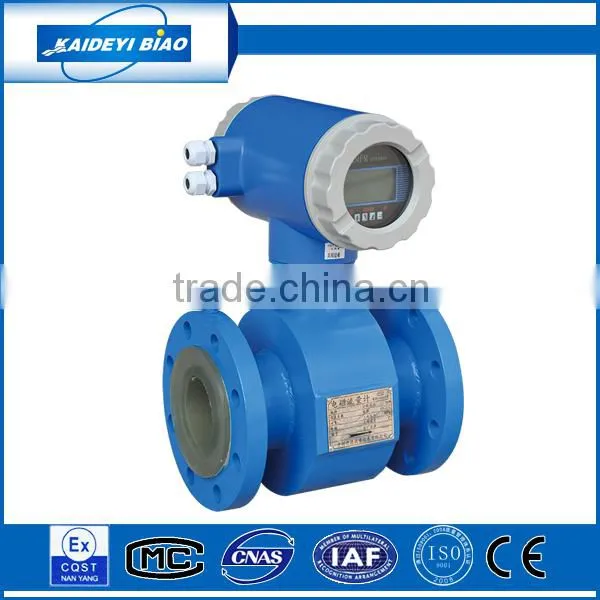

KDLD magnetic/electromagnetic water flow sensor measuring tool is manufactured with the modern technology of electromagnetic flow, the measuring principle of which is based on the electromagnetic induction law of Farady. It is mainly used to measure the volume flow of conducting liquid and slurry in closed pipeline, applicable to industries like chemical, power supply, metallurgical mine, oil, water supply and drainage, paper making, pharmaceutical, food, etc..
2. Specifications:
| Item | Specifications |
Caliber(mm) |
DN10~DN3000 |
| Pressure(MPa) | 0.6,1.0,1.6,4.0 |
| Accuracy | ±0.5%,0.3%,etc. |
| Applicable medium | Conductive liquid and slurry |
| Medium Temperature | ≤150°C |
| Medium Conductivity | ≥5μS/cm |
| Medium Velocity | ≤15 m/s |
| Ambient | Temperature:-25°C~+60°C, Humidity: 5%~90% |
| Liner Material | Rubber, PTFE, Hard rubber, etc. |
| Electrode Material | SS316L,Ti,Ta,HB,HC,etc. |
| Electrode Type |
Fixed type(DN150~DN2600); Blade type(DN300~DN1600) |
| Flange Material and standard |
SS, CS Chinese national standard, ANSI standard, DIN, JSK, etc. |
| Signal Output | 4-20mA; Pulse |
| Display | LCD display with back light, able to display positive and negative instantaneous and accumulative flow |
| Communication | RS485, Modbus, RS232, HART, Profibus-DP |
| Power Supply |
AC 85-265V, 45-63Hz, power≤20W; DC 11-40V; lithium battery(3.6V) |
| Protection Grade | IP65(convertor), IP67/68(sensor) |
|
Explosion- proof Grade |
Exdm2CT4, md2BT4 |
| Available Form | Compact/Remote/Threade/Insertion/Clamp |
