FlintStone 2015 new 15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen
What features of our 15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen ?
- Industrial-grade design, heavy-duty built for non-stop loop-playing 24/7/365
- Rich signal input ports: HDMI / VGA / BNC / AV and more
- Metal shielding structure, anti-radiation, anti-static, anti-magnetic, anti-interference
- Latest fan-less design, noise-less, dust-less, no potential damage of moving mechanical parts, no potential over heating hazard
- Open frame structure: highly flexible and customizable to embed into your furniture, store shelf, wall, or any other objects as per your needs
- Our engineers can provide design service as per your special needs
- With tough industrial grade IR touch screen (USB port), easy to connect with PC or Android system
What functions of our 15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen ?
- 2 point touch; Touch by fingers, opaque touch pen etc.
- 14ms touch responding time; 50 million touch times durability
- Solid open frame structure and flexible brackets for embedding
- Adopt latest 3D digital filtering and 3D digital noise reduction technology
- Professional industrial A+ LCD panel
- 16.7M color, true presentation of all the details
- High brightness, high color gamut, high contrast ratio to improve the image performance
- 5ms response time; 60,000 hours life span
- With both flexible push buttons and IR remote control
What are the specifications of our 15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen ?
1. LCD screen
LCD size: 18.5 inch
Active area: 409.8mm (H) X 230.4mm (V)
Screen ratio: 16:9
Resolution: 1366 X 768
Brightness: 250cd/m2
Contrast ratio: 1000:1
View angle: L / R / U / D (85° / 85° / 80° / 80°)
Pixel: 0.3mm X 0.3mm
Color: 24 bit
Vertical synchronization range: 50-75HZ
Horizontal synchronization range: 30-80KHZ
2. Touch panel
Touch input: any opaque objects(finger, touch pen, etc.)
Touch sensing: infrared
Touch screen resolution: 4096 X 4096
Touch screen type: 2 points
Minimum touch object: >2mm
Responding time: <14ms
Touch durability: > 50,000,000 times
Touch interface: USB interface ×1 type A USB female interface
Light transmittance: ≥94% 100%(MAX)
3. Video
Color system: PAL, SECAM, NTSC, etc.
3D comb filter: yes
3D de-interlace: yes
4. Input and output
VGA input interface: X 1 (D-Sub 15 pin female)
HDMI input interface: X 1 (19P standard HDMI interface)
AV input: X 2 (BNC interface)
AV output: X 1 (BNC interface)
Audio input: X 1 (headphone socket)
Audio output: X 1 (headphone socket)
5. OSD display (screen menu display)
Menu language: Chinese, English
6. Casing
Casing material: steel
Casing color: black
VESA pitch: 100mm X 100mm,Φ4mm
Function buttons: 7 buttons
AC cable length: 1.5 M
7. Others
Power consumption: AC100~240V 1A(MAX)
Standby power consumption: <1W
Speaker power: 2 X 8 Ω / 5 W
Body size: 494mm (L) X 274mm (W) X 42mm (H)
Net weight: 6kg
Package: neutral packaging
Accessories: power adapter, remote control, etc.
Standard bracket: L shape bracket
Application environment: indoor
Working temperature: 0℃ - 45℃
Storage temperature: -20℃ - 45℃
Working humidity: 20% - 80%
Storage humidity: 10% - 95%

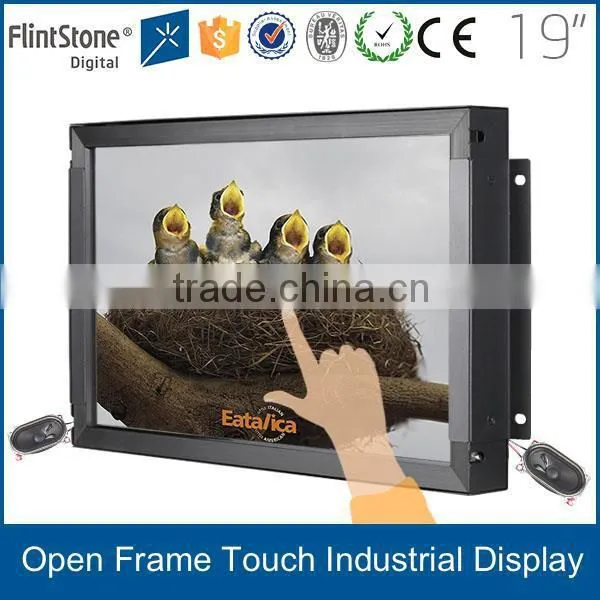

15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen photo:
What is the application of 15", 19",22" kiosk POS VGA AVI open frame touch monitor, industrial LCD monitor frameless touch screen ?
- Industrial display
- Traffic control room
- Video wall
- Corporate board room
- Exhibition center
- Video conference room
- Government bodies
- Product promotion
- Entertainment platform
- Education & trainning
- Military command room
- Public data
More ... ...
- Media companies
- Government
- Schools
- Banks
- Super Markets
- Hospitals
- Restaurants
- Railways stations
- Bus stops
- Airport
- Hotels
More ... ...
Our certifications
Who are we?
Southern Stars Enterprises Co Ltd has focused on the original R&D, OEM & ODM of electronic and functionality designing and manufacturing of over 100 models of HEAVY DUTY digital signage player, 19 inch USB input ir touch screen, PC connnect ir touch frame, heavy duty open frame touch screen monitor (LCD CCTV monitor) and interactive flat panel display (ifpd) since 1996. We have been relentlessly striving to achieve excellent quality level, going to great length to tackle any tiny quality defects.
We provide most durable and stable long hour loop-playing industrial-grade products to the world market of commercial usage; we also provide heavy duty while user-friendly internet digital signage system (with CMS system) and to satisfy our customers with specialist consultancy and sincere service.
Clients & business partners
Trade terms
1. Payment methods: we accept T/T, PayPal , L/C , Western Union
2. Production lead time: 3-4 working days for sample, about 25 working days for massive order.
3. We offer 12 months quality warranty.
Product packing
Why choose us?
1. With rich experience in this field since 1996, we truly understand your need for heavy duty industrial-grade products; all our products are industrial-grade designed, heavy-duty built for non-stop loop-playing 24 / 7 / 36.5. They are durable, stable, solid and tough like a rock.
2. All our products go through 72 hours of high temperature aging test before delivery; defective rate is less than 0.1%. We are the only one manufacturer to apply this rigorous testing method.
3. We always deliver on time as we promise.
4. We are proud to be appointed supplier for many Fortune 500 companies, such as Bosch, ICI Dulux, Toys ”R” Us, Siemens, etc. We are THE specialist; let us serve you with our professional experiences and specialties.
Our sales team
We are ready to serve you !
