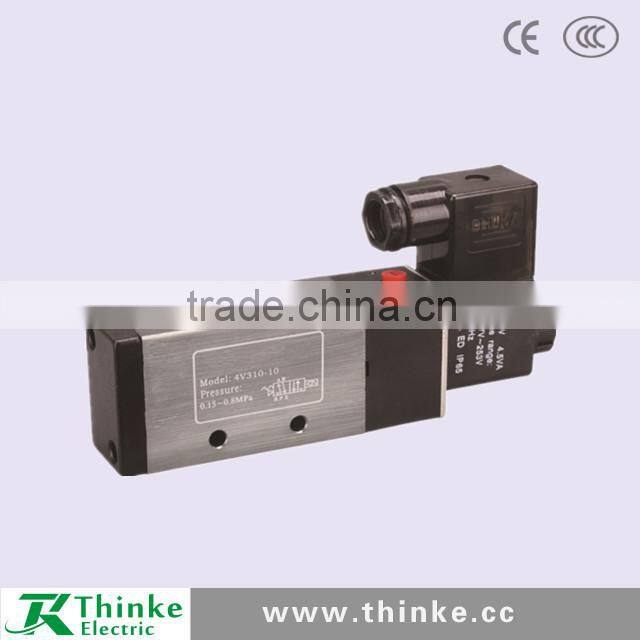

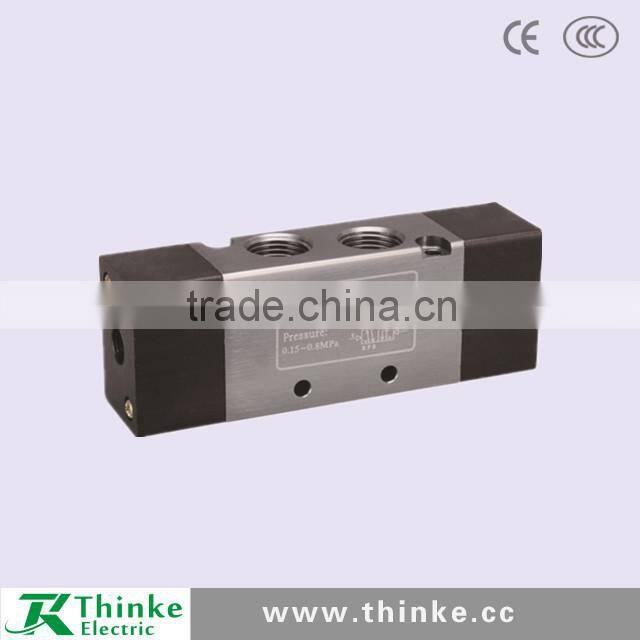

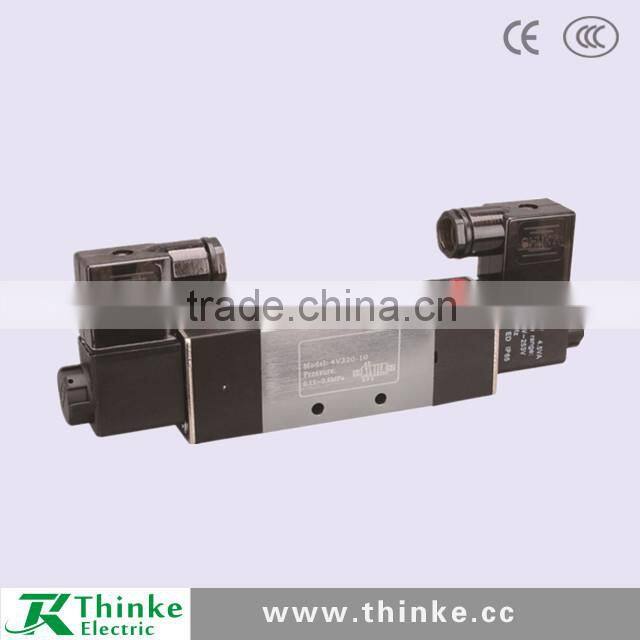

Air Pneumatic Solenoid Valve 2 Position 5 Way 1/4" 4V320-10 Quality Choice
US$ 5 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Regulating
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Way 2 Position Solenoid Valve 1/2 24V DC 4V420-15US$ 10 - 20MOQ: 1 Piece -
4V(A) 400 Series 5 Way Solenoid Valve/Control ValveUS$ 10 - 20MOQ: 1 Piece
-
4V(A)300 Series Solenoid Valve Pneumatic Control ValveUS$ 5 - 15MOQ: 1 Piece
-
4V(A) 200 Series Magnetic Valve Gas Control ValveUS$ 5 - 10MOQ: 1 Piece
-
4V(A) 100 Series 5-nuzzle 2(3)-knob Magnetic Valve Gas Control ValveUS$ 5 - 10MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Regulating
Pressure
Medium Pressure
Power
Pneumatic
Material
Alloy
Temperature of Media
Other, 5~50
Media
Other, 40 Micron Fitered Air
Port Size
PT3/8" PT1/4"
Place of Origin
Zhejiang, China
Model Number
4V(A) 300 Series
Brand Name
OEM
Application
Other
Welcome,my friend!
Glad to introduce Air Pneumatic Solenoid Valve 2 position 5 way 1/4" 4V320-10 and our company to you. If you have any questions, please don't hesitate to ask me.

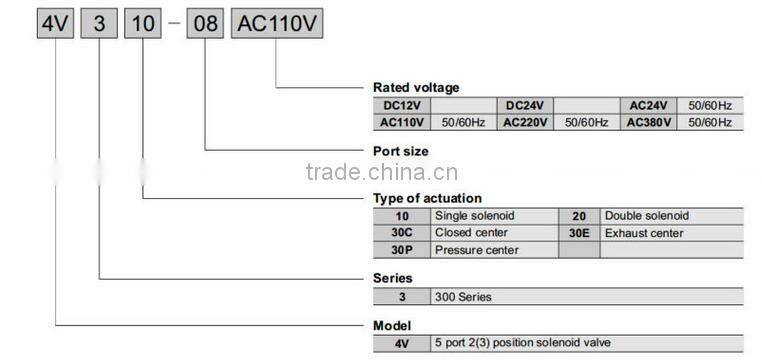

How to order:
Specification:
| Type | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
| 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 | |
| Position Number | Two-position Five-way | Three-postion Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 25mm2(CV=1.40) | 18mm2(CV=1.00) | 30mm2(CV=1.68) | 18mm2(cv=1.00) | ||||||
| Joint Pipe Bore | Air Inlet=Air Outlet=Exhaust=PT1/4" | Air Inlet=Air Outlet=G3/8" Exhaust=PT1/4" | ||||||||
| Working Medium | 40 Micron Fitered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-pressure | 0.15~0.8MPa | |||||||||
| Max. Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50 | |||||||||
| Votagel Range | ±10% | |||||||||
| Power Consumption | AC:5.5VA DC:4.8W | |||||||||
| Insulation & Protection Class | F Class IP65 | |||||||||
| Wring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 3 Cycle Sec | |||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||
