Home > Industrial Equipment & Components > Valve > Ball Valve > 4M Series 4M210-08 Namur Type Solenoid Valve

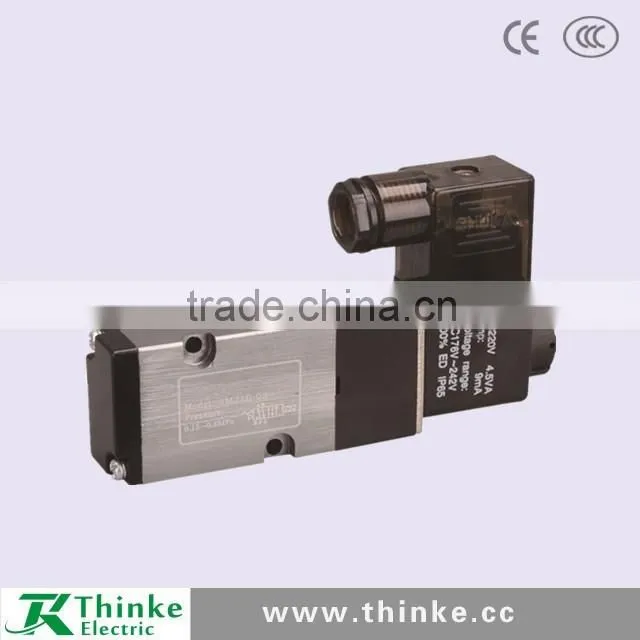

4M Series 4M210-08 Namur Type Solenoid Valve
US$ 5 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Regulating
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-Position Five-Way Pneumatic Control Valve 4A320-10 IP65US$ 5 - 15MOQ: 1 Piece -
4V320-10 Magnetic Valve Gas Control ValveUS$ 5 - 15MOQ: 1 Piece
-
4A320-10 Solenoid Valve Pneumatic Control Valve AC220VUS$ 5 - 15MOQ: 1 Piece
-
Air Pneumatic Solenoid Valve 2 Position 5 Way 1/4" 4V320-10 Quality ChoiceUS$ 5 - 15MOQ: 1 Piece
-
5 Way 2 Position Solenoid Valve 1/2 24V DC 4V420-15US$ 10 - 20MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Regulating
Pressure
Medium Pressure
Power
Pneumatic
Material
Alloy
Temperature of Media
Other, -5~60
Media
Other, 40 Micron Fitered Air
Port Size
M5: M5x0.8 06:1/8''
Place of Origin
Zhejiang, China
Model Number
4M210-08
Brand Name
OEM
Application
Other
Welcome,my friend!
Glad to introduce 4M Series 4M210-08 Namur Type Solenoid Valve and our company to you. If you have any questions, please don't hesitate to ask me.
How to order:
Specification:
| Type | 4M210-06 | 4M220-06 | 4M210-08 | 4M220-08 | 4V310-08 | 4V320-08 | 4V310-10 | 4V320-10 |
| Working Medium | Air(deameter 40mm filter net) | |||||||
| Motion Pattern | Inner Guide Type | |||||||
| Position Number | 5-nuzzle 2-knob | |||||||
| Effective Sectional Area | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(cv=1.67) | ||||
| Joint Pipe Bore | Air Inlet=Exhaust=PT1/8" | Air Inlet=Exhaust=PT1/8" | Air Inlet=Exhaust=PT1/4" | Air Inlet=PYT3/8 Exhaust=PT1/4" | ||||
| Lubrication | No need | |||||||
| Working-pressure | 1.5~8.0Kgf/cm2(21~114Psi) | |||||||
| Max. Pressure Resistance | 12Kgf/cm2(170.6Psi) | |||||||
| Operating Temperature | -5~60(-41~140°F) | |||||||
| Votagel Range | -15%~+10% | |||||||
| Power Consumption | AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA DC243.0W,DC12V:2.5W | |||||||
| Insulation | F CLASS | |||||||
| Protection | IP65 (DIN40050) | |||||||
| Wring Form | Terminal | |||||||
| Highest Action Frequency | 3 Cycle Sec | |||||||
| Shortest Excitation Time | 0.05 Second | |||||||
| Weight | 220g | 320g | 220g | 320g | 310g | 400g | 310g | 400g |
