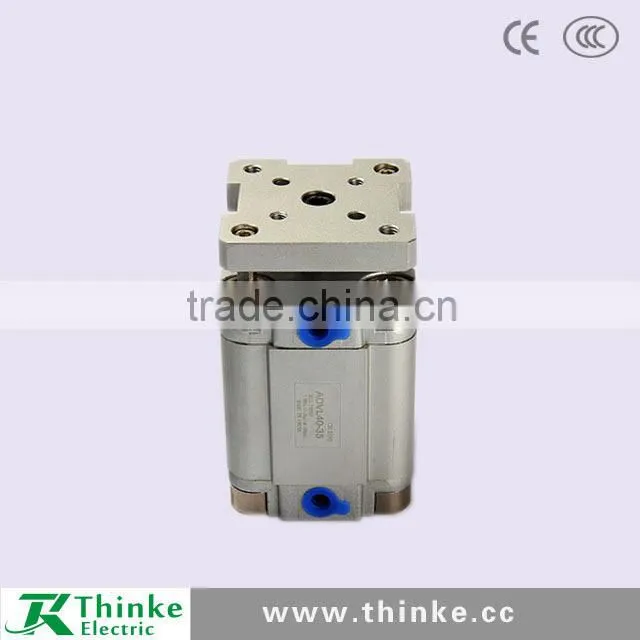

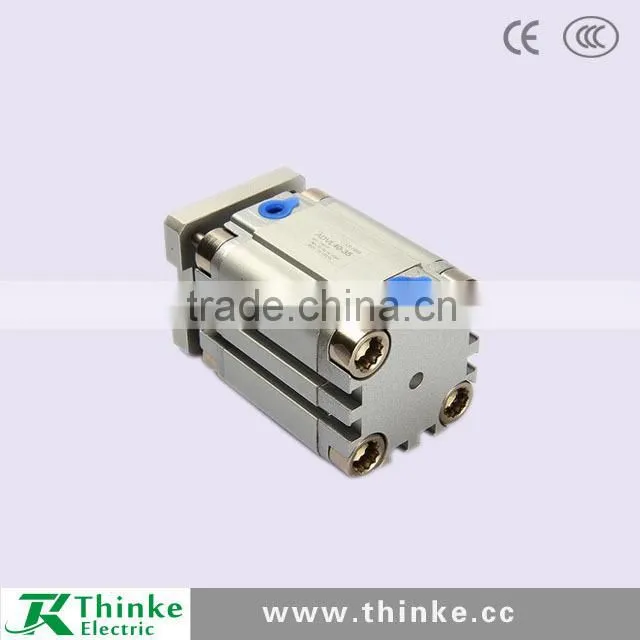

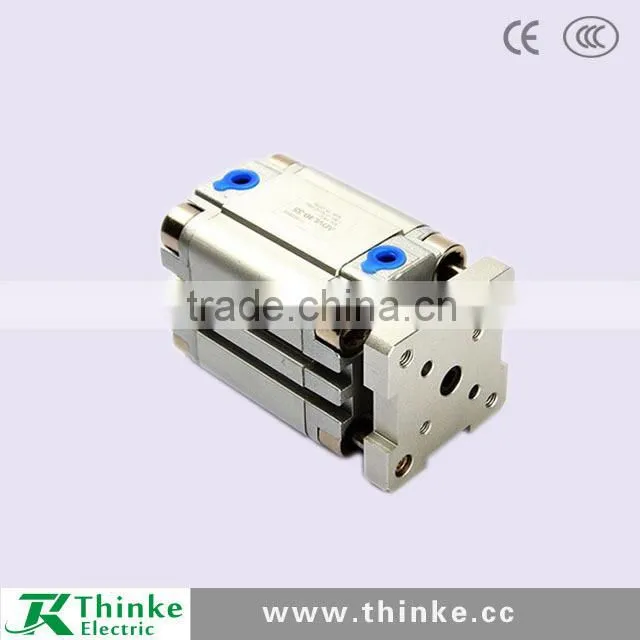

ADVU Series Compact Cylinder Double Piston Rod Pneumatic
US$ 5 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality CA1 Series SMC Type Standard Pneumatic Air CylinderUS$ 14 - 400MOQ: 1 Piece -
CJPB Series Pin Pneumatic Cylinder/ Double Acting Pneumatic CylinderUS$ 3 - 300MOQ: 1 Piece
-
DNC Series ISO15552 Standard Air Cylinder / Festo Type PneumaticUS$ 10 - 200MOQ: 1 Piece
-
MHL Series Pneumatic Gripper CylinderUS$ 58 - 200MOQ: 1 Piece
-
MXQ16 Slide Table PneumaticUS$ 85 - 100MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Piston Cylinder
Power
Pneumatic
Body Material
Aluminum
Maximum Stroke
400mm
Shaft Diameter
16 20 25 32 40 50 63 80
Place of Origin
Zhejiang, China
Model Number
ADVU Series
Brand Name
OEM
Welcome,my friend!
Glad to introduce ADVU Series Compact Cylinder Double Piston Rod Pneumatic and our company to you. If you have any questions, please don't hesitate to ask me.

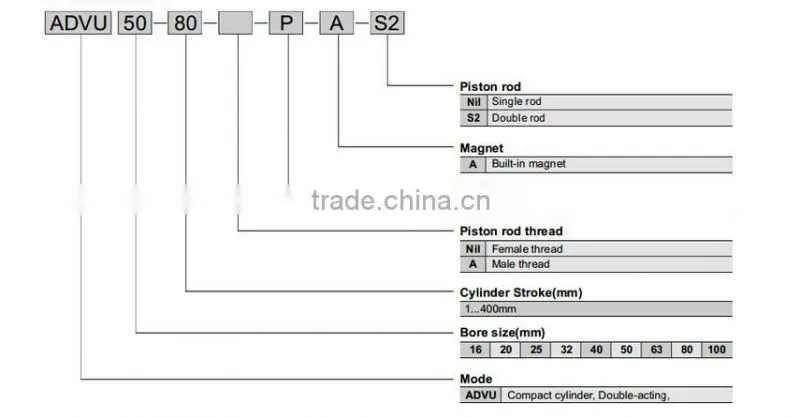

Specification:
| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Fluid | Air | ||||||||||
| Action | ADVU | Double acting, Single/Double rod | |||||||||
| AEVU/AEVUZ | Single acting, Single rod, Spring return/extend | ||||||||||
| Minimum operating presure | Double acting | 0.12MPa | 0.1MPa | 0.08MPa | 0.06MPa | ||||||
| Single Acting | 0.15 Mpa | 0.13MPa | 0.1MPa | 0.08MPa | 0.06MPa | ||||||
| Maximum operating pressure | 1.0MPa | ||||||||||
| Proof preesure | 1.5MPa | ||||||||||
| Ambient and fluid temperature | -20 to 80 ℃(No freezing) | ||||||||||
| Cushion | Rubber bumper | ||||||||||
| Lubrication | Non-lube | ||||||||||
| Piston rod dia. | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | ||||
| Rod end thread | Female thread | M3x0.5 | M4x0.7 | M5x0.8 | M6x1.0 | M8x1.25 | M10x1.25 | M12x1.25 | |||
| Male thread | M6x 1.0 | M8x1.25 | M10x1.25 | M12x1.25 | M16x1.5 | M20x1.5 | |||||
| Port size | M5x0.8 | 1/8 | 1/4 | ||||||||

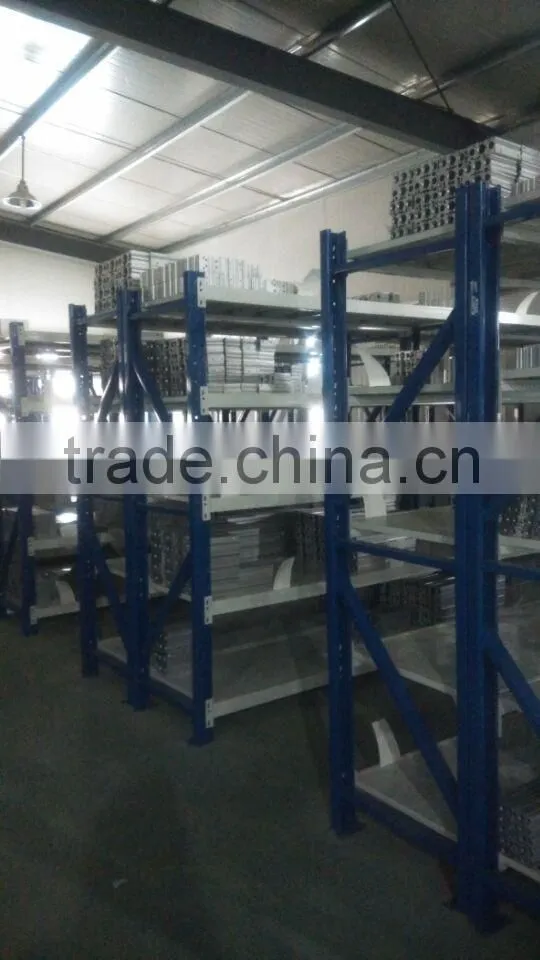

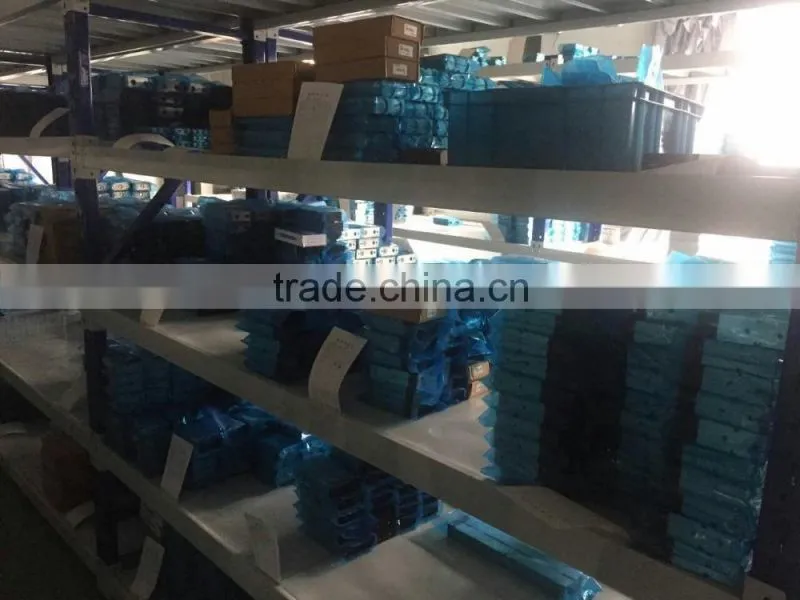

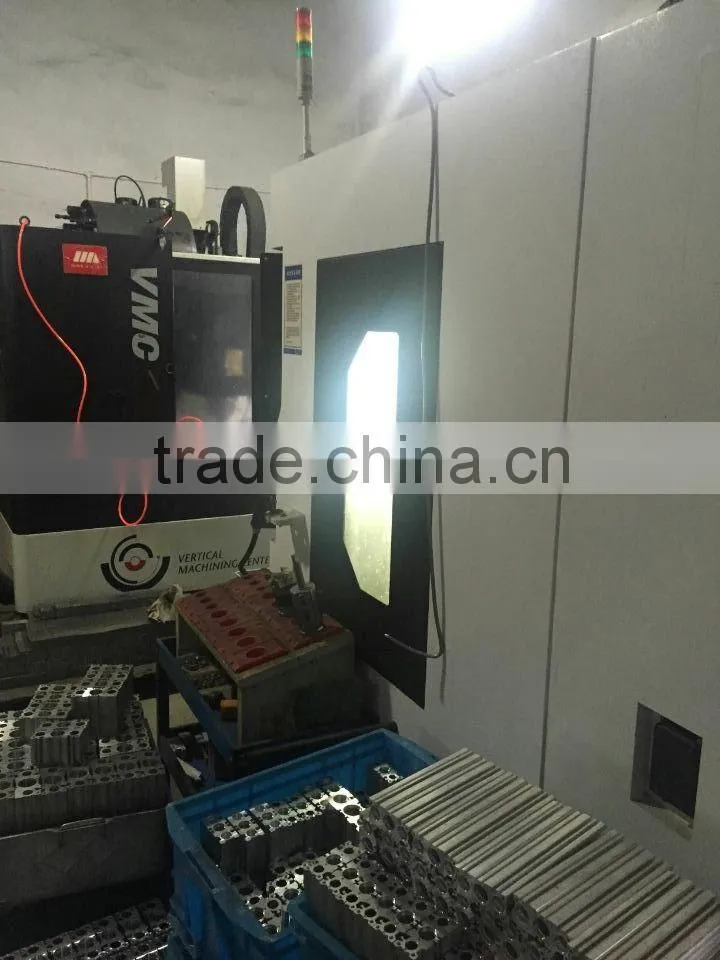

Our factory
If you can cooperate with us, we will be honored and you will benefit from:
1.- Your client satisfied on the right schedule and quality
2.- Your can get good reputation from your market and obtain more orders
3.- Our professional service before and after sale
4.- The reasonable price
5.- Any questions from you are welcome and will be replied in 24 hours
Please contact us for more information.
Our managers will be happy to answer any questions and consider any requests that you may have.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2010
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
