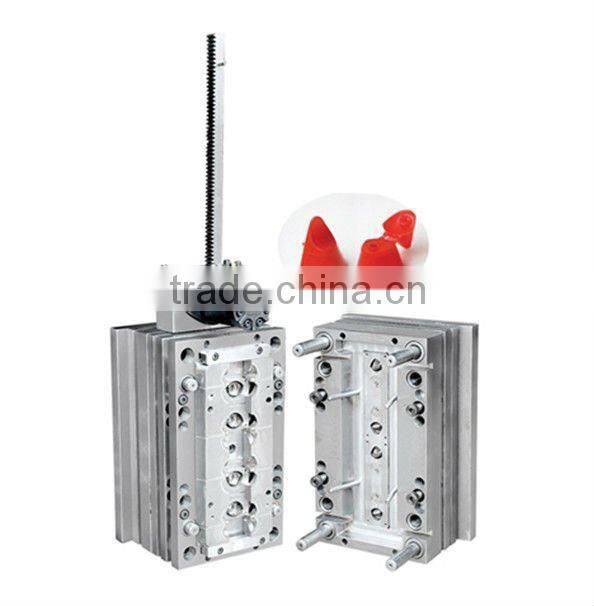

4 Cavity Clamshell Mould

Name: 4 Cavity Clamshell Mould
Brand: JUNENG
SKU: 111443225
Availability: InStock

US$ 1,000 - 4,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JUNENG

Model Number:

4Cavity

Taizhou Huangyan Juneng Machine And Mould Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JUNENG

Model Number 4Cavity

Shaping Mode Plastic Extrusion Mould

Product Material Plastic

Product Household Appliance

Specifications

1.cap mould
2.hot runner mold
3.4 cavities
4.material of p20 and 2316

l Brief Introduction:

keep 500°C about 36 hours in vacuum station to eliminate the stress, make sure the molding board steady after long time use.
Slipper block use HUSKY type, with material of steel P20, which is highly anticorrosion, all the move parts used advanced ion nitrating treatment, the surface hardness is HRC48-52.

Spare parts(screw, coin and cavity):

All uses material steel 2316, with high anticorrosion and hardness is HRC46-48.

Hot Runner: use SKH61 temperature resistance material, with hardness HRC≥46

The hot nozzle use Italy ROTFIL or German HOTSET heating coil to make sure the quality.
Plastic injection opening use high hardness QBE2 Beryllium copper, with good conduct heat, anti wear and standy.
Plastic injection opening heat insulation cap use American Dupont.
Piston and cylinder use import wear ring, the piston use material 2136, the sealing element used import sealing element, with materialof poly four vinyl chloride.
