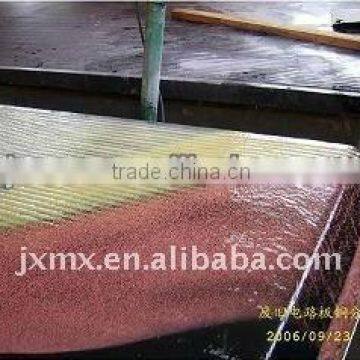

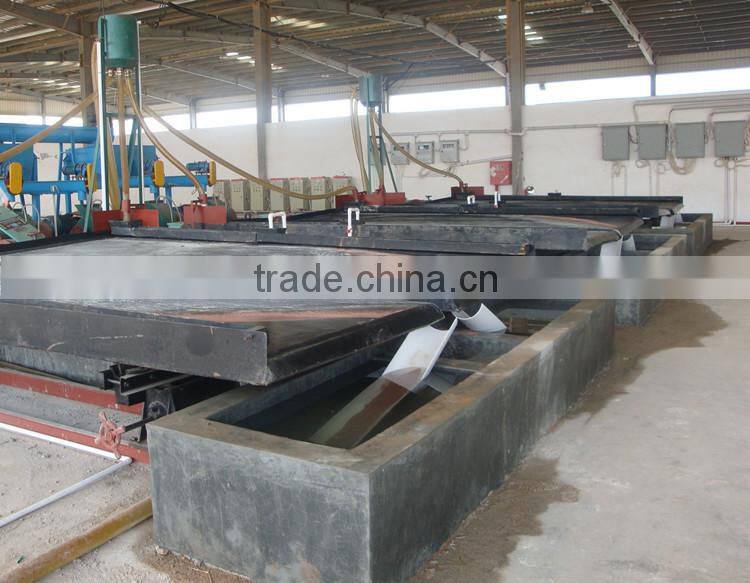

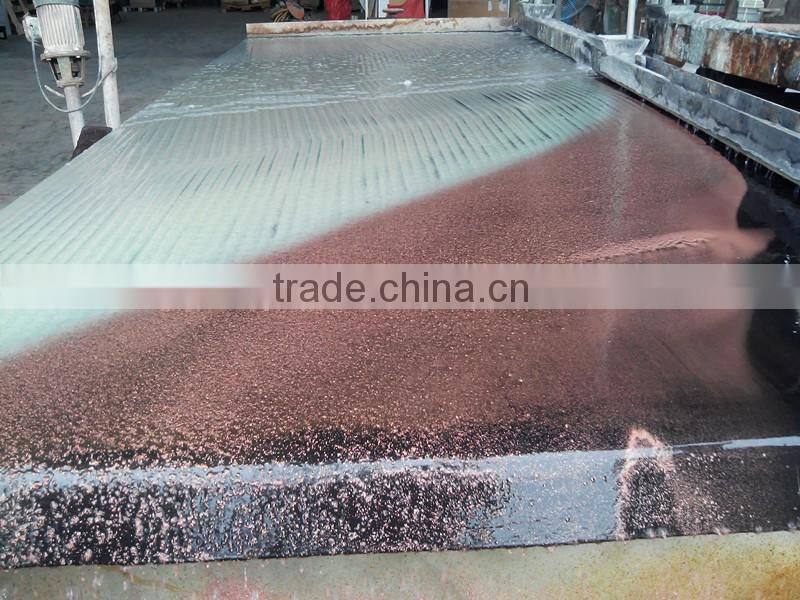

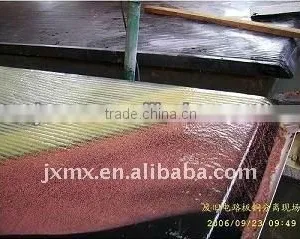

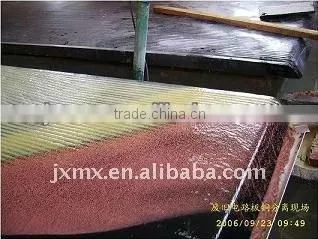

High recovery rate gravity separator table for scrap copper recycling
6S SHAKING TABLE INTRODUCTION
6S Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in the selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Shaking table can be used in the ore-dressing practices, such as rough selection, elaborate selection, and scavenging. It also can select and sort coarse sand (2-0.5mm), fine sand (0.5-0.074mm), slime (-0.074) and other different particle sizes. What is more, shaking table can be used for sorting iron, manganese ore and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm. Among a variety of shaking tables, the 6s shaking table produced by our company is all the rage among ore beneficiation devices.
MAIN STRUCTURE
A shaking table is manly composed of eight components, which are table head, electric motor, slope control, deck, feed box, water tank, rifle spokes and lubrication system. The vertical and reciprocating motion of the deck is driven by the crank-connecting actuator. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod makes a downward movement, the toggle plate pushes back shaft and reciprocating lever backward. meanwhile, through the tension of spring, it drives the deck to move backward, because the deck is connected with the reciprocating lever by linkage seat. When the rod moves upward, through the force from spring tension, the deck makes a forward movement.

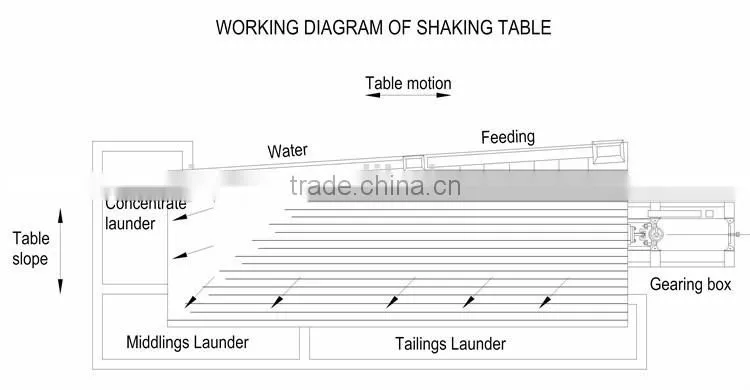

WORKING PRINCIPLE OF SHAKING TABLE
The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. With the rod moving down, minerals on tilting deck installed by rifle spokes go into the feed box. meantime, water stored in the water tank impacts the minerals laterally. So by the means of shaking and washing, minerals of different sizes and densities flow from discharge outlets, which separate concentrates and tailings clearly and efficiently. Since the mining table concentrators have been upgrading in line with advanced technologies, their production and accuracy have improved significantly.
6S SHAKING TABLE MAIN TECHNICAL PARAMETER
| Model | 6-S 7.6 | 6-S 4.08 | 6-S 1.95 | 6-S 0.5 | ||||
| Deck type | Coarse ore Deck |
Fine sand Deck |
Slime Deck | Three different kinds of decks are available | ||||
| Beneficiation Area (m 2 ) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||
| Deck Size | Length (mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |
| transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 | ||
| Maximum Feeding Size (mm) | 2 | 0.5 | 0.15 |
Sand -2 Slime -0.1 |
Sand -2 Slime -0.074 |
Sand -2 Slime -0.074 |
||
| Feeding Amount | 30-60 T/d | 10-20 T/D | 15-25 T/D | 0.4-1.5 T/h | 0.3-0.8 T/h | 0.05-0.2 T/h | ||
| Feeding Density (%) | 25-30 | 20-25 | 15-25 | 10-30 | ||||
| Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
| Frequency (r/min) | 45-48 | 48-53 | 50-57 | 210-320 | 250-450 | 280-460 | ||
| Water consumption | 80-150 T/d | 30-60 T/d | 10-17 T/d | 0.3-1.5 T/h | 0.2-1 T/h | 0.1-0.5 T/h | ||
| Transverse slope of Deck | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0-10° | 0-8° | 0-10° | ||
| Longitudinal slope of Deck | 1.4 | 0.92 | ------ | ------ | ------ | ------ | ||
| Groove Shape of Deck | Rectangular | Saw-tooth | Triangle | AvailableRectangular, Saw-tooth, Triangle | ||||
| Motor Power (Kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | ||
| Transmission Mechanism | Eccentric linkage | |||||||
Company Profile
Jiangxi Mingxin Metallurgy Equipment Co., Ltd.(The former is Shicheng Mingxin Equipment Factory) is dedicated to engineering and manufacturing eco-friendly waste recycling machinery and mining Equipment. Covering an area more than 60 acres, our company is a national high-tech enterprise, Comprehensive quality management standard, measuring a qualified provincial enterprises, Jiangxi Province famous trademark, passed ISO9001: 2000 quality system certification standards, with independent import and export rights, lists as the one hundred enterprises in Ganzhou city,large taxpayer as well as a contract-honoring and faith-keeping AAA enterprise.
Our company sticks to combine science research and practice to engineer and develop high efficiently energy-saving new product.Most products were awarded national patents and sold around the world receiving a good reputation.
MingXin people are expecting cooperation and mutual development from customers domestically and abroad based on its best quality products and reasonable price as well as sincerely perfect service through enterprising spirit and technical innovation together with consolidated unity and relentless exploration.
We can provide the following guarantee
1, competitive price and perfect quality
2, the fast delivery time
3, influential production in China
4, fast after-sales service
