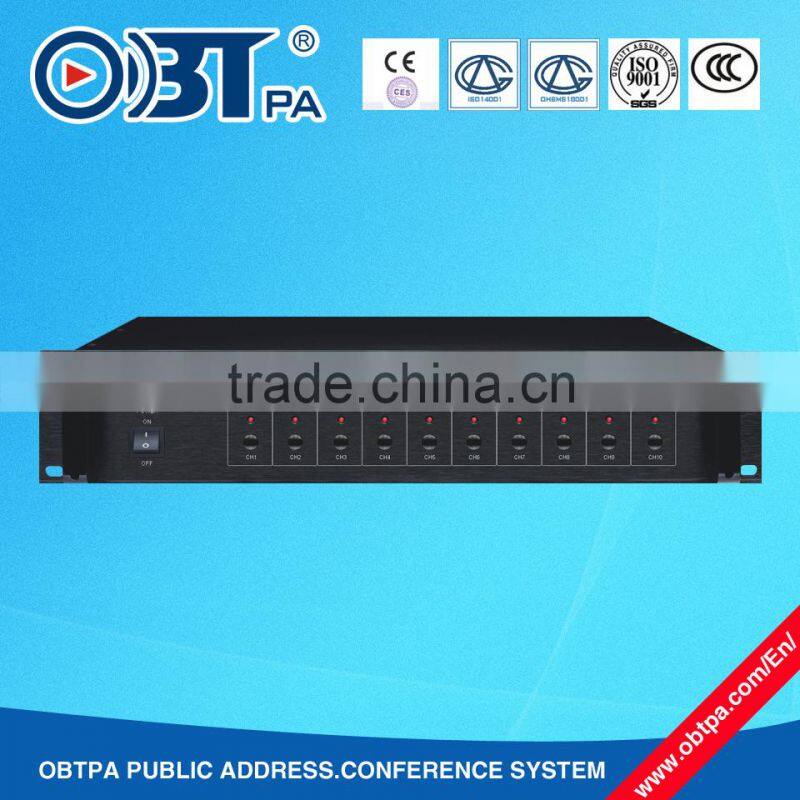

OBT-8011 factory price matrix selector with 100V for PA system
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
Standard Rack Design (2U), black brushed aluminum faceplate, humane brushed, sophisticated technology,
filling with high-grade temperament;
Microcomputer control, touchable keys, or PC switching signal strobe output partition;
There are 2 channels of amplifier inputs, path A controls partition 1-5, channel B controls partition 6-10,can be chosen;
You can use indicator to determine which zone is working ,light will change to pink from blue when work;
With memory function, memories are not lost when power is off, automatically strobe when utility power is restored.
Technical parameters:
Model |
OBT-8011 |
Input |
100V |
Output |
100V |
Frequency Response |
20Hz~20KHz |
Relay |
DC 24V |
Power Consumption |
20W |
Standby Power Consumption |
8W |
10 Upper Partition Control Communication Interface |
1 Group (25p) |
10 Down Partition Control Communication Interface |
1 Group(25p) |
Weight |
7Kg |
Dimensions |
545×525×170mm |
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
