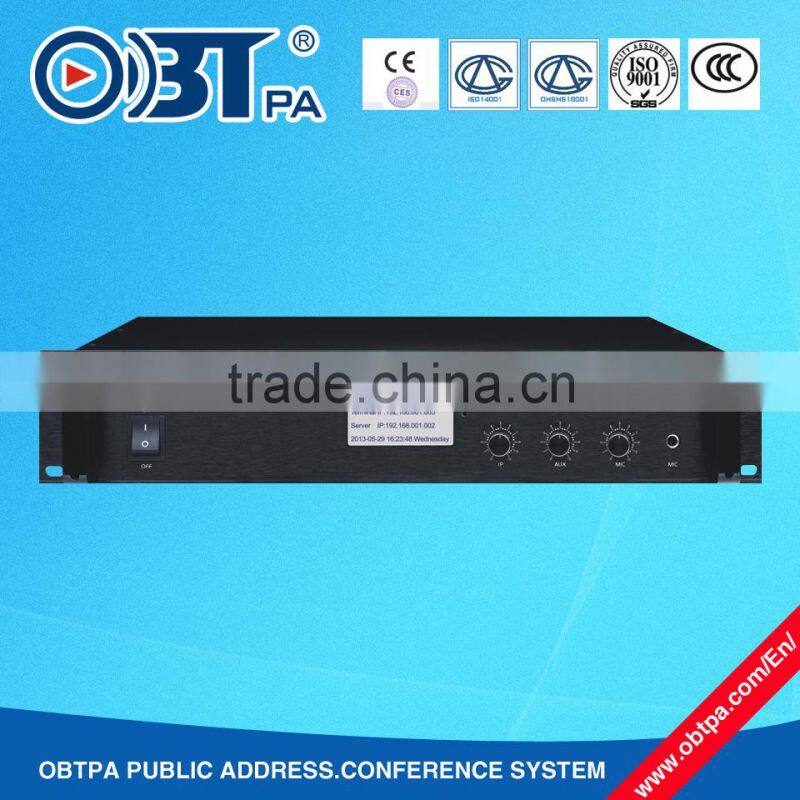

OBT-NP6060 digital ip network voltage amplifier for pa system
Application:
Used for every public place: Shopping center, School, Airport, Raillway stataion, Building, Mining pool,
Residential area, highway, toll plaza,Factory,Supermarket,Parking,Stadium,Mountain etc.
Features:
Standard Rack Design (2U), black brushed aluminum faceplate, humane pumping hands, sophisticated technology, filling the high-grade temperament;
3.5-inch TFT color screen display, screen-friendly, equipped with infrared remote control, clear display , simple operation ( fast forward / rewind / pause / [AB] repeat / Volume key operation, volume [+] [-] regulation );
Easy to operate, without manual settings, connect automatically to server once there is network.
Support wired network and WIFI wireless internet access modes;
Supporting two way accesses the network through cable or WiFi.
Supporting four ways for tracks : the server, local memory, U disk and line in.
Automatically complete the synchronization between timing program of terminal
and the server's , if server's programs change, there will be an automatic synchronization between the two parties
Two kinds of working modes: online and offline, still can perform timing tasks
when there is network failure
Supporting incoming call of the unicast, multicast and all broadcast in LAN
The device uses an embedded linux technology and DSP audio processing technology design; using industrial-grade chips;
Built-in Network IP decoding module, support TCP / IP, UDP, IGMP (multicast) protocol, achieve network transmission of the 16 CD-quality stereo music signal;
Built-in 60W/150W/250W/350W/450W/550W/650W fixed-resistance (4-16Ω), constant-voltage (70V, 100V) power amplifier output, strong power, free matching;
2 channels of lines (AUX) and one channel of microphone (MIC) input, achieve external audio input and implementation of local emergency broadcast input ,with separate volume control;
1 channel of audio signal auxiliary output, facilitate expansion to external power amplifiers ;
Intelligent power management, when there is no music or call, the device will automatically cut off the main power supply and get into standby mode, the standby power consumption is less than 3W, meet national environment certification standards;
Local MIC signal priority auxiliary input AUX and network background music signal; auxiliary input AUX and network background music signal is at the same level, no priority; network emergency alarm signal has higher priority than local MIC, auxiliary input AUX and network background music signal;
Can connect to the Ethernet wherever there is a Ethernet port, support cross-segment and cross-routing.
Technical parameters:
Model |
OBT-NP6060/NP6090/NP6150/NP6250/NP6350/NP6450/NP6550/NP6650 |
Power Supply |
AC220V |
Network Interface |
Standard RJ45 |
Transmit Speed |
10Mbps/100Mbps |
Protocol Support |
TCP/IP,UDP,IGMP(group broadcasting) |
Audio Format |
MP3 |
Audio Model |
16 digit stereo CD tone |
Sample Rate |
8K~96K |
bit rate |
8K~512Kbps |
EMC Input Sensitivity |
775mV |
AUX Input Sensitivity |
550mV |
MIC Input Sensitivity |
10mV |
Treble boost and Attenuation |
±10.5dB |
Bass boost and Attenuation |
±10.5dB |
Power Consumption |
60W/90W/150W/250W/350W/450W/550W/650W |
Standby Power Consumption |
<13W |
Frequency Response |
60Hz~18KHz +1/-3dB |
THD |
THD≤0.1% |
Noise Signal Ratio |
≥85dB |
Output Method |
4~16Ω fixed resistance output,70V/100V fixed voltage output |
Protection |
High temp, overload and short-circuit |
Working Temperature |
0℃~60℃ |
Working Humidity |
10%~90%Relative humidity, non condensing |
Dimensions |
525×525×170mm |
Weight |
4KG/6KG/15KG/16KG/18KG/20KG/27KG/30KG |
Lead time:
Sample: In stock
Mass production: 5 working days
Company Pictures 1 for office:
Company Pictures 2 for workshop:
Certification 1 for License and Pantents:
Certification 2 for Products:
Real Projects Connection Diagram:
