OBT-9801 OBTPA IP Network Terminal Controller for Public Address System

OBT-9801 OBTPA IP Network Terminal Controller for Public Address System thumbnail-1
OBT-9801 OBTPA IP Network Terminal Controller for Public Address System photo-1
US$ 50 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OBPTA
Model Number:
OBT-9801
Contact Supplier Request Quote Chat Now
Shenzhen OBTPA Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OBPTA
Model Number OBT-9801



OBT-9801 OBTPA  IP Network terminal controller for Public address system

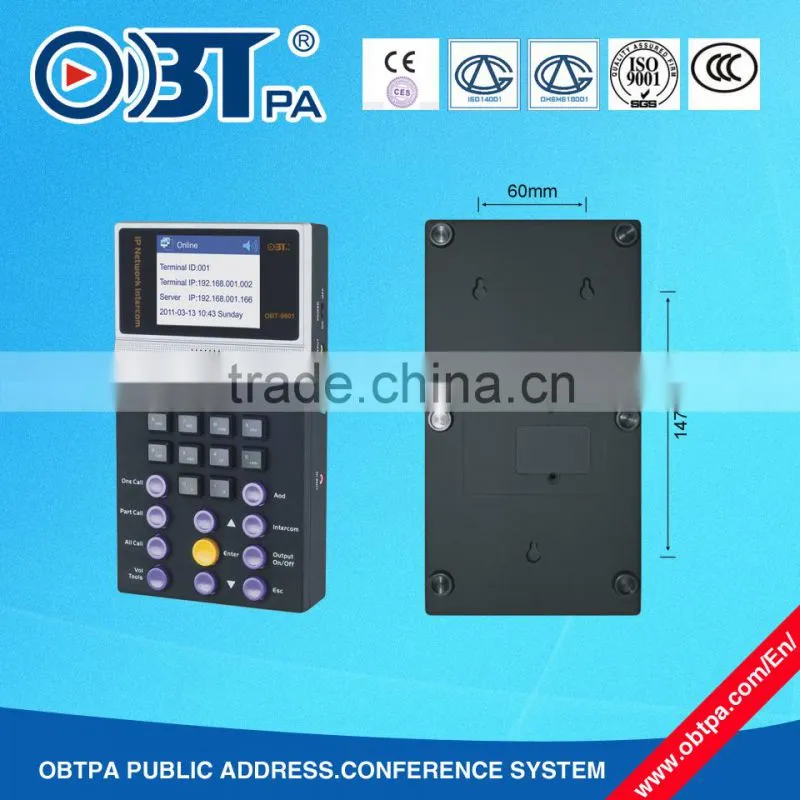

Product picture:

OBT-9801 OBTPA IP Network terminal controller for Public address system

Application:



Professional Wall-mounted network audio decoding device, built-in digital fixed resistance amplifier;
Install at room which require position control, classrooms, rooms and other places, directly connected tothe speaker circuit fixed resistance.



Features:



1. tandard wall-mounted design, black brushed aluminum panels, exquisite appearance, sophisticated technology, filling the high-grade temperament;
2. 3.5-inch TFT color screen display, screen-friendly, equipped with infrared remote control, display clearly, simple operation ( fast forward / rewind / pause / [AB] repeat / Volume key operation, volume [+] [-] regulation );
3. Easy to operate, without manual settings, connect automatically to server once there is network.

4. Support wired network and WIFI wireless internet access modes;
5. Supporting two way accesses the network through cable or WiFi.

6. Supporting four ways for tracks : the server, local memory, U disk and line in.

7. Automatically complete the synchronization between timing program of terminal

and the server's , if server's programs change, there will be an automatic synchronization between the two parties

8. Two kinds of working modes: online and offline, still can perform timing tasks

when there is network failure

9. Supporting incoming call of the unicast, multicast and all broadcast in LAN
10.  The device uses an embedded linux technology and DSP audio processing technology design; using industrial-grade chips;
11.  Built-in demand acquisition module, achieve real-time on-demand programming function;
12.  Built-in 2 × 10W stereo digital fixed resistance power amplifier;
13. 1 channel audio auxiliary output, connect to external expansion amplifier;
14.  1 channel line input, achieve local PA;

15. Built-in three signal priority function adjustment:
A, the local signal priority: local input signal priority, and the priority level can be preset, online music play as background music;
B, Emergency Broadcast Priority: When Emergency broadcast priority input, the radiosignal will automatically turn off the local input signal and play network emergency broadcast signal;
C, forced local signal priority: In the case ofan emergency, can initiate the forcedlocal signal priority to achieve artificial local emergency broadcast function;
16. Standby power is less than20W, CCC and CEcertification;

17. Can connect to the Ethernet wherever there is a Ethernet port, support cross-segment and cross-routing.



Technical Parameters:

Model

OBT-9801

power supply

~AC220V 50HZ

Protocol Support

TCP/IP,UDP,IGMP(group broadcasting)

Communication interface

RJ45

Line input

500mV

Line output

1000mV
S/N ratio



≥97dB

Frequency response

40-18000Hz

THD

≤0.1%

Dimensions

230*126*47mm

 Weight



 0.47kg





Lead time:

Sample: In stock

Mass production: 5 working days





Company Pictures 1 for office:

 OBT-9801 OBTPA IP Network terminal controller for Public address system





Company Pictures 2 for workshop:

OBT-9801 OBTPA IP Network terminal controller for Public address system



Certification 1 for License and Pantents:

OBT-9801 OBTPA IP Network terminal controller for Public address system



Certification 2 for Products:

OBT-9801 OBTPA IP Network terminal controller for Public address system







Real Projects Connection Diagram:

OBT-9801 OBTPA IP Network terminal controller for Public address system

How to start to make business with us?

OBT-9801 OBTPA IP Network terminal controller for Public address system



Service:

Good Service:

1. Professional sales reply you enquiry in 24Hrs

2. Feedback of complaint in 24Hrs

3. OEM/ODM are welcomed

4. 2 years Warranty



Warranty:

1. All products have been strictly Quality Checked before packing.

2. All products have been well packed before shipping.

3. All products with 2 years warranty.



After Sales Service:

1. We are always online to solve all your request.

2. Any faulty product, we can send replacement to you freely

3. To ensure your receive the order tax free upon import, we are willing to declare lower value.



Shipping:

OBT-9801 OBTPA IP Network terminal controller for Public address system



How to contact with us:

OBT-9801 OBTPA IP Network terminal controller for Public address systemOBT-9801 OBTPA IP Network terminal controller for Public address system
