No-pollution!
We provide Total Solution for lead acid battery Recycling, Car battery Breaking & Separating system, battery Cutter, Pastic Washing, and Lead Separating, Lead Drying & Melting.
Auto Battery recycling plant is based on the advanced and reasonable mechanism process that can separate the LEAD and plastic from acid-lead battery. The recovery of lead can be 97%.

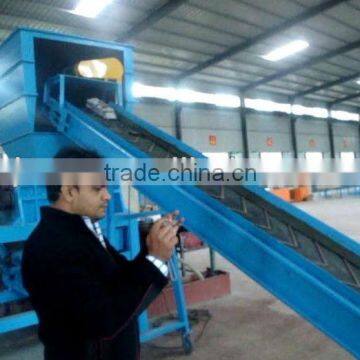

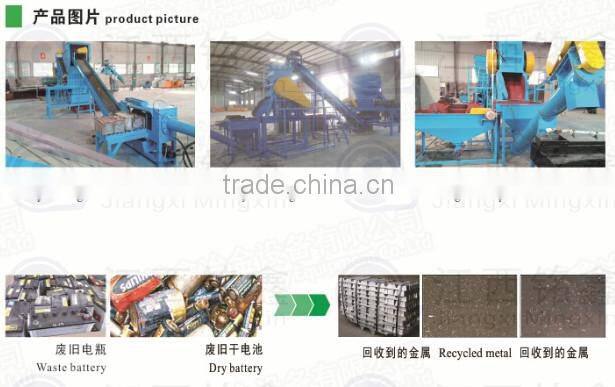

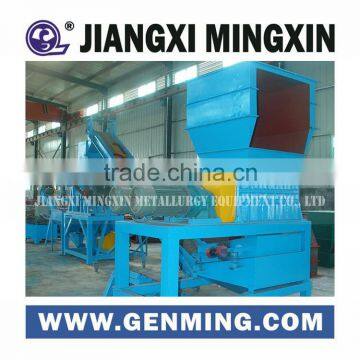

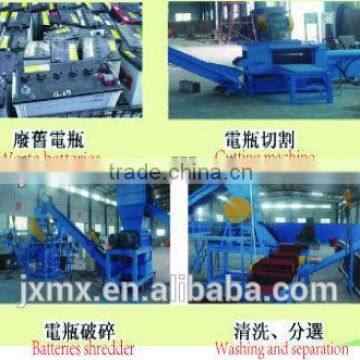

This battery recycling plant is working process from inside of waste battery to recycle LEAD and plastic, consists of 1 battery cutter, 1 intelligent shredder MX800, 1belt conveyor, 1 special granulator, 1 feeding slot, 1,plastic washer 1 spiral chute, 1 vibrating screen, 1 metal separator.
One completed battery recycling plant consisting of follow steps :
1. Battery breaking and separating
2. Paste desulfurization
3. Lead melting and reduction operation of paste
4. Melting of grid,
5. Refining crude lead
6. Slag treatment
7. Plastic cleaning
8.Gas cleaning system
9. Acid neutralize and Effluent treatment
Waste lead acid battery resource recycling equipment
2. Technical Specifications:
Model No. MX 800
Process Capacity (kg/hr) 1000kg
Dimension (L*W*H)/m 24x6x3
Power Consumption (kw) 380v/102KW
Operators 3
Metal Recovery Rate 97%-99%
Metal Content of Non-metal Powder <1%
Granularity of Metal (mm) 2-40mm
Granularity of Non-metal (mm) 2-40mm
In order to make your business efficiency, please tell us following information:
1. Materials to be processed and its max. & min. size, image available?
2. Capacity (per hour or day)?
3. Final Output size?
4. Voltage in your country(price here based on 380v,50hz,3phase )?
