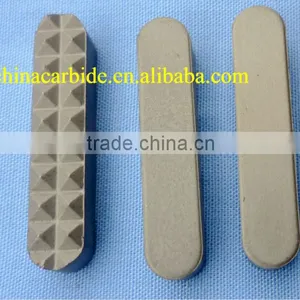

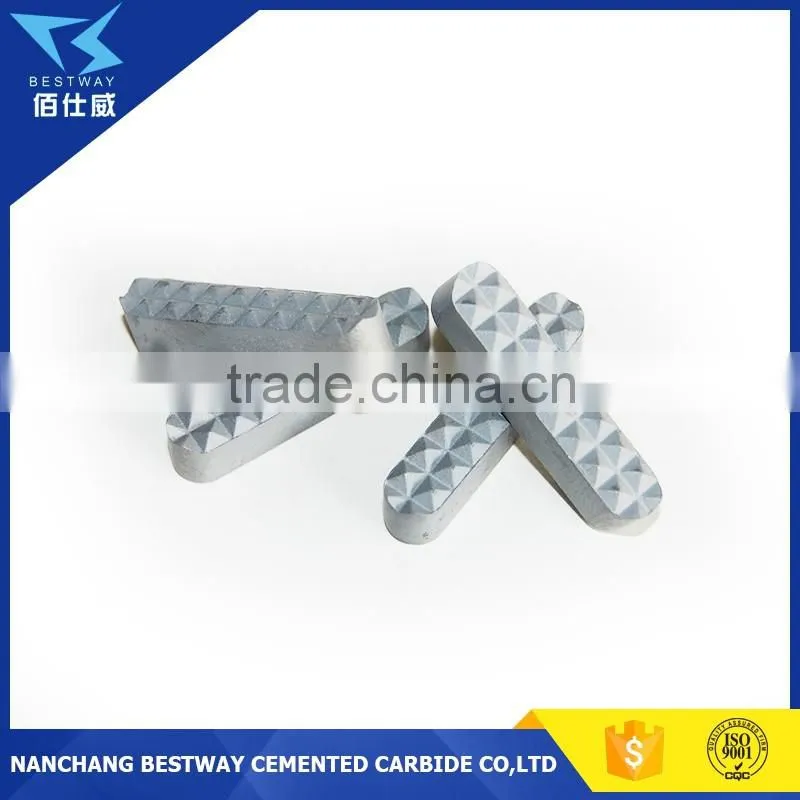

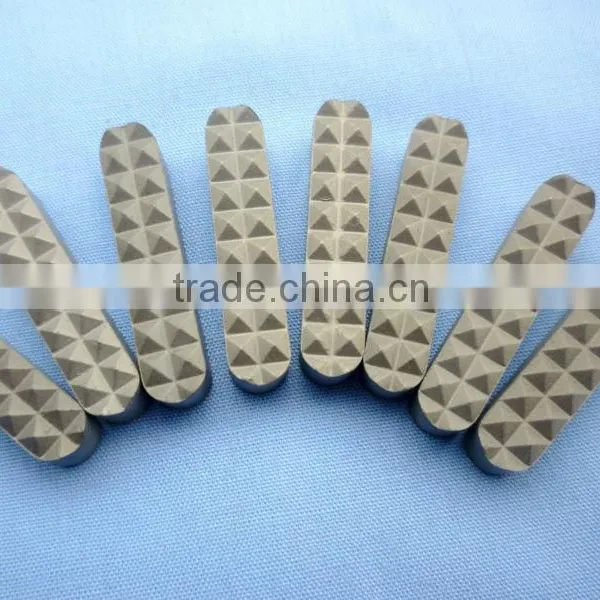

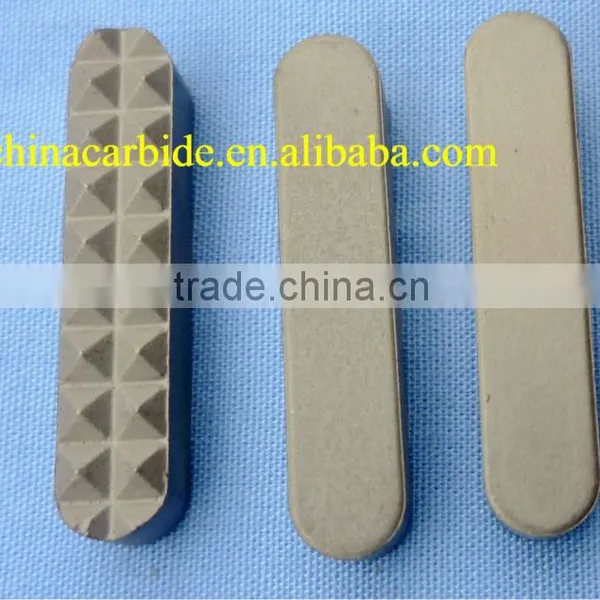

Tungsten carbide gripper inserts for chuck jaw (christensen)
- 5000 Kilogram / Kilograms per Month
- Shanghai Nanchang Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- CD-650 High Precision Tungsten Carbide Blank for Carbide Punches Die Inserts
- Yg20c Tungsten Carbide Metal Forming Dies for Cold-Forming Screws Bolts and Rivets
- Bk15/Bk20 Customizable Tungsten Carbide Seaming Roller Dies for Can Sealing Side
- YG25/GT55 tungtsen carbide punching dies for bolt
- K10/K20 Tungsten Carbide Valve Ball with Hollow Hole for Valve Pumps
- Original Material Tungsten Carbide Inlet Seats for Air-Operated Airless Spray Pumps
Product Details
Place of Origin: | Jiangxi, China | Brand Name: | BWCARBIDE | Model Number: | CA3 |
Alloy Specification: | BW8 | Particle: | Sub-fine Grain Size |
Product Description
Carbide Inserts for Hydraulic and Mechanical chucks
Tungsten Carbidde Gripper Insert
Gripper Teeth
Caribde gripper inserts are our featured products for worldwide markets.
Steady performance, long service time and used in different ways for mining field.
Like coal mining, stone mining and oil mining.
TYPE NO. | SPECIFICATIONS | ||||||
SIZES(mm) Length*Width*Thickness | WEIGHT Grams/pc | MATERIAL | DENSITY g/cm3 | TRS N/mm2 | HARDNESS HRA | POROSITY | |
CA1 | 21.7*9.0*7.4 | 15.5 | VIRGIN | 14.6-14.75 | ≥1850 | ≥89 | A02 B00 C00 |
CA2 | 28.8*9.05*6.4 | 20.2 | VIRGIN | 14.3-14.6 | ≥2350 | ≥86.5 | A02 B00 C00 |
CA3 | 28.8*6.2*6.35 | 14.4 | VIRGIN | 14.6-14.75 | ≥1850 | ≥89 | A04 B00 C00 |
Interior packaging: plastic or paper box interior,
Exterior packaging: carton or wooden case.
Also could be customized.
