Home > Metallurgy, Mineral & Energy > Wear Resistant Material > Tungsten Carbide Gripper Inserts for Chuck Jaw(longyear)

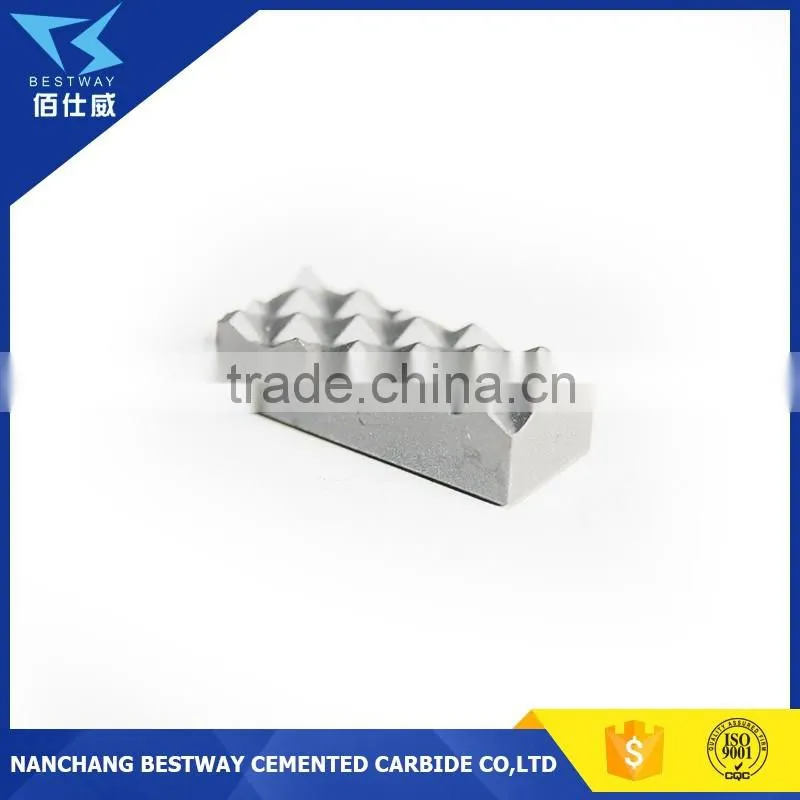

Tungsten Carbide Gripper Inserts for Chuck Jaw(longyear)
US$ 0.8 - 1.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
BWCARBIDE
Model Number:
CA1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Nanchang Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Tungsten Carbide Jaw Inserts for Chuck Jaws Used in Diamond Core DrillingUS$ 1.00 - 1.02MOQ: 1000 Pieces -
Good Hardness and Wear-resistance Carbide Balls for Bearing in BlankUS$ 1 - 2MOQ: 100 Pieces
-
Tungsten Carbide Tire Stud With Spike Pins for Anti-skipUS$ 45 - 55MOQ: 1 Kilogram
-
Tungsten Carbide Spheres Made in ChinaUS$ 55 - 60MOQ: 1 Kilogram
-
Tungsten Carbide Gripper Inserts for Chuck JawUS$ 1 - 1.2MOQ: 10 Pieces
Place of Origin
Jiangxi, China
Brand Name
BWCARBIDE
Model Number
CA1
Alloy Specification
BW8
Particle
Sub-fine Grain Size
Product Description
Carbide Inserts for Hydraulic and Mechanical chucks
Tungsten Carbidde Gripper Insert
Gripper Teeth
Caribde gripper inserts are our featured products for worldwide markets.
Steady performance, long service time and used in different ways for mining field.
Like coal mining, stone mining and oil mining.

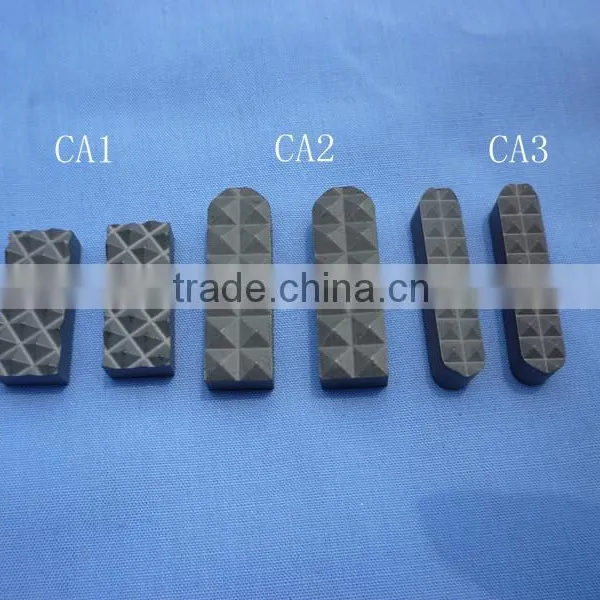

| TYPE NO. | SPECIFICATIONS | ||||||
| SIZES(mm) Length*Width*Thickness | WEIGHT Grams/pc | MATERIAL | DENSITY g/cm3 | TRS N/mm2 | HARDNESS HRA | POROSITY | |
| CA1 | 21.7*9.0*7.4 | 15.5 | VIRGIN | 14.6-14.75 | ≥1850 | ≥89 | A02 B00 C00 |
| CA2 | 28.8*9.05*6.4 | 20.2 | VIRGIN | 14.3-14.6 | ≥2350 | ≥86.5 | A02 B00 C00 |
| CA3 | 28.8*6.2*6.35 | 14.4 | VIRGIN | 14.6-14.75 | ≥1850 | ≥89 | A04 B00 C00 |

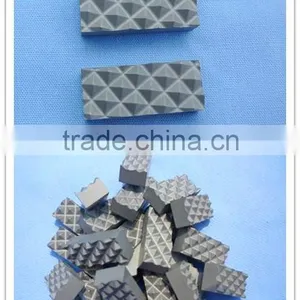

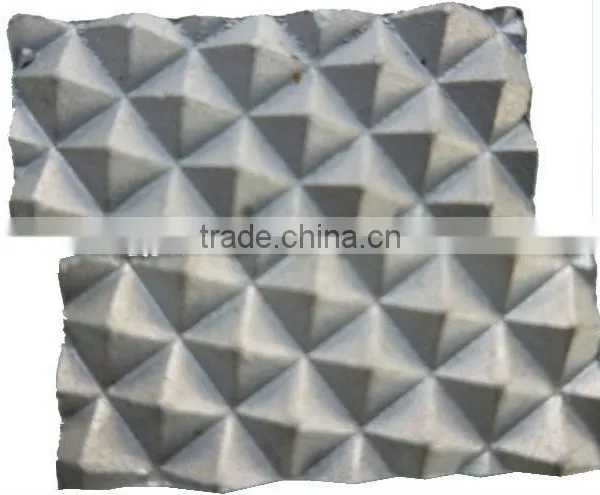

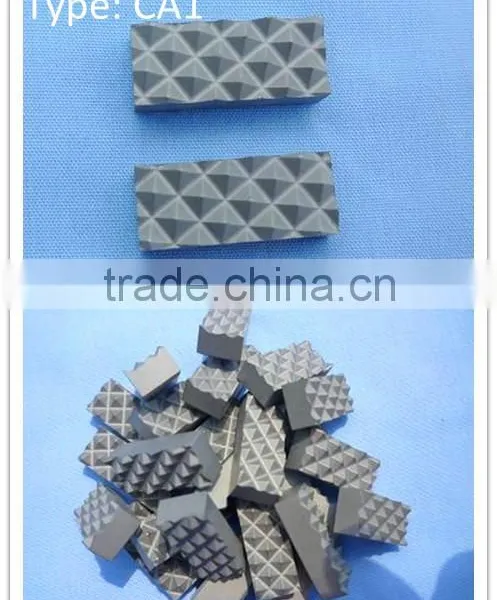

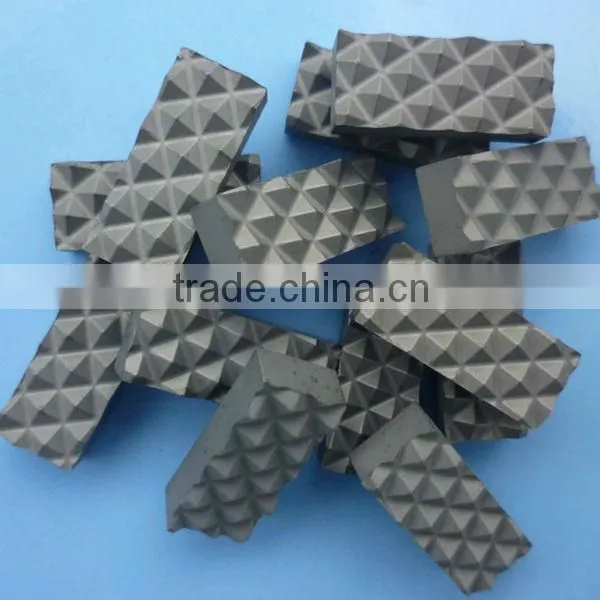

Photos in Details
Packaging
Interior packaging: plastic or paper box interior,
Exterior packaging: carton or wooden case.
Also could be customized.
